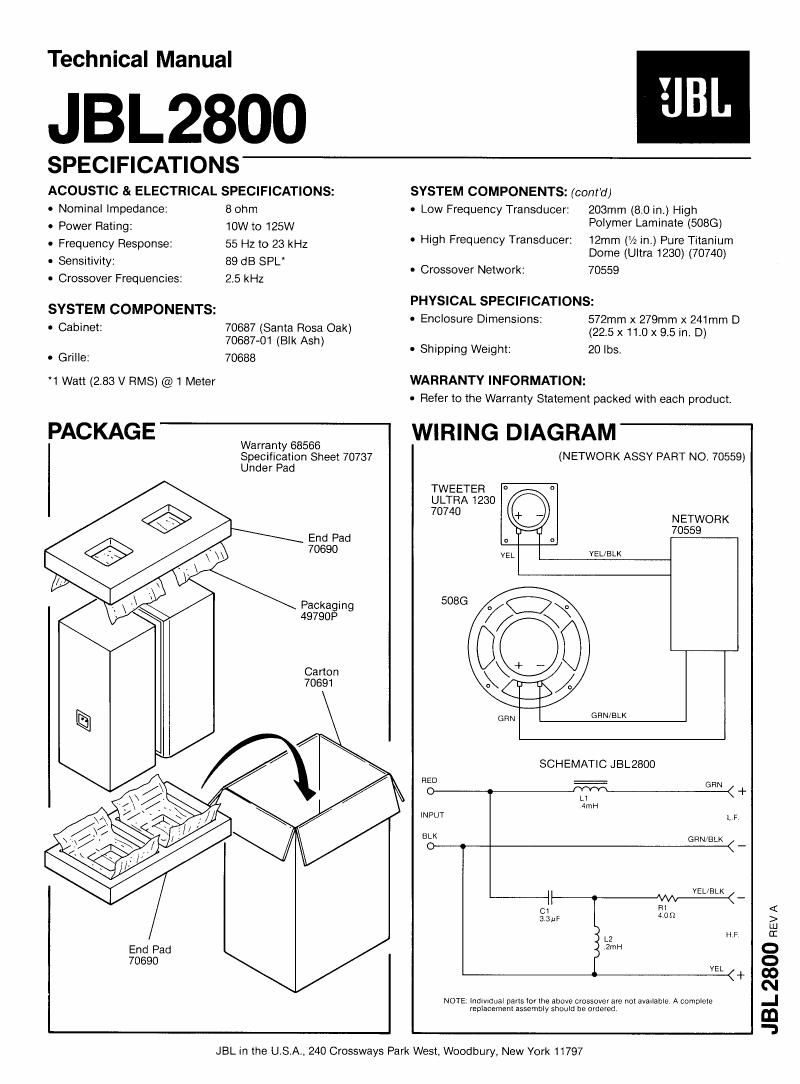

Technical Manual
JBL2800
SPECIFICATIONS
ACOUSTIC B: ELECTRICAL SPECIFICATIONS:
- Nominal Impedance: Bohm
- Power Rating: 10W to 125W
- Frequency Response: 55 Hz to 23 kHz
o Sensitivity: 89 dB SPL
- Crossover Frequencies: 25 kHz
SYSTEM COMPONENTS:
- Cabinet: 70687 (Santa Rosa Oak)
- Grille:
70687-01 (Blk Ash)
70688
'1 Watt (283 V RMS) @1 Meter
PAC KAG E
End Pad
70590
Warranty 68566
Specification Sheet 70737
Under Pad
End Pad
70690
Packaging
49790P
SYSTEM COMPONENTS: (contd)
. Low Frequency Transducer: 203mm (8.0 in.) High
Polymer Laminate (508(5)
- High Frequency Transducer: 12mm (/2 in.) Pure Titanium
Dome (Ultra 1230) (70740)
- Crossover Network: 70559
PHYSICAL SPECIFICATIONS:
(22.5 x110 x 95 in. D)
- Enclosure Dimensions: 572mm x 279mm x 241mm D
0 Shipping WSIQI'III 20 lbs:
WARRANTY INFORMATION:
- Refer to the Warranty Statement packed with each product
WIRING DIAGRAM
TWEETEFI ° °
ULTRA 7230
70740
0 o
VEL VEL/BLK
(NETWORK ASSY PART NO. 70559)
N ETWOR K
70559
GRNJBLK
SCHEMATIC JBL2800
RED
0 ' '
Li
4mH
INPUT
BLK
GRN
LFV
GRN/BLK
VEL/BLK
replacement assembly should be ordered.
NOTE' lndividuai parts Ior the above crossover are not fiVilIibIe A complete
JBL in the USA, 240 Crossways Park West, Woodbury, New York 11797
JBL 2800 REV A
