jbl hls center service manual

Extracted text from jbl hls center service manual (Ocr-read)

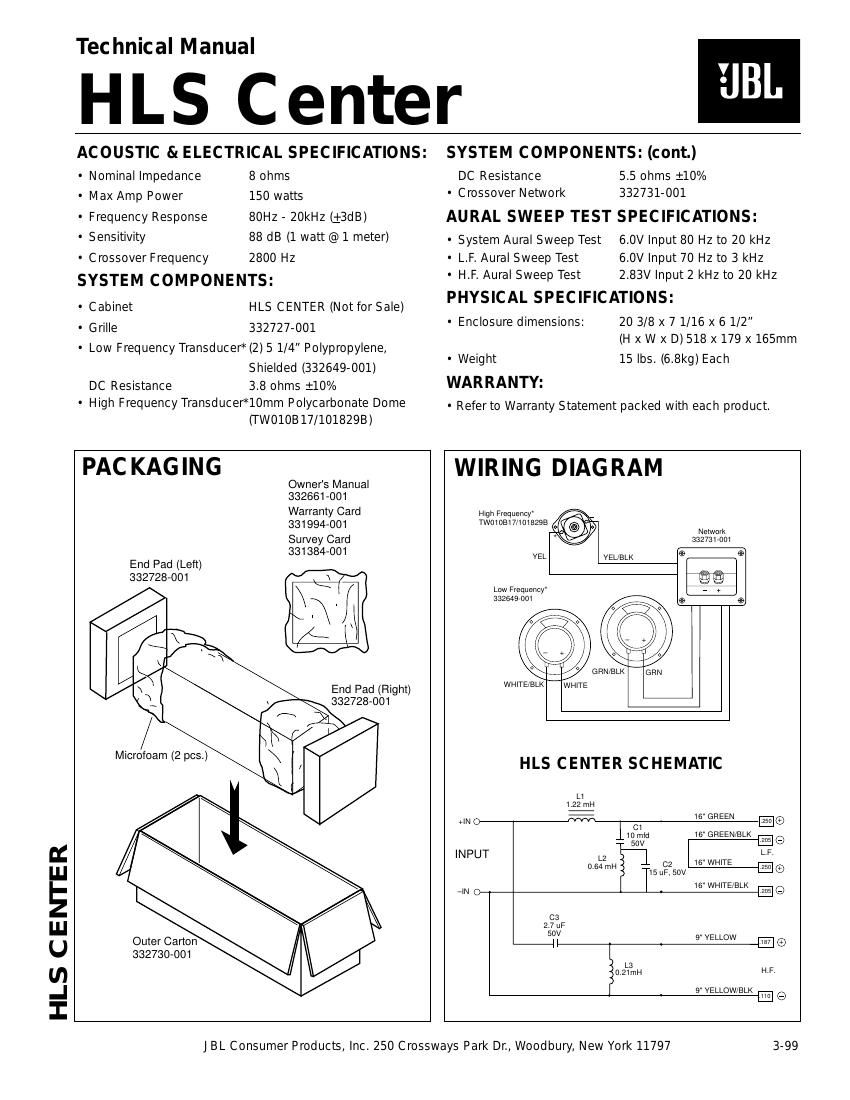

Page 1

Screw (8) #8 X 3/4" PANHD BLK 61868 Woofer,(2)* 332649-001Tweeter * TWO10B17/101829B * See JBL Service Bulletin #JBL9703 for details regarding the removal and installation of drivers.Port Tube 70515-11 Cabinet HLS Center (Not for sale) Grille 332727-001Logo 332663-002 Grille Retainer (4) 333249-001 Crossover Network 332731-001 Screw (4) #6x3/4" OVHDPH 61867 Terminal Cup 70442-01 Horn Not Available Do Not Remove COMPONENT EXPLODED VIEW HLS Center HLS CENTER 3-99 JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
