jbl hls 810 service manual

Extracted text from jbl hls 810 service manual (Ocr-read)

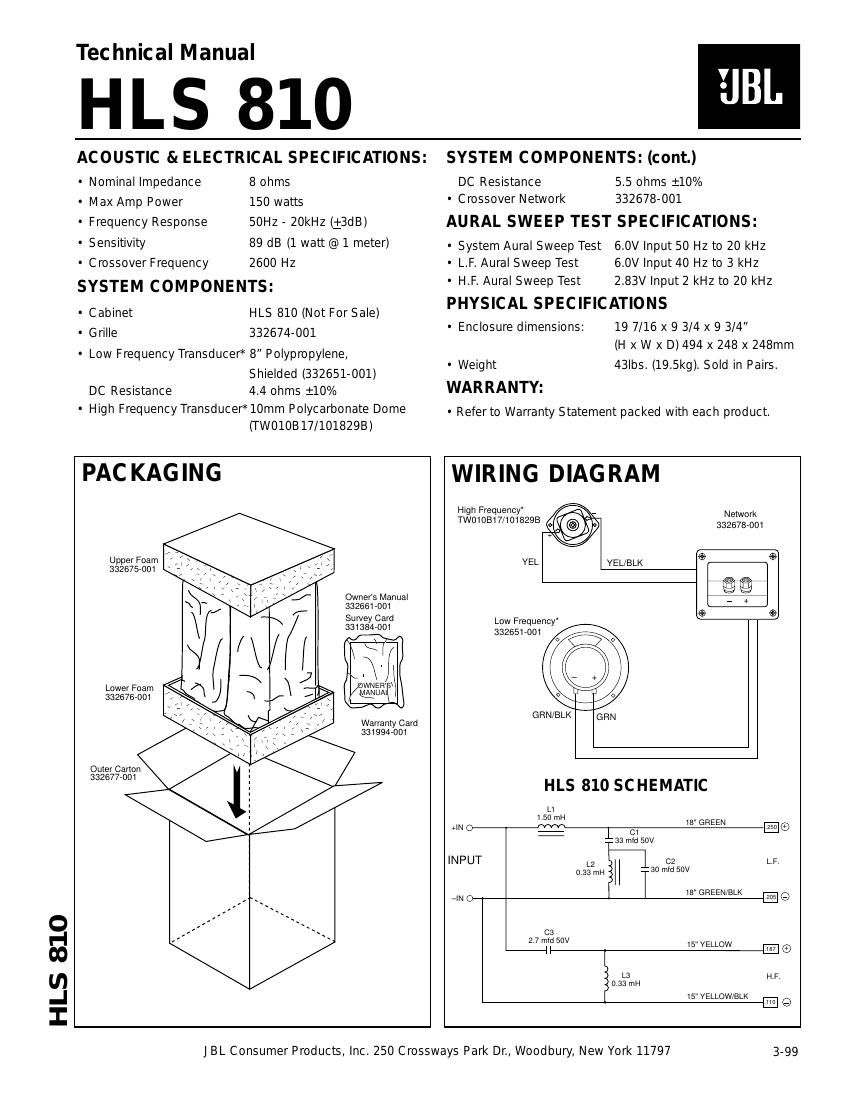

Page 1

333249-001 Foilcal 332674-001 Grille Assembly Crossover Network 332678-001Cabinet (Not for Sale) HLS 810 Screw (4) 61867 #6 x 3/4 OVHDPH Woofer* 332651-001Tweeter* TWO10B17/101829B Screw (4) #8 X 3/4"PANHD BLK 61868 Port Tube 70515-01 Logo 332665-002 Grille Retainer (6) 333249-001 * See JBL Service Bulletin #JBL9703 for details regarding the removal and installation of drivers. Terminal Cup 70442-01 Horn Not Available Do Not Remove COMPONENT EXPLODED VIEW HLS 810 HLS 810 3-99 JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
