jbl hls 615 service manual

Extracted text from jbl hls 615 service manual (Ocr-read)

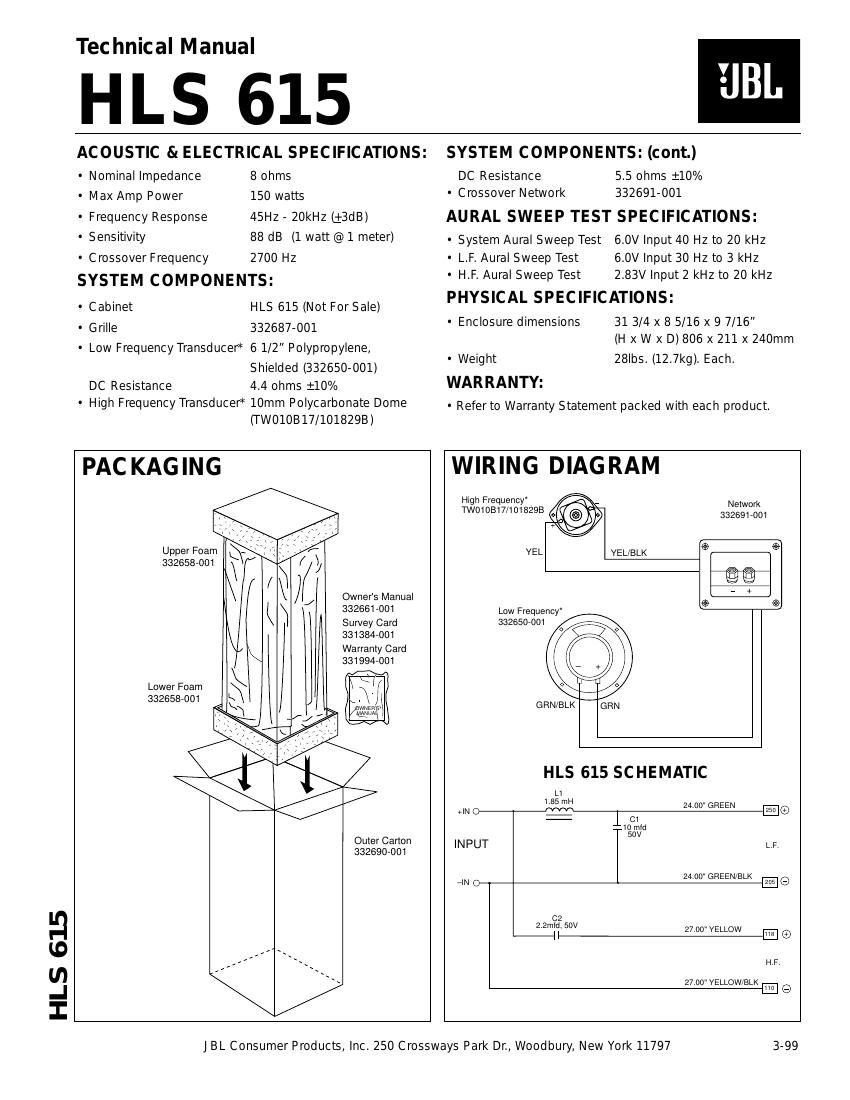

Page 1

Foilcal 332662-003 332687-001 Grille Assembly Crossover Network 332691-001Plastic Foot (2) 331831-001 Cabinet (Not for Sale) HLS 615 Screw (4) 61867 #6 x 3/4 OVHDPHScrew (2) 903101-016 PTH #8x1 Woofer* 332650-001 Tweeter * TWO10B17/101829B Screw (4) #8 X 3/4" PANHD BLK 63563 Port Tube 70515-03Horn Logo 332663-002 Grille Retainer (8) 333249-001 * See JBL Service Bulletin #JBL9703 for details regarding the removal and installation of drivers. Terminal Cup 70442-01 332657-001 Grille Assembly HLS Plastic Horn COMPONENT EXPLODED VIEW HLS 615 HLS 615 3-99 JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
