Jbl hls 610 service manual

This is the 2 pages manual for jbl hls 610 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right
jbl hls 610 service manual

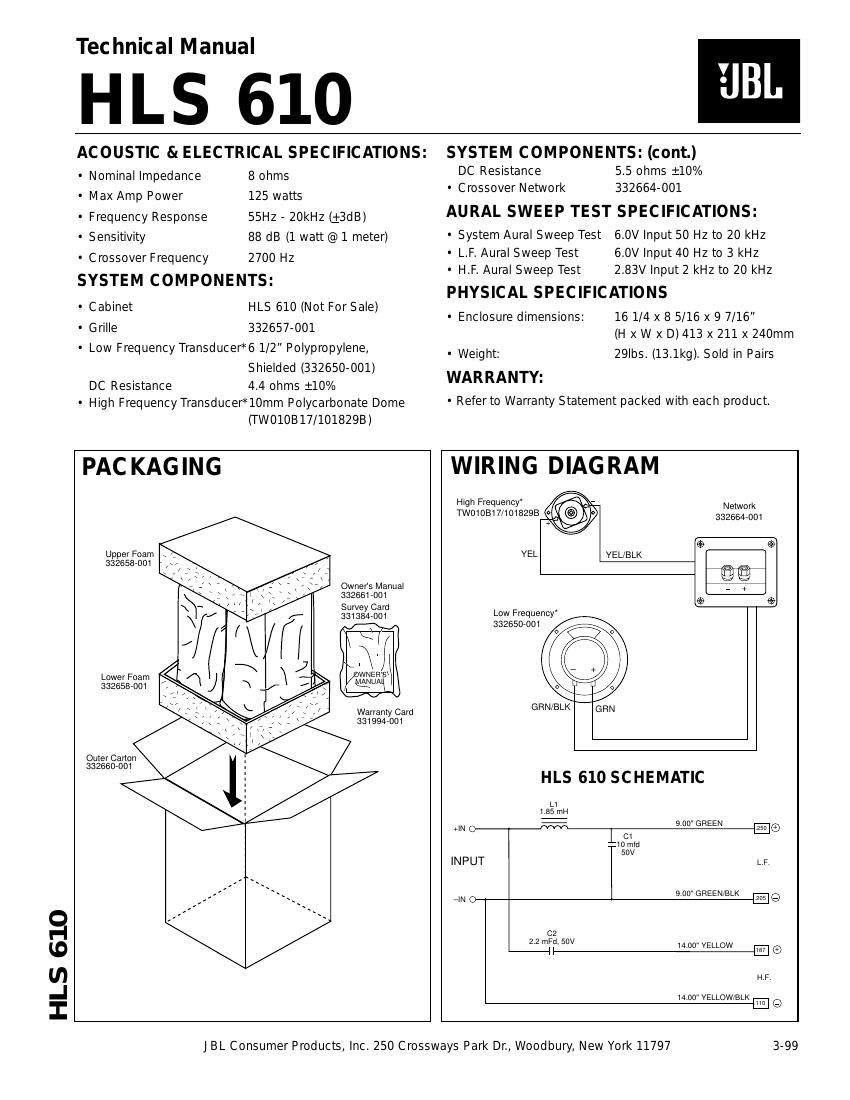

Extracted text from jbl hls 610 service manual (Ocr-read)

Page 1
