Jbl hls 410 service manual

This is the 2 pages manual for jbl hls 410 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right
jbl hls 410 service manual

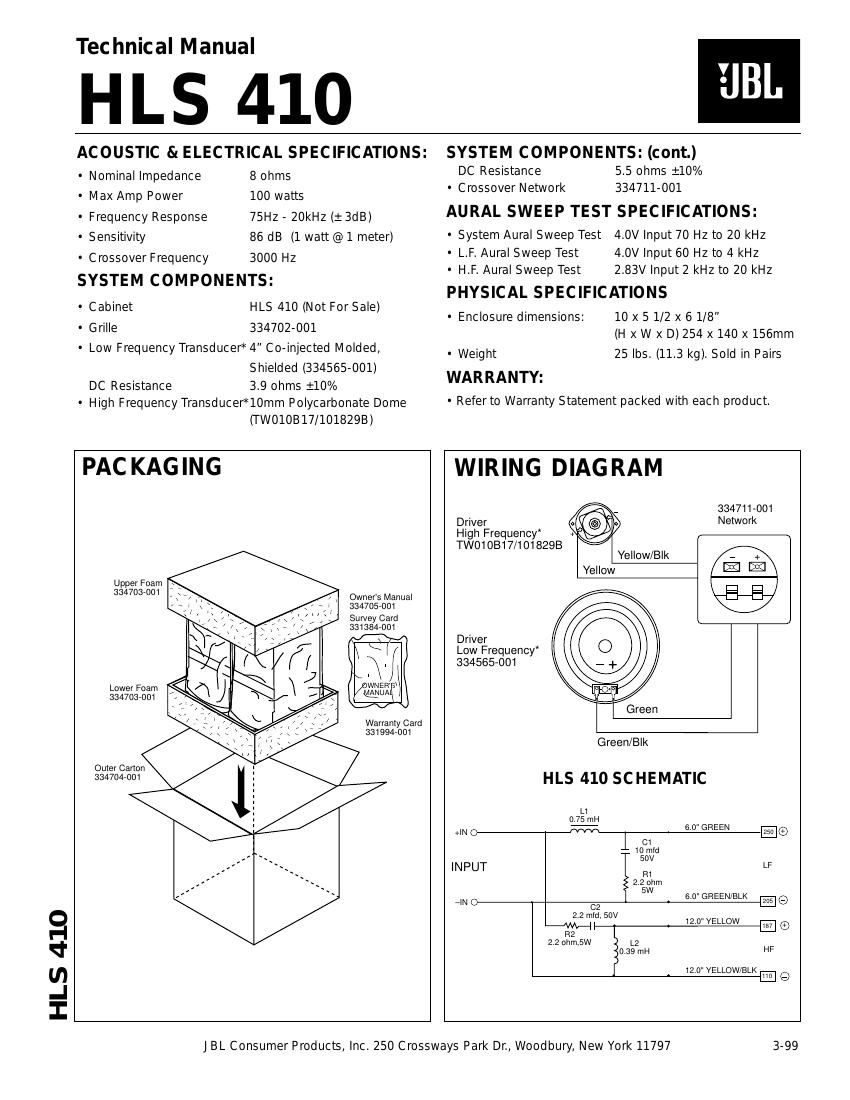

Extracted text from jbl hls 410 service manual (Ocr-read)

Page 1

334702-001 Grille Assembly Crossover Network 334711-001 Screws (4) #6x3/4" OVHDPH 61867Cabinet (Not for Sale) HLS410 Hanger 331465-001 Hanger Screw (2) #8 x 5/8 PH BLK 59666 Woofer* 334565-001Tweeter* TWO10B17/101829B Screw (4) #8 X 3/4" PANHD BLK 63563 Port Tube 331190-001 Grille Retainer (4) 333249-001 * See JBL Service Bulletin #JBL9703 for details regarding the removal and installation of drivers. Horn Not Available Do Not Remove COMPONENT EXPLODED VIEW HLS 410 HLS 410 3-99 JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
