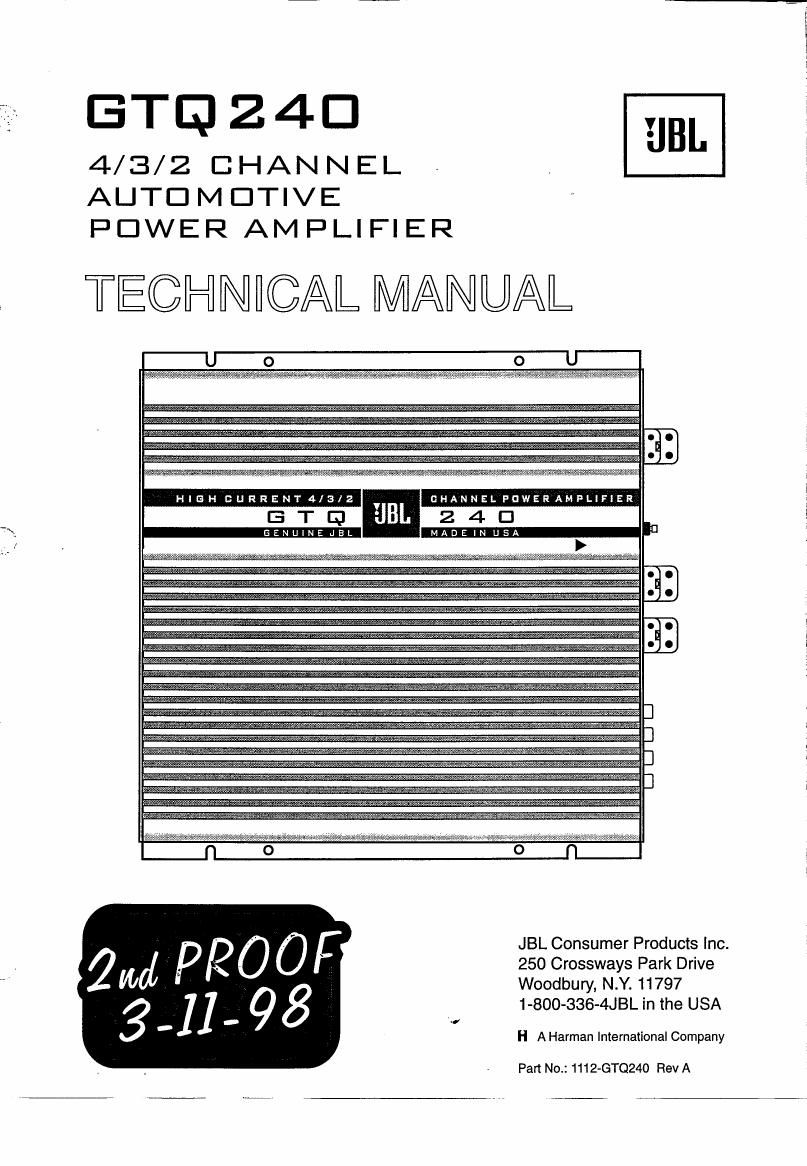

Jbl gtq 240 service manual
This is the 25 pages manual for jbl gtq 240 service manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from jbl gtq 240 service manual (Ocr-read)
Page 2
GT0240
Multichannel Automotive Amplifier
Table of Contents
Specifications ................................................................. 1 Amplifier Exploded View ................................................ 7
Features .......................................................................... 2 Parts Lists ....................................................................... 8
Test Conditions and Notes ............................................ 2 Integrated Circuit Diagrams; ........................................ 11
Controls and Connections .............................................. 3 Printed Circuit Boards .................................. 12
Speaker-Level input Impedance Adjustments ..... Packaging Exploded View ........................................... 14
Crossover Frequency Adjustments... Block Diagrams .. ..15
Custom Chip Construction ............................................. 5 Schematic Diagrams ...... ..17
Typical System Configuration (Wiring) .......................... 6
Specifications
Number of Channels. 4. 3, 2
4 Ohms Stereo 45W x 4
2 Ohms Stereo 60W x 4
4 Ohms Bridged . . 120W x 2
TtH.D. @ 4 Ohms rated power 0.05%
Frequency Response 10Hz - 40kHz (+0, -1db)
Signal to Noise Ratio 100dBA
Slew Hate . . 1OV/us
Channel Separation (dB) >65dB
Damping Factor >200
Crossover Slope . tadB
Fuse Size
Line Level Sensitivity.
Speaker Level Sensitivity
Operating Range .
External Dimensions
Length
Width.
Depth.
Weight
.JBL continually strives to improve its products. New materials, production methods and design refinements are introduced into
30Amp 82Volt ATC Type Fuse (2 per amplifer)
100mV - 4V
400mV - 8V
11V - 16V
14 7/16" (376mm)
10 (245mm)
2" (51mm)
11.1le (5.0kg)
existing models without notice as a routine expression of our design philosophy. For this reason, GTQ Series Multichannel
Automotive Amplifiers may differ in some respect from their published specifications and descriptions, but will always equal or
exceed the original specifications unless otherwise stated.
