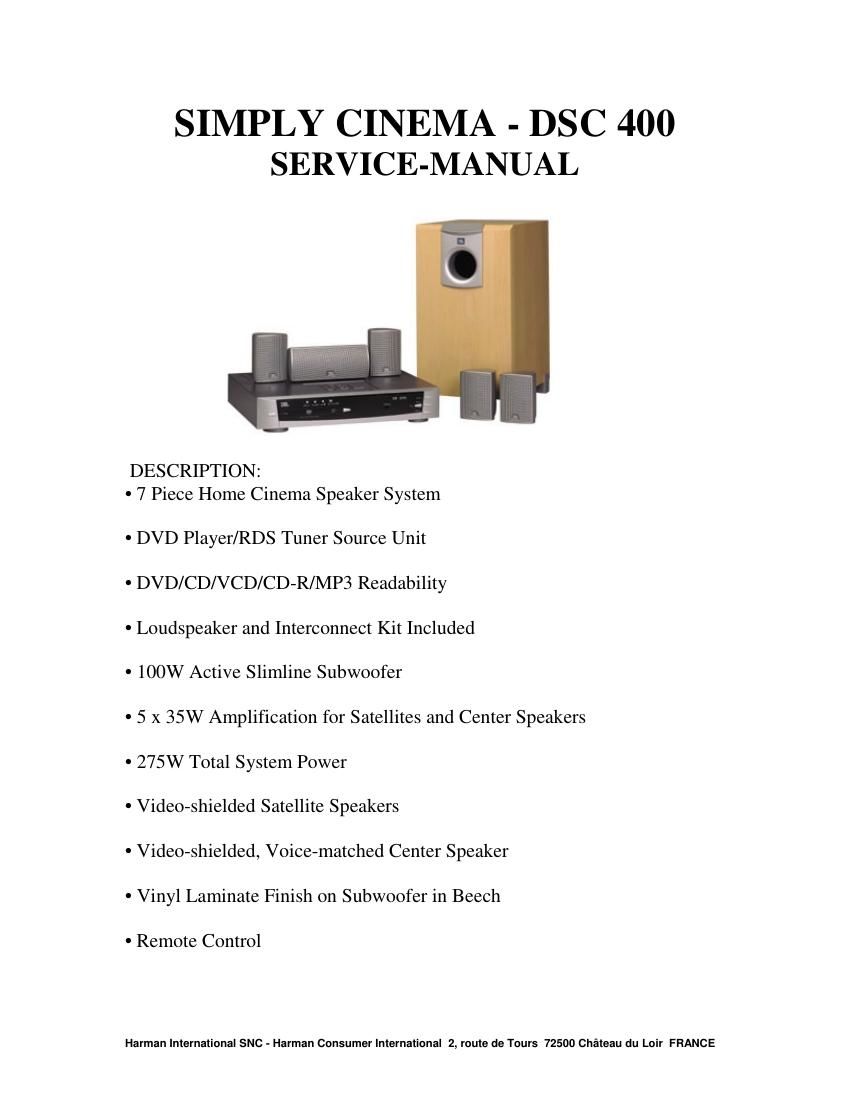

SIMPLY CINEMA - DSC 400
SERVICE-MANUAL
DESCRIPTION:
- 7 Piece Home Cinema Speaker System
- DVD Player/RDS Tuner Source Unit
- DVD/CD/VCD/CD-R/MP3 Readability
- Loudspeaker and Interconnect Kit Included
- 100W Active Slimline Subwoofer
- 5 X 35W Amplification for Satellites and Center Speakers
- 275W Total System Power
- Video-shielded Satellite Speakers
- Video-shielded, Voice-matched Center Speaker
- Vinyl Laminate Finish on Subwoofer in Beech
- Remote Control
Harman International SNC - Harman Consumer International 2, route de Tours 72500 Chateau du Loir FRANCE
SPECIFICATIONS:
Source Unit Section
I Software Compatibility: DVD Video/CD/VCD/MP3/CD-R
I Analog: DTS®, Dolby® Digital, Dolby® Pro Logic, Phantom, Dolby® 3-Stereo, Stereo
I Dimensions: 80mm x 430mm x 345mm
I Video Outputs: Euro SCART, Composite Video, S_VHS (S-Video)
I Audio Connections: Din Plug System Connector
Audio Output, Euro SCART, Aux Audio Input/Output (Tape Loop) RCA Phono
FM Tuner Section
I System: PLL quartz-locked digital synthesizer system
I Tuning Range: 87:50MHz - 108:00MHZ
I Antenna Terminals: 75 Ohms unbalanced
I Presets: 40 including AM Tuner
AM Tuner Section
I System: PLL quartz-locked digital synthesizer system
I Tuning Range: 530kHz - l710kHz
I Presets: 40 including FM Tuner
System Section
I Surround Processing Modes: DTS®, Dolby® Digital, Dolby® Pro Logic, Phantom, Dolby® 3-stereo,
Stereo
I Frequency Response (-6db): 35HZ - ZOkHz
Satellite Section
I Frequency Response (-6db): 120Hz - 20kHz
I Sensitivity (2,83 V @ lm): 86dB
I Nominal Impedance: 8 Ohms
I Recommended Amplifier Power: 10 - 50 Watts RMS per Channel
I Drive Units: 12mm Titanium Laminate Dome Video-shielded HF
75mm Paper Cone Video-shielded Midrange
I Dimensions (H x W x D): lllmm x 81mm x 95mm
I Weight: 0.5kg
Speaker System Section
I Frequency Response (-6db): 35Hz - ZOkHz
Center Section
I Frequency Response (-6db): IZOHZ - ZOkHz
I Sensitivity (2,83 V @ lm): 88dB
I Dimensions (H x W x D): 83mm x 194mm x 95mm
I Weight: 0,85kg
I Nominal Impedance: 8 Ohms
Subwoofer Section
I Amplifier Power Output:
Satellites: 5 x 35 Watts RMS 0.1% THD
Subwoofers: 100 Watts RMS 1% THD
I Drive Units: 200mm Paper Cone Long Throw Driver.
Bass Reflex Enclosure
I Dimensions (H x W x D): 450mm x 250mm x 360 mm
I Weight: 15,7kg
Harman International SNC - Harman Consumer International 2, route de Tours 72500 Chateau du Loir FRANCE
