Jbl cm center service manual

This is the 2 pages manual for jbl cm center service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 2
left right
jbl cm center service manual

Extracted text from jbl cm center service manual (Ocr-read)

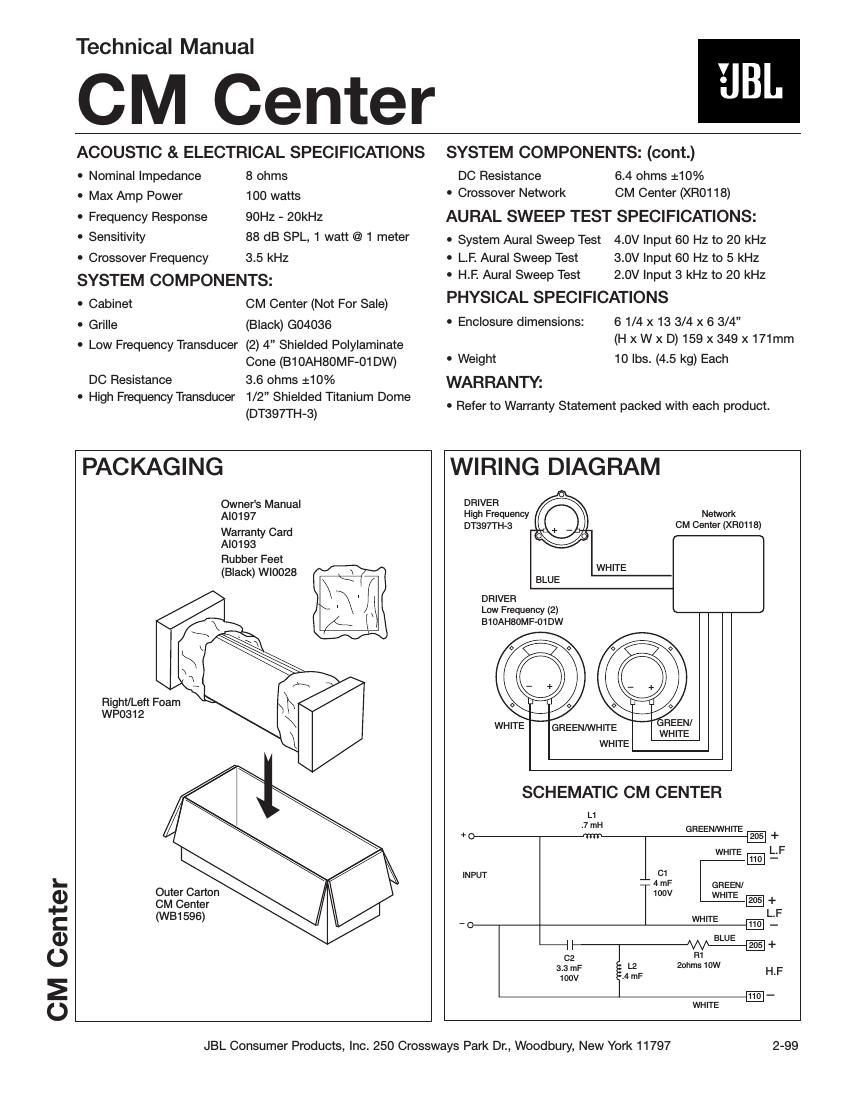

Page 1

Network CM Center (XR0118) Grille (Black) G04036Cabinet CM Center (Not for sale) Screw (8) 1/2" #8 Blk. PPH (A06-T41202) Screw (8) 1/2" #8 Blk. PPH (A06-T41202)Screw (3) (A06-Y31202) Logo SZ532 Woofer (2) B10AH80MF-01DW Woofer Ring Trims (2) P04067-1Rubber Inserts (2) WI1002 Tweeter DT397TH-3 Red & Black Binding Post T761 COMPONENT EXPLODED VIEW CM Center CM Center 2-99 JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797 For woofer removal: Black trim ring must be carefully pried out of its recess to access mounting screws.
