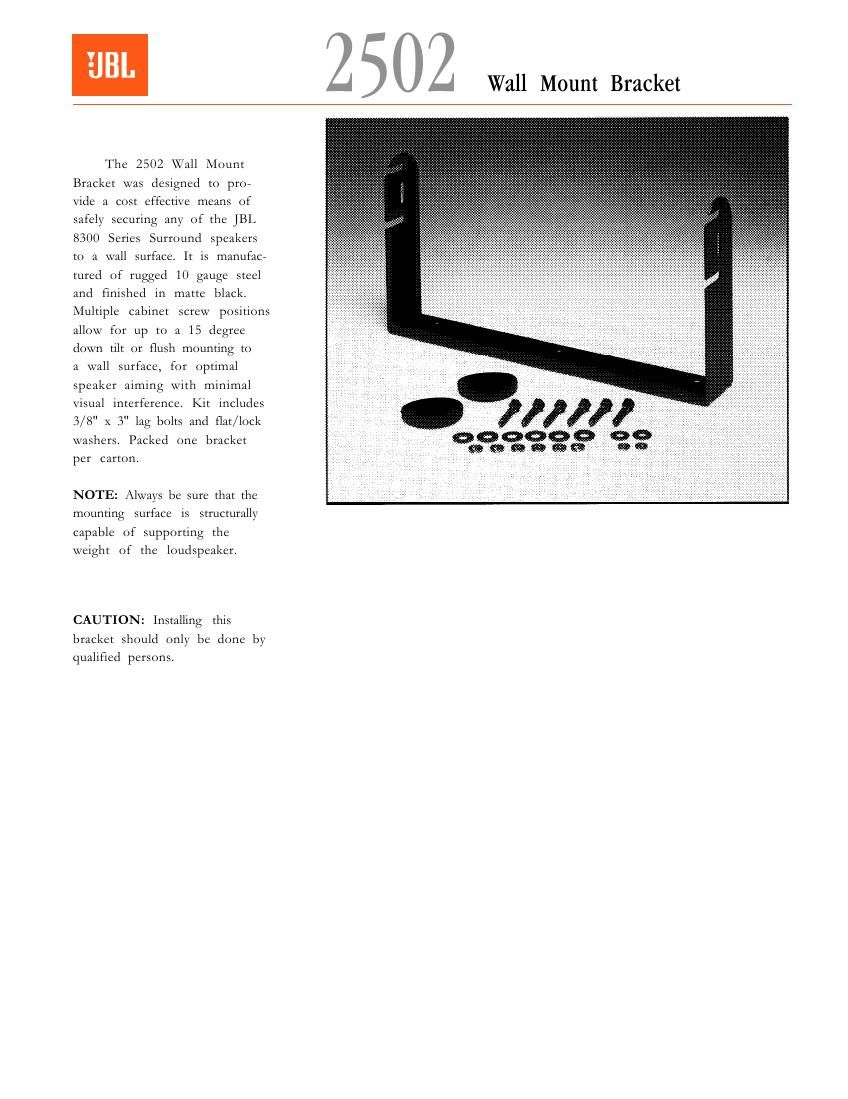

2502 Wall Mount Bracket
CAUTION:Installing this bracket should only be done
by qualified persons.
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 USA
A Harman International CompanySS2502
CRP 5M
9/95 JBL continually engages in research related to product improvement. New
materials production methods and design refinements are introduced into existing
products without notice as a routine expression of that philosophy. For this reason, any
current JBL product may differ in some respect from its published description but will
always equal or exceed the original design specifications unless otherwise stated.
Page 2
2502 Wall Mount Bracket
Top View
Front ViewSide View
Hardware Kit: 6 pcs. 3/8 x 2 Hex lag bolt
2 pcs. 3/8 x 3 x 1/4 Gasket
6 pcs. 3/8 Flat washer
2 pcs. 5/16 Star lock washer
6 pcs 3/8 Split lock washer
2 pcs 5/16 Flat washer
Note: Dimensions in Inches
