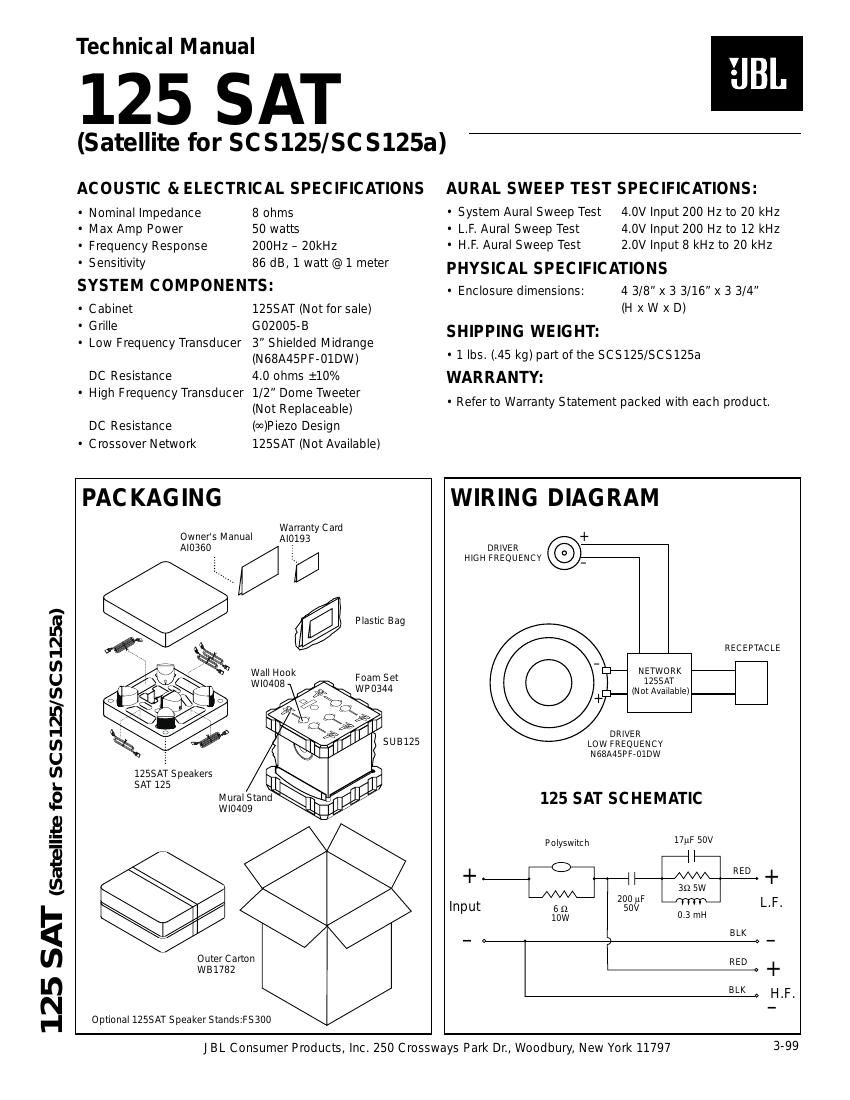

jbl 125 sat service manual

Extracted text from jbl 125 sat service manual (Ocr-read)

Page 1

125SAT (Not Available) Logo W10778-1 Low Frequency Transducer N68A45PF-01DW Spacer Not for Sale Baffle Screw (4) 5/8" A06t41602Baffle Screw (2) 5/8" A06-t41605 Tweeter Mount Screw (2) A06-t30803 Tweeter Grille Assembly G02005-BRubber Foot (Front) W10782 Dacron Filler Gasket Not For SaleRubber Foot (Rear) W10781 Cabinet 125SAT (Not For Sale) Wall Hook WI0408 Mural Stand WI0409 COMPONENT EXPLODED VIEW 125 SAT (Satellite for SCS125/SCS125a) 125 SAT (Satellite for SCS125/SCS125a) 3-99 JBL Consumer Products, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
