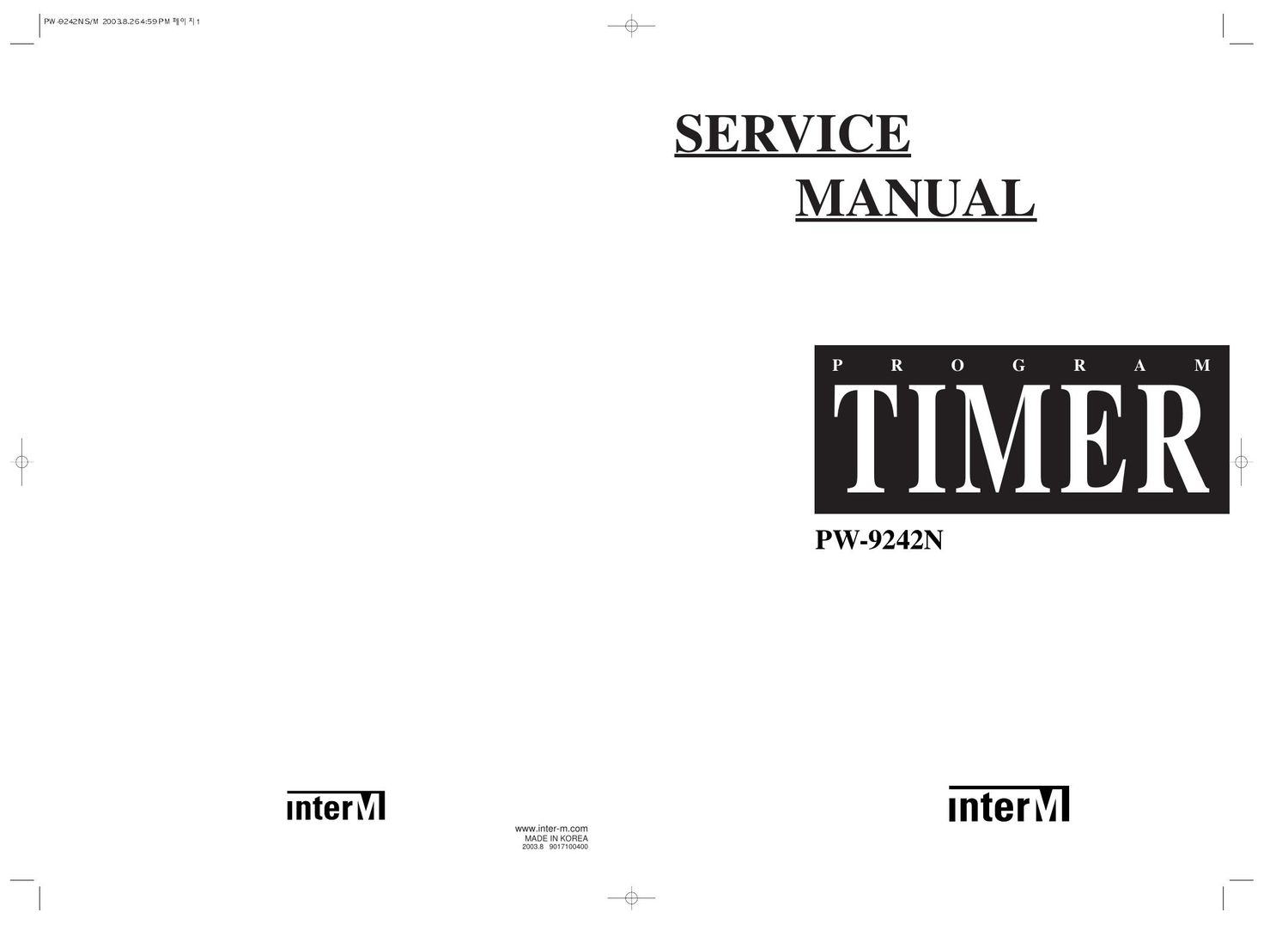

This is the 19 pages manual for interm pw 9242n timer. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Page: 1 / 19
Extracted text from interm pw 9242n timer (Ocr-read)
Page 1
Micom Data 1
Specifications
5
Electrical Parts List
6. 7
Top and Bottom View of P.C. Board
8
Wiring Diagram
11
Block Diagram
12
Schematic Diagram
13, 14
Exploded View of Cabinet & Chassis / Mechanical Parts List
15, 16
Assy Drawing
17, 18
CONTENTS
Page 2
MICOM DATA
1
AT89C52 8-BIT MICROCONTROLLER WITH 8K BYTES FLASH
FEATURES
- Compatible with MCS-51 TM-š Products
- 8K Bytes of In-System Reprogrammable Flash Memory
- Endurance: 1,000 Write/Erase Cycles
- Fully Static Operation: 0 Hz to 24 MHz
- Three-level Program Memory Lock
- 256 x 8-bit Internal RAM
- 32 Programmable I/O Lines
- Three 16-bit Timer/Counters
- Eight Interrupt Sources
- Programmable Serial Channel
- Low-power Idle and Power-down Modes
DESCRIPTION
The AT89C52 is a low-power, high-performance CMOS 8-bit microcomputer with 8K bytes of Flash
programmable and erasable read only memory (PEROM). The device is manufactured using Atmels high-
density nonvolatile memory technology and is compatible with the industry-standard 80C51 and 80C52
instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system
or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with Flash on a
monolithic chip, the Atmel AT89C52 is a powerful microcomputer which provides a highly-flexible and cost-
effective solution to many embedded control applications.
PIN CONFIGURATIONS
PQFP/TQFP
1
2
3
4
5
6
7
8
9
10
1133
32
31
30
29
28
27
26
25
24
23 P1.5
P1.6
P1.7
RST
(RXD) P3.0
NC
(TXD) P3.1
(INT0) P3.2
(INT1) P3.3
(T0) P3.4
iT1) P3.5P0.4 (AD4)
P0.5 (AD5)
P0.6 (AD6)
P0.7 (AD7)
EA/VPP
NC
ALE/PROG
PSEN
P2.7 (A15)
P2.6 (A14)
P2.5 (A13)
44
43
42
41
40
39
38
37
36
35
34 12
13
14
15
16
17
18
19
20
21
22 (WR) P3.6
(RD) P3.7
XTAL2
XTAL1
GND
NC
(A8) P2.0
(A9) P2.1
(A10) P2.2
(A11) P2.3
(A12) P2.4P1.4
P1.3
P1.2
P1.1 (T2 EX)
P1.0 (T2)
NC
VCC
P0.0 (AD0)
P0.1 (AD1)
P0.2 (AD2)
P0.3 (AD3)
PDIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2040
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21 (T2) P1.0
(T2 EX) P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
RST
(RXD) P3.0
(TXD) P3.1
(INT0) P3.2
(INT1) P3.3
(T0) P3.4
(T1) P3.5
(WR) P3.6
(RD) P3.7
XTAL2
XTAL1
GNDVCC
P0.0 (AD0)
P0.1 (AD1)
P0.2 (AD2)
P0.3 (AD3)
P0.4 (AD4)
P0.5 (AD5)
P0.6 (AD6)
P0.7 (AD7)
EA/VPP
ALE/PROG
PSEN
P2.7 (A15)
P2.6 (A14)
P2.5 (A13)
P2.4 (A12)
P2.3 (A11)
P2.2 (A10)
P2.1 (A9)
P2.0 (A8)
PLCC
7
8
9
10
11
12
13
14
15
16
1739
38
37
36
35
34
33
32
31
30
29 P1.5
P1.6
P1.7
RST
(RXD) P3.0
NC
(TXD) P3.1
(INT0) P3.2
(INT1) P3.3
(T0) P3.4
(T1) P3.5P0.4 (AD4)
P0.5 (AD5)
P0.6 (AD6)
P0.7 (AD7)
EA/VPP
NC
ALE/PROG
PSEN
P2.7 (A15)
P2.6 (A14)
P2.5 (A13)
6
5
4
3
2
1
44
43
42
41
40 18
19
20
21
22
23
24
25
26
27
28 (WR) P3.6
(RD) P3.7
XTAL 2
XTAL1
GND
NC
(A8) P2.0
(A9) P2.1
(A10) P2.2
(A11) P2.3
(A12) P2.4P1.4
P1.3
P1.2
P1.1 (T2 EX)
P1.0 (T2)
NC
VCC
P0.0 (AD0)
P0.1 (AD1)
P0.2 (AD2) P0.3 (AD3)
