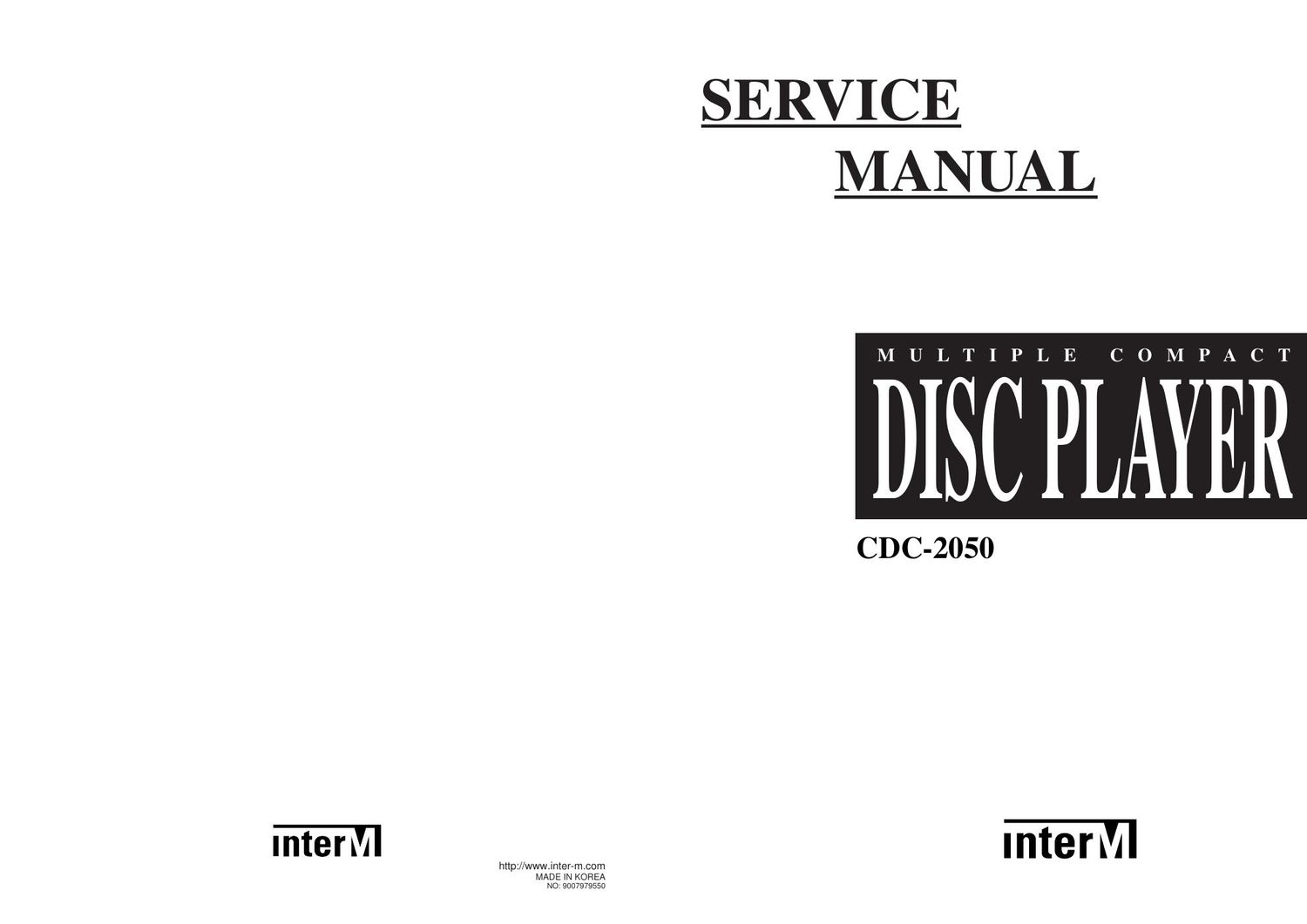

interm cd c2050 cd

Extracted text from interm cd c2050 cd (Ocr-read)


Page 2

CONTENTS |

Specifications ......... . . . . ......... 1

EIectricaIParts List - - - - - - - - - --------- 2.3

Top and Bottom View ofP.C. Board ------- - - - - - -4,5

Wiring Diagram ......... . . . . ......... 6

Block Diagram ......... . . . . ......... 7 8 9 10 11 12
Schematic Diagram - . - --------- 13 1415,16171819,20

Exploded View of Cabinet & Chassis / Mechanical Parts List . 21, 22, 23, 24
Assy Drawing ......... . . . . ......... 25 26

SPECIFICATIONS

lELECTRlCAL
- Frequency Response (20Hz~20kHz) ................................................................................................ :O.5dB
- Dynamic Range ............... ..98dB
- S/N Ratio ............................................................................................................................................ 108dB
- Distortion (at 1kHz) .............................................................................................................. .. .<.0 003%
- Separation ................... 90dB
- Output Voltage .......... VarIabIe 0. 2~ 2. 0V
- Disc Used ........................................................................... Audio Compact Discs are used 12cm and 8cm
- Mechanism .................................................................................................................. Full Floating System
IGENERAL
- Power Source ....................................................................................................... AC 110V-240V, 50/60Hz
Voltage is shown on Rating label
- Power Consumption .............................................................................................................................. 12W
- Weight ................................................ 7.1 kg

- Dimensions.. ..482(W) ><132(H) x389(D)mm

*Specifications and design subject to change without notice for improvements.
