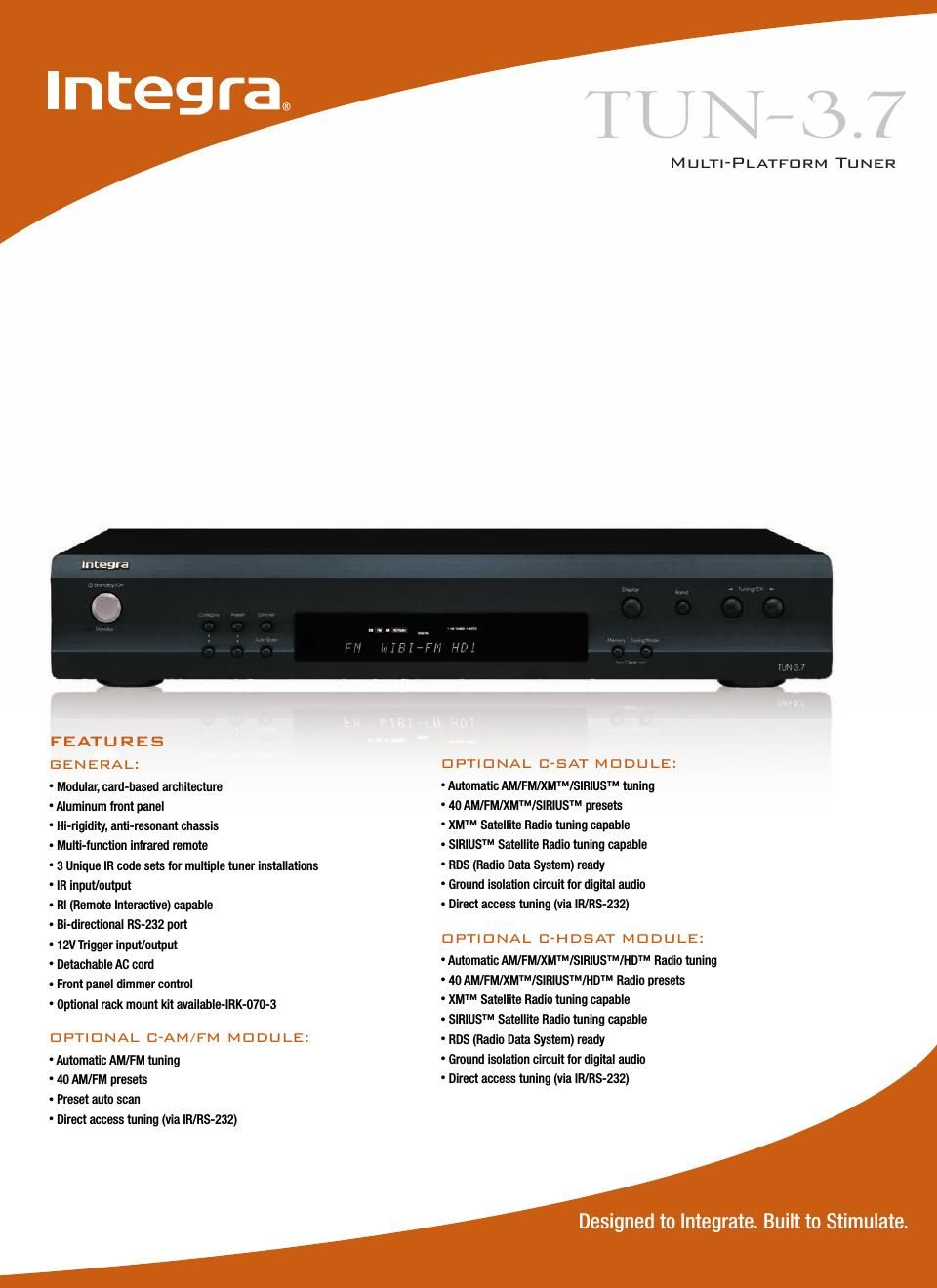

Page 1
Designed to Integrate. Built to Stimulate.
www.integrahometheater.com
SPECIFICATIONS
GENERAL
Power supply: AC 120 V, 60 Hz
Power consumption:
27 W (when C-HDSAT
module is used)
Stand-by power consumption: 0.2 W
Dimensions (W × H × D): 17-1/8 × 3-3/16 × 12-1/16 (not including module) 435 × 81 × 306 mm
Weight: 9.9 lbs. (4.5 kg) (not including module)
Optional mounting kit: IRK-070-3
U dimension: 2U
FM
Tuning range:
87.5-107.9 MHz
(100-kHz steps)
Usable sensitivity stereo: 22.2 dBf (IHF)
mono: 15.2 dBf (IHF)
Signal-to-noise ratio stereo: 67 dB (IHF-A)
mono: 73 dB (IHF-A)
THD (total harmonic distortion) stereo: 0.5% (1 kHz)
mono: 0.3% (1 kHz)
Stereo separation: 40 dB (1 kHz)
AM
Tuning range:
530-1,700 kHz
(10-kHz steps)
Usable sensitivity: 300 µV/m
Signal-to-noise ratio: 40 dB
THD (total harmonic distortion) 0.7%
Multi-Platform Tuner
Optional
C-SAT Module Optional
C-HDSAT Module Optional
C-AMFM Module
XM is a registered trademark of XM Satellite Radio Holdings, Inc.
SIRIUS is a registered trademark of SIRIUS Satellite Radio Inc.
The HD Radio logo is a registered trademark and
HD Radio is a trademark of iBiquity Digital Corporation
All others are trademarks or registered trademarks of their respective holders.
Due to a policy of continuous product improvement, Integra reserves the right to
change specifications and appearance without notice.
2/2008 Printed in the USA
TUN- 3.7
