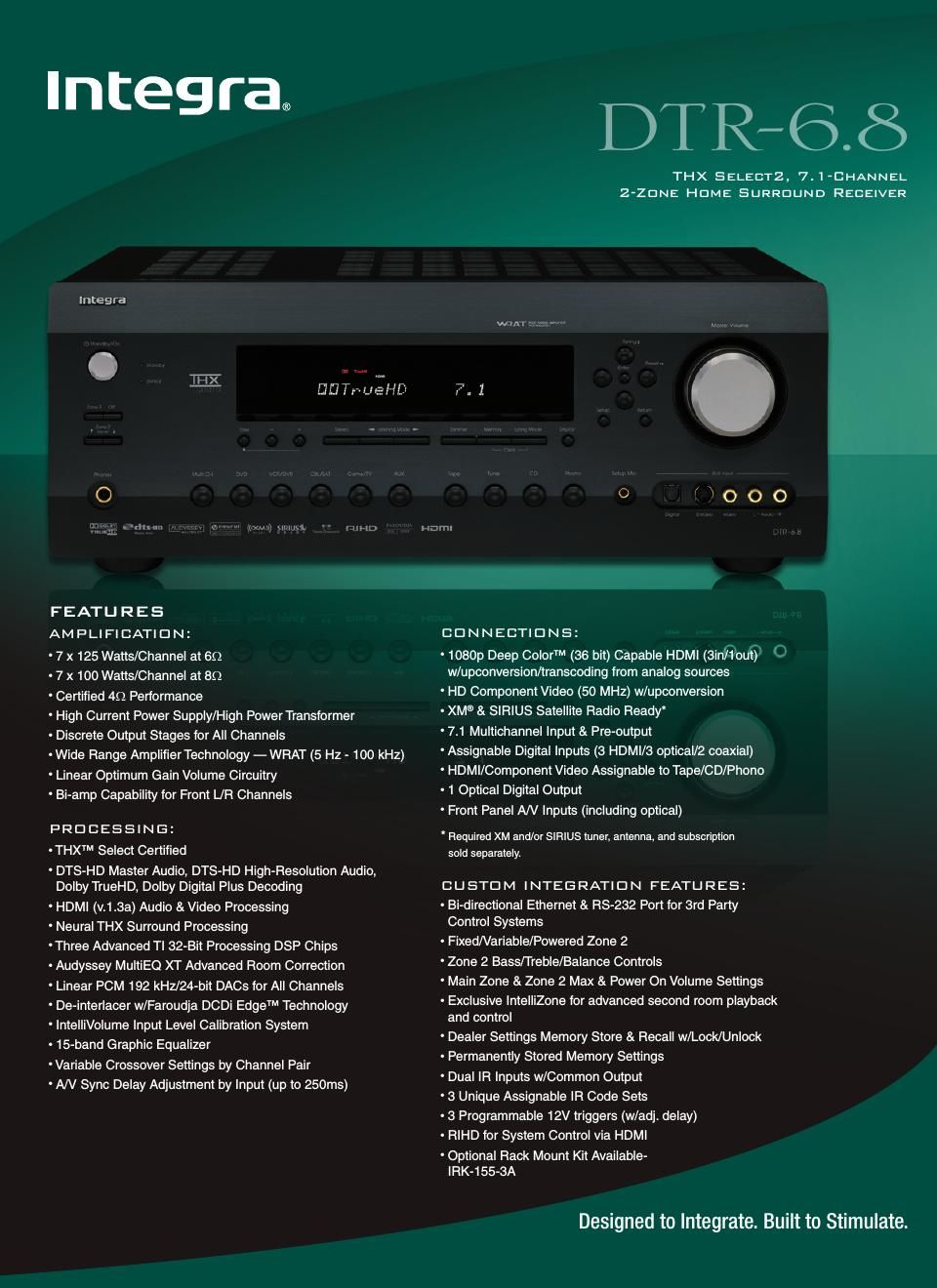

Page 1
Designed to Integrate. Built to Stimulate.
SPECIFICATIONS
AMPLIFIER
Continuous average power output (FTC)
All channels: 100 W per channel min. RMS at 8Z, 2 channels driven from 20 Hz to 20 kHz with no more than 0.08% total harmonic distortion.
115 W min. RMS at 6Z, 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion.
Dynamic power output (stereo): 2 × 240 W at 3 Ω 2 × 210 W at 4 Ω 2 × 120 W at 8 Ω
Frequency response: 5 Hz to 100 kHz: +1/-“3 dB
Signal-to-noise ratio: 106 dB (LINE, IHF-A)
Total harmonic distortion: 0.08% at rated power
IM distortion: 0.08% at rated power
Damping factor: 60 at 8 Ω
Speaker impedance: 4 Ω to 16 Ω
INPUT SENSITIVITY AND IMPEDANCE
Line: 200 mV, 47 k Ω
Phono: 2.5 mV, 47 k Ω
OUTPUT LEVEL AND IMPEDANCE
Rec out: 200 mV, 470 Ω
Pre out: 1 V, 470 Ω
Zone 2 line output: 100 mV, 470 Ω
TONE CONTROL
Bass: ±10 dB at 50 Hz
Treble: ±10 dB at 20 kHz
FM
Tuning range: 87.5-107.9 MHz (100-kHz steps)
Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75 Ω IHF)
AM
Tuning range: 530-1,710 kHz (10-kHz steps)
Usable sensitivity: 300 µV/m
DIGITAL TUNER
XM, SIRIUS
GENERAL
Power supply: AC 120 V, 60 Hz
Power consumption: 6.5 A
Dimensions (W x H x D): 17-1/8 x 6-3/4 x 15-3/8
435 x 172 x 391 mm
Weight: 28.7 lbs. (13 kg)
Optional mounting kit: IRK-155-3A
U dimension: 4U
XM is a registered trademark of XM Satellite Radio Holdings, Inc.SIRIUS is a registered trademark of SIRIUS Satellite Radio Inc.THX is a trademark of THX Ltd.All others are trademarks or registered trademarks of their respective holders.Product features and specifications subject to change without notice.
THX Select2, 7.1-Channel
2-Zone Surround Receiver
DTR-6.8
