SPECIFICATIONS
AMPLIFIER
Continuous average power output (FTC)
All channels: 90 W per channel min. RMS at 8Ω,
2 channels driven from 20 Hz to 20 kHz
with no more than 0.08% total
harmonic distortion.
110 W min. RMS at 6Ω, 2 channels driven from 1 kHz with no more than
0.1% total harmonic distortion.
Dynamic power output (stereo): 2 × 210 W at 3Ω
2 × 180 W at 4Ω
2 × 110 W at 8Ω
Frequency response: 5 Hz to 100 kHz: +1/-“3 dB
Signal-to-noise ratio: 100 dB (LINE, IHF-A)
Total harmonic distortion: 0.08% at rated power
IM distortion: 0.08% at rated power
Damping factor: 60 at 8Ω
Speaker impedance: 6Ω to 16Ω
INPUT SENSITIVITY AND IMPEDANCE
Line: 200 mV, 47 kΩ
OUTPUT LEVEL AND IMPEDANCE
Rec out: 200 mV, 470Ω
Pre out: 1 V, 470Ω
Zone 2 line output: 100 mV, 470Ω
TONE CONTROL
Bass: ±10 dB at 50 Hz
Treble: ±10 dB at 20 kHz
FM
Tuning range: 87.5-107.9 MHz (100-kHz steps)
Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75 ohm IHF)
AM
Tuning range: 530-1,710 kHz (10-kHz steps)
Usable sensitivity: 300 µV/m
GENERAL
Power supply: AC 120 V, 60 Hz
Power consumption: 4.9 A
Dimensions (W x H x D): 17-1/8 x 6-13/16 x 15-3/8
435 x 173 x 391 mm
Weight: 25.1 lbs. (11.4 kg)
Optional mounting kit: IRK-155-3A
U dimension: 4U.

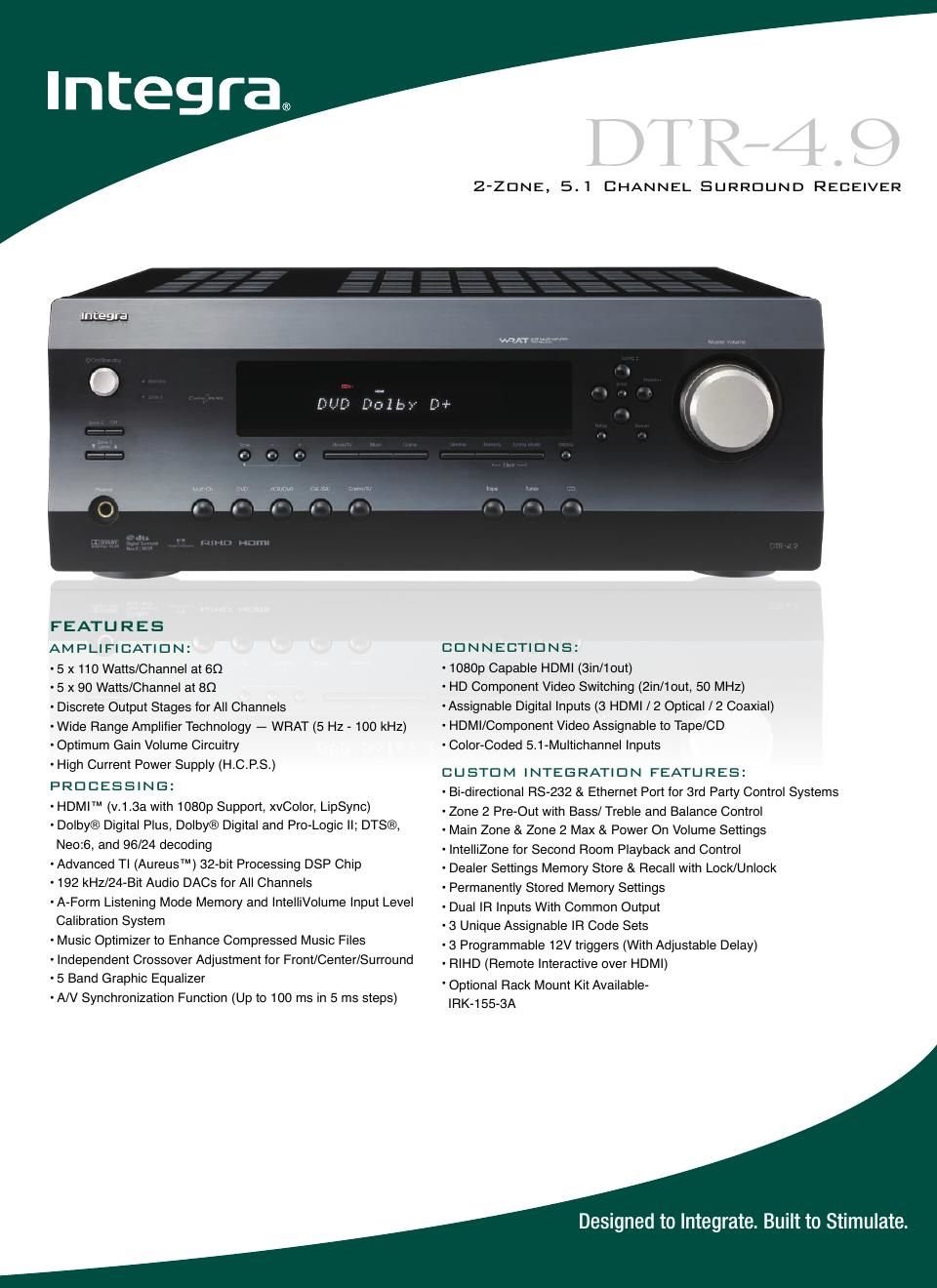

2-Zone, 5.1 Channel Surround Receiver
All trademarks are registered trademarks of their respective holders.
Due to a policy of continuous product improvement, Integra reserves the right to
change specifications and appearance without notice.
06/2008 Printed in the USA Designed to Integrate. Built to Stimulate.
www.integrahometheater.com
173 [6.81] 157 [6.18]
360 [14.17] 435 [17.13]
391 [15.39]
215 [8.46]
40 [1.57]
94 [3.70]
173 [6.81] 173 [6.81]
173 [6.81]
60 [2.36]
328 [12.91]
DTR-4.9
