Designed to Integrate. Built to Stimulate.
SPECIFICATIONS
AUDIO PERFORMACE
Frequency response: 5 Hz to 100 kHz: +1/-“3 dB
Signal-to-noise ratio: 110 dB (LINE, IHF-A)
Total harmonic distortion: 0.05% (1 Vrms)
INPUT SENSITIVITY AND IMPEDANCE
Line: 200 mV, 47Ω
Phono: 2.5 mV/47Ω
OUTPUT LEVEL AND IMPEDANCE
Rec out: 200 mV, 470Ω
Pre out: 1 V, 470Ω
Zone 2 line output: 100 mV, 470Ω
TONE CONTROL
Bass: ±10 dB at 20 Hz
Treble: ±10 dB at 20 kHz
FM
Tuning range: 87.5-“107.9 MHz (100-kHz steps)
Usable sensitivity, stereo: 22.2 dBf, 2.0 µV (75 Ω IHF)
AM
Tuning range: 530-“1,710 kHz (10-kHz steps)
Usable sensitivity: 300 µV/m
DIGITAL TUNER
XM, SIRIUS, HD RADIO
Preset channel: 40
GENERAL
Power supply: AC 120 V, 60 Hz
Power consumption: 1.1 A
Dimensions (W × H × D): 17-1/8 × 7-5/8 × 17-1/2
435 × 194 × 444.5 mm
Weight: 29.3 lbs. (13.3 kg)
Optional mounting kit: IRK-175-4
U dimension: 4U
Product features and specifications subject to change without notice. Images are for reference only and may not represent final product.

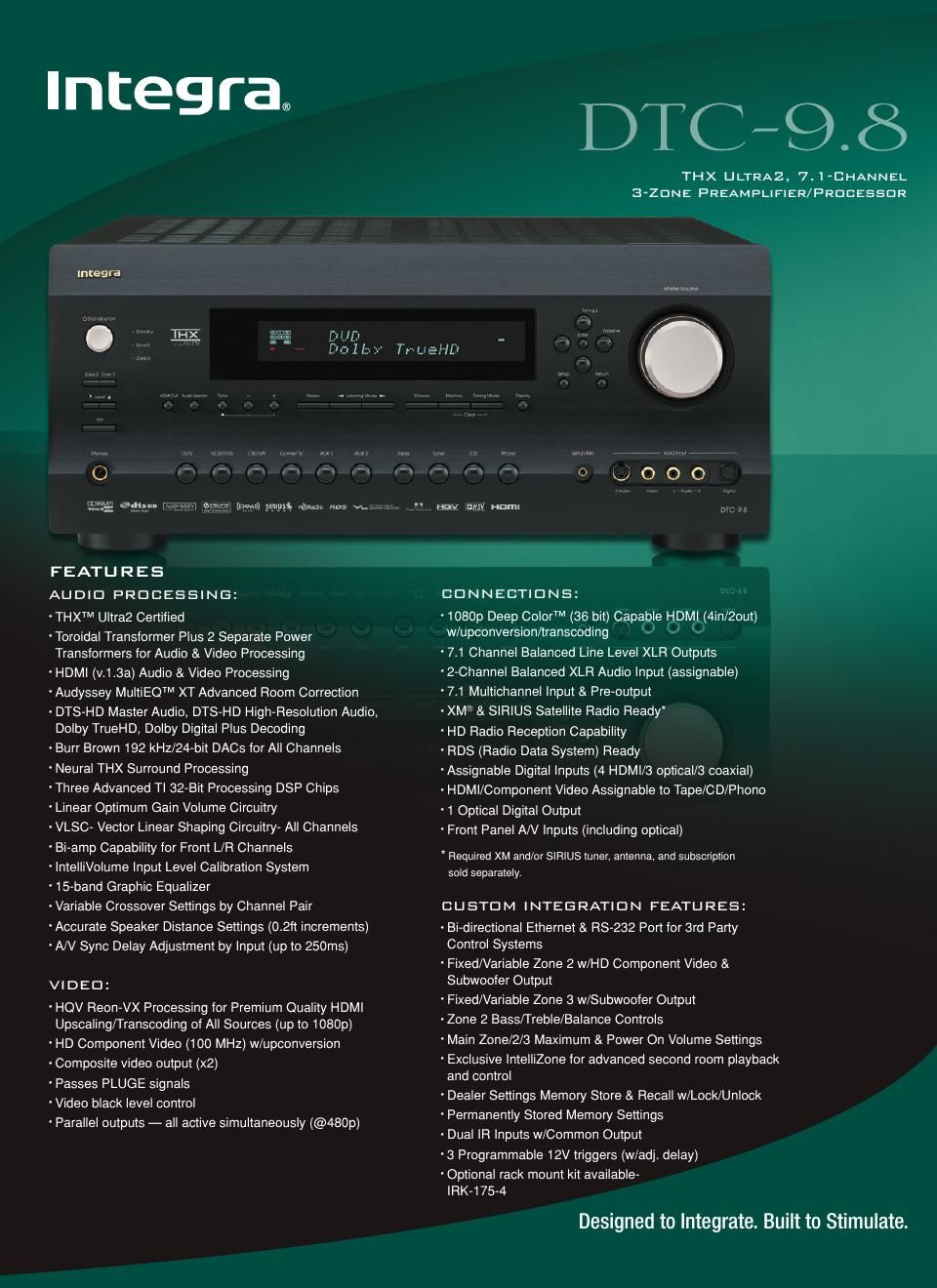

THX Ultra2, 7.1-Channel
3-Zone Preamplifier/Processor
DTC-9.8
