Designed to Integrate. Built to Stimulate.
SPECIFICATIONS
AMPLIFIER
Continuous average power output
(FTC Power, Rated Power) (Measured with AES-17 LPF)
Front L/R:
120 Watts per channel min. RMS. Into 8 Ω 2 channels driven, from 20 to 20,000 Hz with no more than 1% total harmonic distortion.
240 Watts per channel min. RMS. Into 4 Ω 2 channels driven, 1,000 Hz with no more than 1.5% total harmonic distortion.
Center:
120 Watts min. RMS. Into 8Ω 1 channel driven, from 20 to 20,000 Hz with no more than 1% total harmonic distortion.
240 Watts min. RMS. Into 4Ω 1 channel driven, 1,000 Hz with no more than 1.5% total harmonic distortion.
Surround L/R: 120 Watts per channel min. RMS. Into 8 Ω 2 channels driven, from 20 to 20,000 Hz with no more than 1% total harmonic distortion.
240 Watts per channel min. RMS. Into 4 Ω 2 channels driven, 1,000 Hz with no more than 1.5% total harmonic distortion.
Surround Back: 120 Watts per channel min. RMS. Into 8 Ω 2 channels driven, from 20 to 20,000 Hz with no more than 1% total harmonic distortion.
240 Watts per channel min. RMS. Into 4 Ω 2 channels driven, 1,000 Hz with no more than 1.5% total harmonic distortion.
Dynamic Power Output: 2 x 350 Watts at 2 Ω 2 x 267 Watts at 4 Ω 2 x 162 Watts at 8 Ω
Total Harmonic Distortion: 1% at rated power (1 kHz), 0.01% at 1 watt output (1 kHz) (Measured with AES-17 LPF)
Frequency Response: 10 Hz to 60 kHz : +1 dB/ -“3 dB (8Ω)
Signal to Noise Ratio: 115 dB (IHF-A, 1 V input/Unbalanced or 2 V input/Balanced)
Damping Factor: 25 at 8 Ω 1 kHz
INPUTS
Terminals: Analog balanced (XLR type) x 7, Unbalanced (RCA type) x 7
Sensitivity and Impedance: 1 V, 5 k Ω (Unbalanced) 2 V, 10 k Ω (Balanced)
Control: 5 - 12V DC trigger
OUTPUTS
Analog outputs: Speakers x 7
GENERAL
Power Supply: AC 120 V, 60 Hz
Power Consumption: 5.3 A
Dimensions (W x H x D): 17-1/8 x 6-7/8 x 17-13/16
Weight: 39.0 lbs.
Optional mounting kit: IRK-155-4
U dimension: 4U
Product features and specifications subject to change without notice.

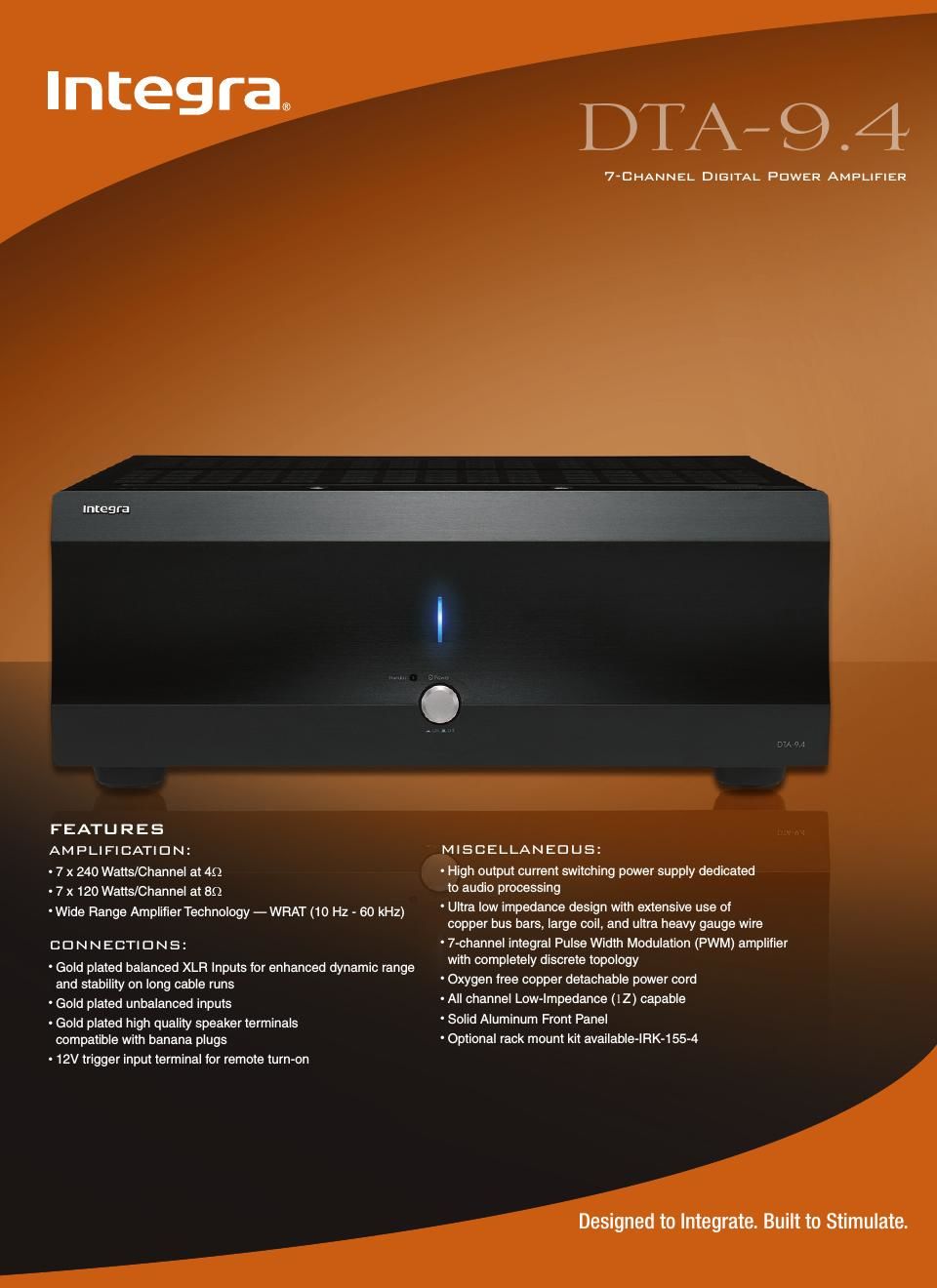

7-Channel Digital Power Amplifier
DTA-9.4
