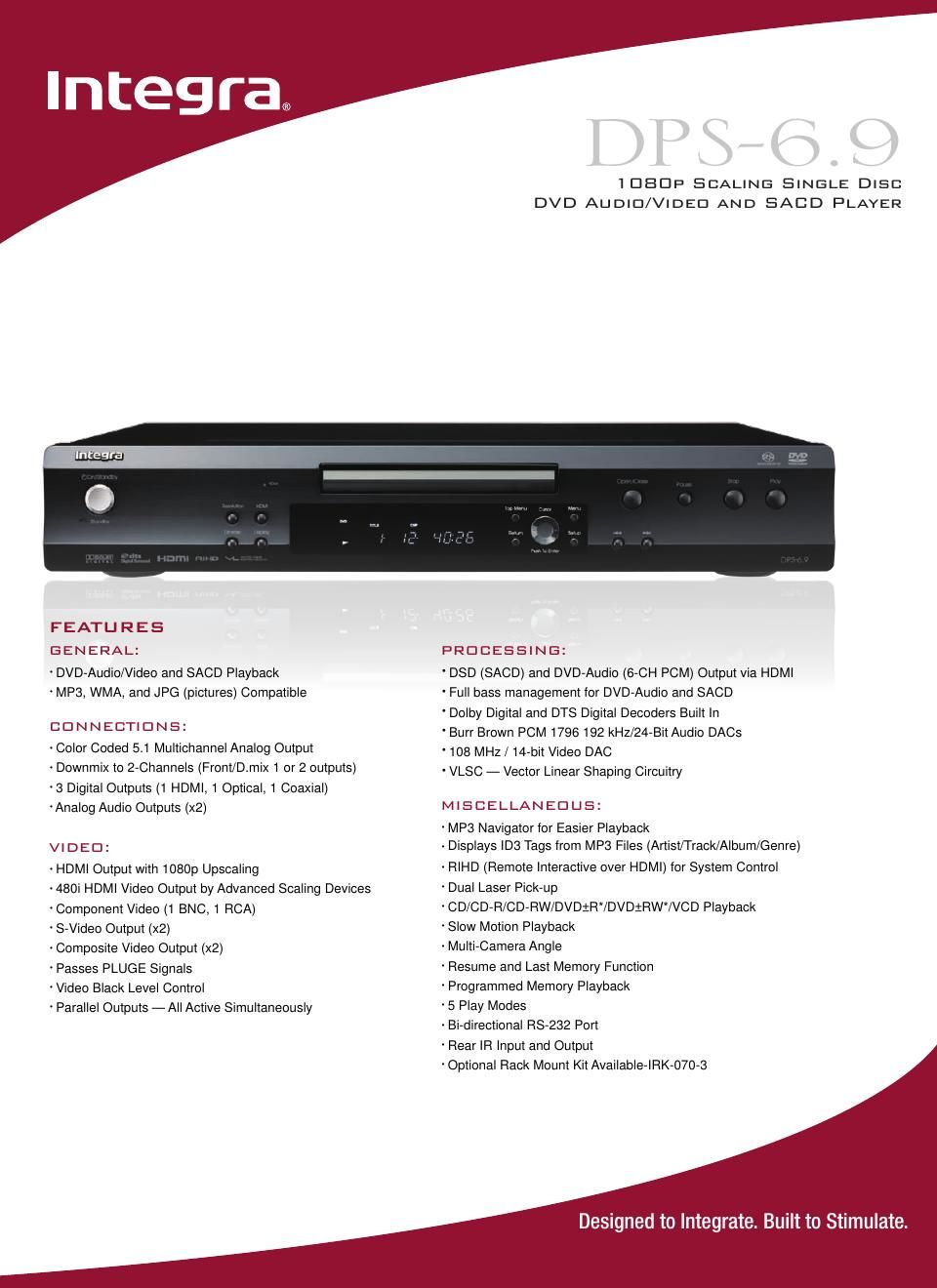

Page 1
1080p Scaling Single Disc
DVD Audio/Video and SACD Player
Due to a policy of continuous product improvement, Integra reserves the \
right tochange specifications and appearance without notice.
09/2008 Printed in the USA Designed to Integrate. Built to Stimulate.
www.integrahometheater.com
SPECIFICATIONS
AUDIO PERFORMACE
Frequency response:
DVD Audio: 4 Hz-88 kHz @ 192 kHz sampling rate
SACD Audio CD 4 Hz-50 kHz @ 192 kHz sampling rate
DVD linear audio: 4 Hz-22 kHz @ 48 kHz sampling rate
4 Hz-44 kHz @ 96 kHz sampling rate
CD audio: 4 Hz-20 kHz @ 44.1 kHz sampling rate
Signal-to-noise ratio (digital audio): 106 dB
Audio dynamic range (digital audio): 96 dB
Harmonic distortion (digital audio): 0.004% (1kHz)
Wow and flutter: Below measurable level
[±0.001% (w/peak) or less ]
VIDEO OUTPUTS
HDMI HD video conversion via HDMI
(to 720p 1080i, or 1080p)
Native mode via HDMI (480i) Component video: Y: 1.0 V (p-p), 75Ω, negative sync
RCA x 1, BNC x 1
PB/PR: 0.7 V (p-p), 75Ω
S-Video: Y: .7 V (p-p), 75Ω, negative sync
4-pin mini
C: 0.286 V (p-p), 75Ω
Composite video: 1.0 V (p-p), 75Ω, negative sync RCA
AUDIO OUTPUTS
Optical: -22.5 dBm, optical connector
Coaxial: 0.5 V (p-p), 75Ω, RCA
Analog: 2.0 V RMS, 440Ω, RCA
GENERAL
Power supply: AC 120 V, 60 Hz
Power consumption: 22 W
Dimensions (W x H x D): 17-1/8 x 3-3/16 x 12-1/4
435 x 80.4 x 311.6 mm
Weight: 8.2 lbs. (3.7 kg)
Optional mounting kit: IRK-070-3
U dimension: 2U
* Some formats not supported.
360 [14.17]
435 [17.13] 24 [.94]
80.4 [3.17]
70 [2.76]
49.5 [1.95]
DPS-6.9
