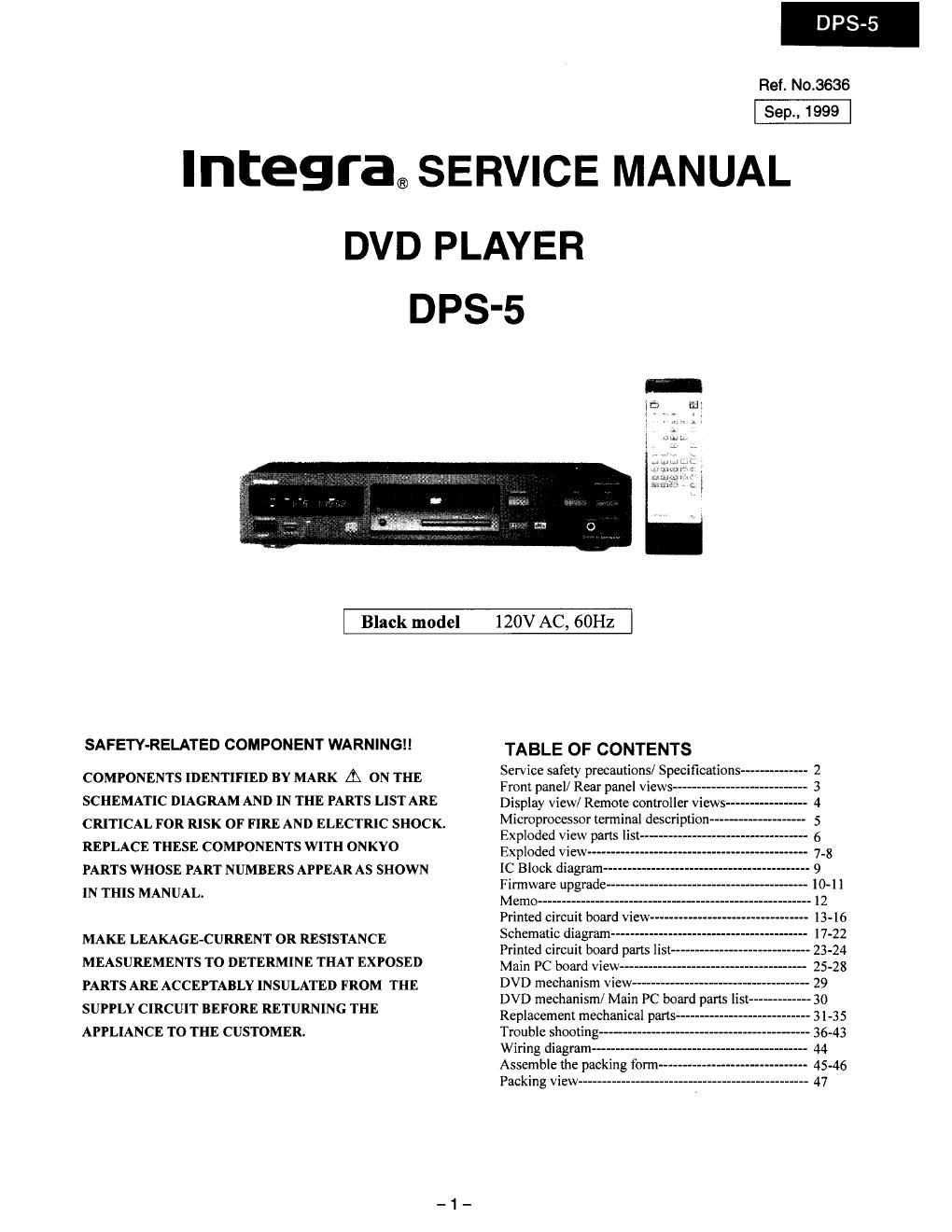

Page 1

DPS-5

Ref. No.3636

Integra® SERVICE MANUAL

DVD PLAYER

DPS-5

Black model

120v Ac, 60Hz |

SAFETY-RELATED COMPONENT WARNING"

COMPONENTS IDENTIFIED BY MARK [IX ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

TABLE OF CONTENTS

Service safety precautions/ Specifications-
Front panel/ Rear panel views ----------
Display view/ Remote controller views--
Microprocessor terminal deseription~
Exploded View parts list-
Exploded view-~-
[C Block diagram
Firmware upgrade
Memo --------------
Printed circuit board view-
Schematic diagram -------
Printed circuit board parts list
Main PC board view-um
DVD mechanism view
DVD mechanism/ Main PC board parts list
Replacement mechanical parts-
Trouble shooting-
Wiring diagram---
Assemble the packing form
Packing View -

Page 2

OPERATING INSTRUCTIONS
SAFETY PRECAUTIONS

WARNI NG

RISK OF ELEGTRIV SHOCK
DO NOT OPEN

RISGUE DE CHOC ELECTRIDUE NE
PAS OUVRIR

WARNING : TO REDUCE THE RISK. OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (0R BACK). N0 USERSERVICEABLE
PART INSIDE. REFER SERVICING T0
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol. within an equilateral triangle, is
intended to alert the user to the presence of uninsuiated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) imtruotion
in the literature accompanying the appliance.

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. FULLY INSERT.

ATTENTION : POUR EVITER LES CHOCS ELECTRIQUE. INTRODUIRE LA LAME LA PLUS LARGE DA LA FICHE DANS LA
BORNE CORRESPONDANI'E DA LA PRISE ET POUSSER JUSQU' AU FOND.

PRECAUTIONS

Replacing the fuses

For continued protection against risk fire, replace only
with same type and same rating fuse.

CIRCUIT No. PART No, DESCRIPTION
F901 252146 [.25A-TSC
F901 25207l l.25A~SE-EAWK

E This symbol located near the fuse indicates that the fuse
Bed is fast operating type. For continued protection against fire
hazard, repllee with some type fuse. For fuse rating refer to the
marking adjacent to the symbol.

E Ce symbole indique que le fusible utlise est a rapide.

Pour tine protection permnnente, nutiliser que des fusibles de meme
type. Ce dnnnier est indique la qu le present symbol est appose.

SPECIFICATIONS

DVD Player
Power supply UD : AC IN V, 60H:
UP. UPA AC230 VY SOHZ
UWT: AC220V-230V, 50/60Hz
Power consumption 25 W
Weight 2.8 kg, 8.4lbs.
Enema! dimensions 45 x 9] x 306 mm(W/H/D),
174/8 x 3-9/16" x 12-1/16" (W/H/D)
Signal system sumo NT$C
Laser Semiconductor laser, wavelength 650nm
Frequency range(digilnl audio) DVD linear scum 48 kHz sampling 4 Hz to 22 kHz
96 kHz sampling4 Hz to 44 kHz
Audio CD 4 Hz to 20 kHz

Sigml to noise rwddisital audio) Mole than 90 dB (EIAJ)
Audio dynamic maxdigital audio) More than 87 dB (EIAJ)
Harmonic distortion(digital audio) Less than 0.1 °/v

LASER BEAM CAUTION LABEL

IXV'Vr'fla 10W

mount)

Whe- in power lupply i. be... turned on. you my not "love Illln Iuer union
inner. rudillinl or. laser my in ma
Pickup Hem! mum ot- luer dim IL ery rueeeptlhle to .mmi ma: electricity.
Altlioi'i'I it operntu properly alter whee-cut, int Wu um t. acct-mutt: mange
during replica-eat. in iir. aim be shortened. Whu reducing, .u . eolduetlve mt.
mam-g inn with mud wire. etc. to pmlzct the Inter diode Inn: dI-ul by lutie
olmriclly.A-d trim. the Lst nd K am um I: move.

Output:
Video output 1.0 V (p-p), 75 D, newive sync, pinjack x l
S video output (Y) 1.0 V (iv-p)I 7511
(C) 0.286 V (p-p]. 75 0
Color different output (Y) 10 v (p-p), 75 n, negruive sync. pin jock x i

(Chi/(Cr) 0.7 V (p-p), 7s 0
Audio output (Optical audio) Opllcfl connector x I
Audio output (Digital audio] 0.5 V (pp), 750, pin jack x I
Audio output (Analog audio) 2.0 V (ms), 4709, pin jack(L. R) x l
Headphone terminal 32 Q ( lOrnW), impedance; more than 8 Q

' Designs and specifications are subject to change without notice,

Wow Ind flutter Below measurable level (less than 10.00] "/1: (WPEAKD (EIAJ)

Operating conditions Temperature . S C to 35 C(4l to 95 Degree),
Operation status: Horizontal
