SPECIFICATIONS
AUDIO PERFORMAnCE
Frequency Response,
DVD Linear Sound: 4 Hz-44 kHz @ 96 kHz sampling rate
4 Hz-22 kHz @ 48 kHz sampling rate
CD audio: 4 Hz-20 kHz @ 44.1 kHz sampling rate
Wow and flutter: Below measurable level
VIDEO OUTPUTS
HDMI 19-pin connector
Component video: Y: 1 Vp-p/75 ohms Pb/Pr: 0.7 Vp-p/75Ω
Composite video: 1.0 V (p-p), 75Ω, negative sync
AUDIO OUTPUTS
Optical: -22.5 dBm, optical connector
Coaxial: 0.5 V (p-p), 75Ω, RCA
Analog: 2.0 V RMS, 1kΩ, RCA
GENERAL
Power supply: AC 120 V, 60 Hz
Power consumption: 30 W
Dimensions (W x H x D): 17 1/8˝ x 3 1/4˝ x 14 1/8˝
435 x 82.3 x 359 mm
Weight: 9 lbs. (4.1 kg)
Optional mounting kit: IRK-080-3B
U dimension: 2U
* Some formats not supported.

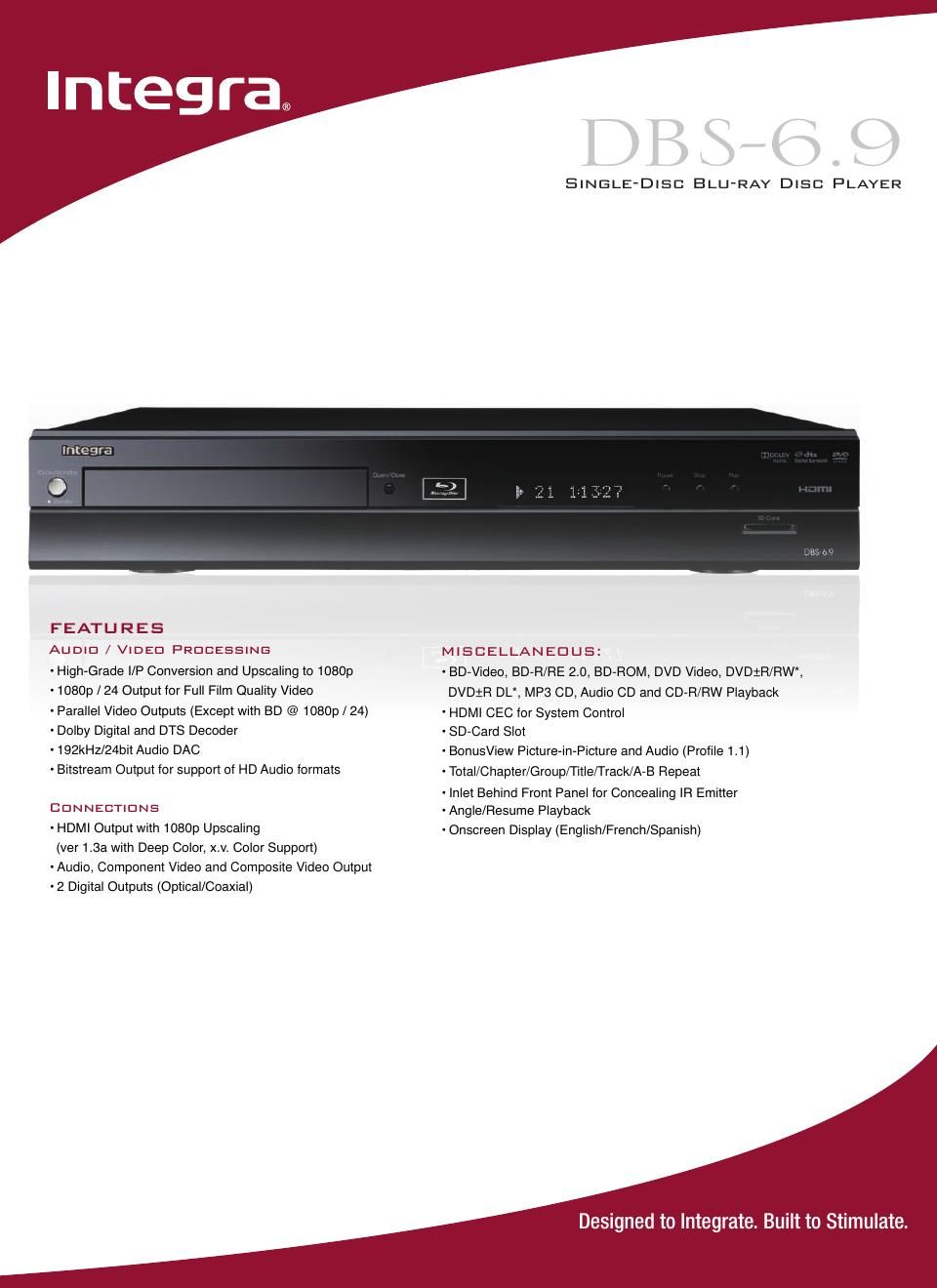

Single-Disc Blu-ray Disc Player
Designed to Integrate. Built to Stimulate.
www.integrahometheater.com
312 [12.28]
435 [17.13] 359 [14.13]
334.2 [13.16]
64.8 [2.55]
52 [2.05] 17.7 [.7]
223 [8.78]
Due to a policy of continuous product improvement, Integra reserves the right to
change specifications and appearance without notice.
All trademarks are the property of their respective holder
09/2008 Printed in the USA
DBS-6.9
DBS-6.9
