HARMAN International Industries, Incorporated8500 Balboa Boulevard, Northridge, CA 91329 USAwww.infinityspeakers.com
Center channel loudspeaker ideally suited for music and home theater systems
The RC252s slender profile allows for flexible placement within your entertainment system. It is
sonically matched to companion Reference Series floorstanding, bookshelf and surround loudspeakers
and powered subwoofers allowing you to create the ideal system solution for your needs.
1" (25mm) CMMD -’ tweeter with advanced waveguide
The combination of the acoustical science and patented designs found in the 1" (25mm) CMMD -’
(Ceramic Metal Matrix Diaphragm) tweeter and advanced waveguide provides seamless sonic
integration with the CMMD -’ woofers while providing excellent high-frequency detail and smooth
coverage across a wide listening area.
Dual 5.25 " (130mm) CMMD -’ high-output woofers with sealed enclosure
Powerful bass is key to a high-quality sound experience and the strength of Infinitys extremely rigid
woofer cones - constructed from CMMD -’ (Ceramic Metal Matrix Diaphragm) - help to deliver a wide
frequency range with minimal distortion. These woofers work in conjunction with the sealed enclosure
to provide superior vocal and dialogue intelligibility and powerful deep bass that makes your music and
movies come alive.
Computer-optimized driver positioning and network integration
Infinitys advanced acoustical modeling design places the drivers in the ideal lo\
cation within the cabinet
allowing them to work with the enclosure and not against it. The advanced positioning and crossover
network integration reduce harmful sonic artifacts that would otherwise detract from the overall
performance of the loudspeaker. The end result is balanced, accurate sound with lifelike imaging and
soundstage that brings the musical performance right into your home.
Sleek, contemporary enclosure design
The slim profile of the RC252 is complemented with a rich, black woodgrain finish and hidden fasteners
that provide for a clean look that blends easily with any dΓ©cor.
Elegant design details
The waveguide, midrange and woofers feature black chrome trim rings while the waveguide surface is finished
with a rich, soft-touch paint. The silver phase ring highlights the CMMD -’ tweeter mated to the waveguide.
Designed and engineered in Northridge, California
Infinity loudspeakers are designed and engineered in Northridge, California at our world-renowned Acoustic
Engineering Center of Excellence. Every new product is evaluated and scrutinized against the competition
and our own stringent standards to ensure that its acoustic performance is best-in-class.
Whats in the box:
RC252 center channel loudspeaker x 1
Rubber cushions x 4
Owners Manual
Product specifications:
2.5-way dual 5.25" (130mm) center
channel loudspeaker
Proprietary Ceramic Metal Matrix Diaphragm
(CMMD -’) technology
Dual 5.25" (130mm) CMMD -’ high-output
woofers
1" (25mm) CMMD -’ tweeter with advanced
image control waveguide
Frequency response: 58Hz - 22kHz
Sensitivity: 87dB
Recommended amplifier power:
20 - 150 Watts
Nominal impedance: 6 Ohms
Dimensions H x W x D:
6-3/4" x 20-7/16" x 8-5/8"
(171mm x 519mm x 219mm)
Weight: 16.6lb (7.5Kg)
Β© 2014 HARMAN International Industries, Incorporated. All rights reserved. Infinity and CMMD are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice.

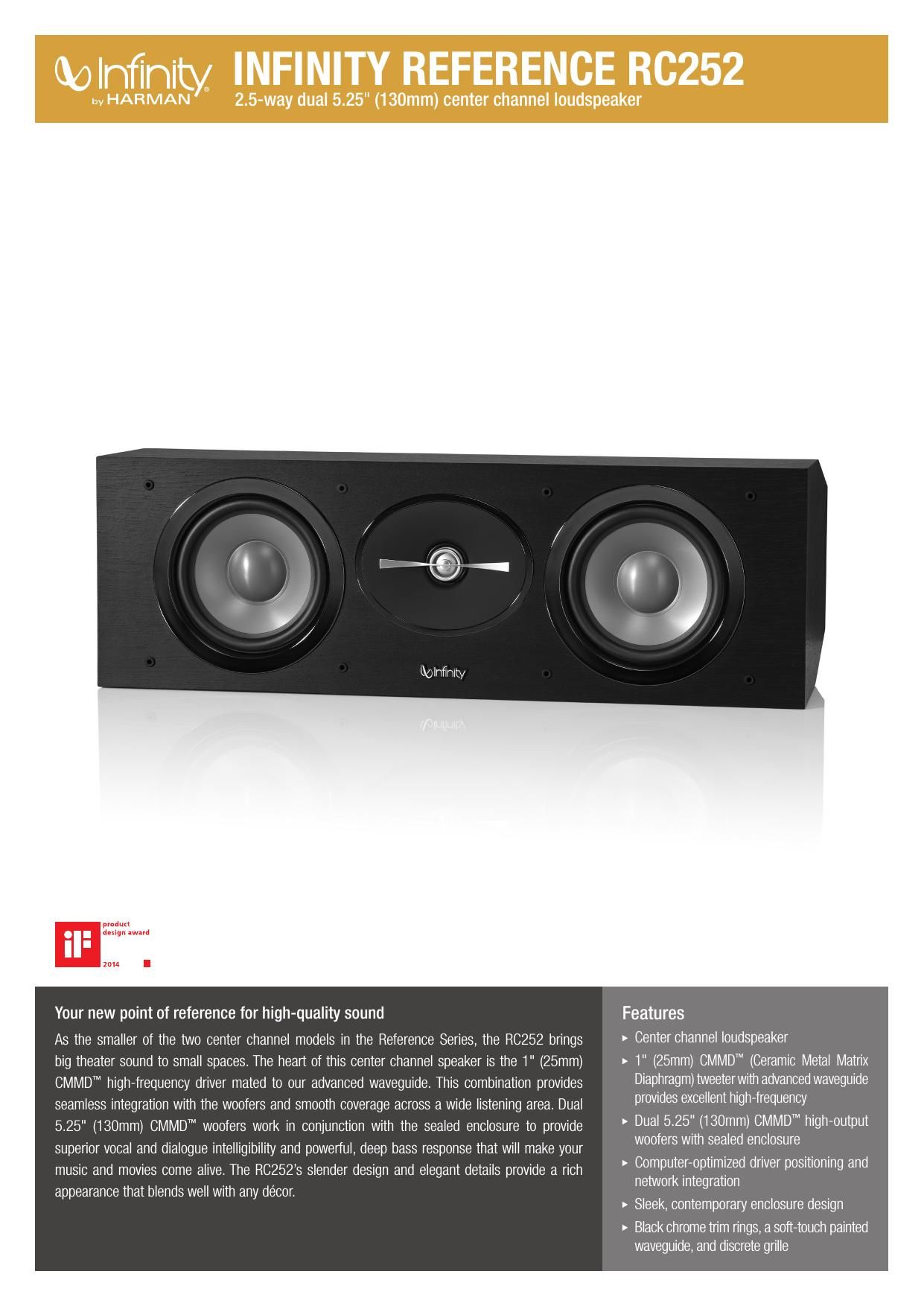

INFINITY REFERENCE RC252
2.5-way dual 5.25 " (130mm) center channel loudspeaker
