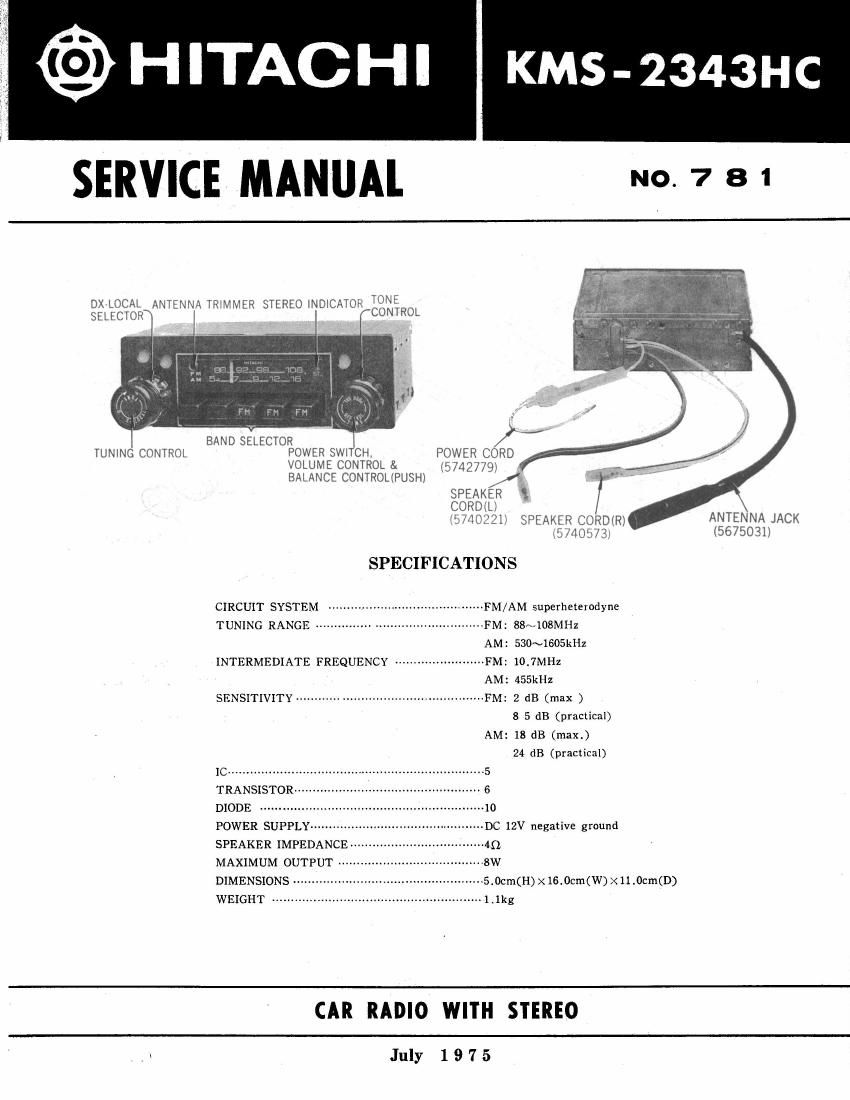

This is the 8 pages manual for Hitachi KMS 2343 HC Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
INSTALLATION
--RADIO-
1.
Remove the masking plate from the radio installing hole
on the instrument panel.
. Install the cramp and the bracket (A) in the rear side of
the radio with 5mmpx10rnm setiscrew.
. Install the radio in the instrument panel from the under
side of radio with two 9mm}?! washers, two QnimyK nuts
5m¢X10mm SET-SCREW
CRAMP
/ BRACKETW
\r
a go ,_
\ _
,/
,/
/
/.
\.
\
\
BRACKETlB)
6m¢ WASHER '
6m SPRING WASHER / \
5mm¢X8mmSET~SCREW 6M¢><12m BOLT
\
-ANTENNA~
1 .
Remove the seal cap and Washer from the antenna
installing hole on the roof of the car.
. Peel off the seal from the inside of the right front fender
just at the rear of the dashboard.
. Route the antenna cable through the antenna installing
_2,
and 4 knobs.
. Install the bracket (B) in the bracket (A) with 5mm¢><
8mm set-screw, and install it to the car board with
6mmizf X 12mm bolt.
. Connect the radio power cord to the power connector
provided in the instrumrnt wire harness.
INSTRUMENT PANEL
9mn¢ WASHERS
9nm¢ NUT
\
hole and hole in the passenger compartment.
4. Install the antenna with two 4mm¢><12mm pan-head
screw and two 4mmp washers.
5. Connect the antenna cable to the antenna cable of the
radio
ANTENNA
ANTENNA WIRE
CONNECTOR
