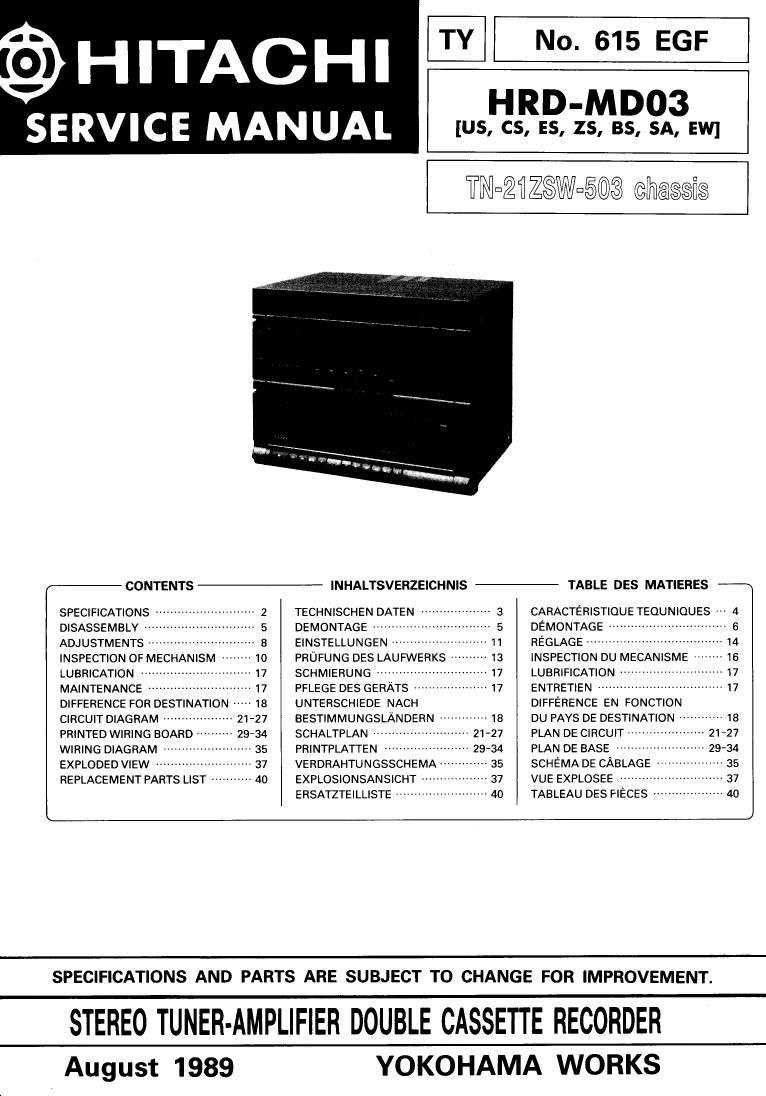

E§) HITACHI TY No. 615 EGF
SERVICE MANUAL [usflfigzfl'ififim
TNnQIZ§Wc5©3 ©R-IS$E§
CONTENTS-~- INHALTSVERZEICHNIS - TABLE DES MATIERES
SPECIFICATIONS -------------------------- 2 TECHNISCHEN DATEN ~~~~~~~~~~~~~~~~~~~ 3 CARACTERISTIQUETEOUNIOUES 4
DISASSEMBLY »- 5 DEMONTAGE -------- DEMONTAGE 5
ADJUSTMENTS -
INSPECTION OF MECHANISM --
REGLAGE ------
INSPECTION DU MECANISME --
' 8 EINSTELLUNGEN
-- 10 PRUFUNG DES LAUFWERKS
LUBRICATION ,. ~~ 17 SCHMIERUNG LUBRIFICATION
MAINTENANCE 17 PFLEGE DES GERATS " ENTRETIEN -----
DIFFERENCE FOR DESTINATION --- 18 UNTERSCHIEDE NACH DIFFERENCE EN FONCTION
14
-- 16
17
u I7
CIRCUIT DIAGRAM """"""""" 21-27 BESTIMMUNGSLANDERN DU PAYS DE DESTINATION ------------ 18
PRINTED WIRING BOARD - 29*34 SCHALTPLAN ----- PLAN DE CIRCUIT -- 21 27
WIRING DIAGRAM ------------------- 35 PRINTPLATTEN ,. PLAN DE BASE - 29-34
EXPLODED VIEW ---------------- 37 VERDRAHTUNGSSCHEMA SCHEMA DE CABLAGE
REPLACEMENT PARTS LIST EXPLOSIONSANSICHT - VUE EXPLOSEE -------
ERSATZTEILLISTE ~~~~~~~~ TABLEAU DES PIECES 4
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT.
STEREO TUNER-AMPLIFIER DOUBLE CASSETTE RECORDER
August 1989 YOKOHAMA WORKS
HRD-MD03
SAFETY PRECAUTIONS
The following precautions should be observed when servicing.
1. Since many parts in the unit have special safety»re|ated characteristics, always use genuine Hitachi's
replacement parts. Especially critical parts in the power circuit block should not be replaced with other makers.
Critical parts are marked with A in the circuit diagram and printed wiring board.
2. Before returning a repaired unit to the customer, the service technician must thoroughly test the unit to
ascertain that it is completely safe to operate without danger of electrical shock.
SPEC/FICA TIONS
O G ENERAL
Power supply: ACi 20V, 60 Hz [for US, CS]
Power consumption:
Dimensions:
Weight:
0 AMPLIFIER SECTION
Audio output:
Music power output:
Tone control:
Input sensitivity and
Impedance:
signal to noise ratio:
(IHF-A network)
Output Impedance:
.TUNER SECTION
Circuit system:
ACZZOV, 50 Hz [for ES, ZS]
AC240V, 50 Hz [for 83. SA]
AC110-120/200-220/230-240V.
50/60 HZ [for EWI
145W [for US. CS]
150W [except US, CS]
370 (W) x296 lH) x300 (D) mm
6.6 kg [for SA]
6.5 kg [except SA]
30 Watts per channel, min. RMS. atB ohms
from 100 Hz to 10 kHz, with more than 2%
total harmonic distortion.
[for US, CS]
30W x 2 (8 ohms, T.H.D. 5%
both channel driven. 1 kHz)
[except US, CS]
60W x 2 (8 ohms, 1 kHz)
is :13 (at 63 Hz. 250 Hz, 1 kHz,
4 kHz, 16 kHz)
PHONO 3.5 mV/50 kohms [except BS]
PHONO 24D mVI760 1(0th [for BS]
CD 200 mV/30 kohms
PHONO 70 dB
CD 80 dB
Speaker 8-16 ohms
Headphones 8 ohms
FM/AM 2 bands
superheterodyne [except BS, ES]
FM/MWILW 3 bands
superheterodyne [for BS, ES]
Tuning range: FM 87.5- 108 MHz (50 kHz steps)
[except US, CS, SA]
SIS-107.9 MHz (100 kHz steps)
[for US. CS, SA]
AM (MW) 522-1,61I kHz (9 kHz steps)
[except US. CS. EWI
530-1520 kHz (10 kHz steps) [for US, Cl
522-1,611/530-1,620 kHz (9/10 kHz
steps)
[for EW]
LW153-231 kHz (1 kHz steps)
[for BS, ES]
FM stereo separation: 30 dB
Sensit Ity: FM 1 ,uVIS/N 26 dB) [except US. CS]
l,uV(S/N 30 dB) [for US. CS]
AM(MW) 600 pV/m (SIN ZOdB)
LW 2,500 yV/m (SIN ZDdB) [for BS, ES]
FM signal to noise ratio: 60 dB
Antennas: FM: External antenna (aerial)
AM(MW/LW): Loop antenna outdoor antenn
O TAPE DECK SECTION
Tape: Cassette tape
Tapeweed: 4.75 cm/s
Recording system and
bias Irequency: AC bias, 85 kHz
Track system: racks Zchannels
Erasing system: AC erase
Frequency Response: Normal 70-14,000 Hz
CrOz 70-14000 Hz
Signal to noise ratio: Dolby NR ON 58 dB
OFF 50 dB
Crosstalk: 60 dB
Erase ratio: 65 dB
Motor: DC motor
Wow and Flutter: 0.25% (WRMS)
Measured pursuant to the Federal Trade Commission's Trade Regulation Rult
on Power Claims for Amplifiers.
