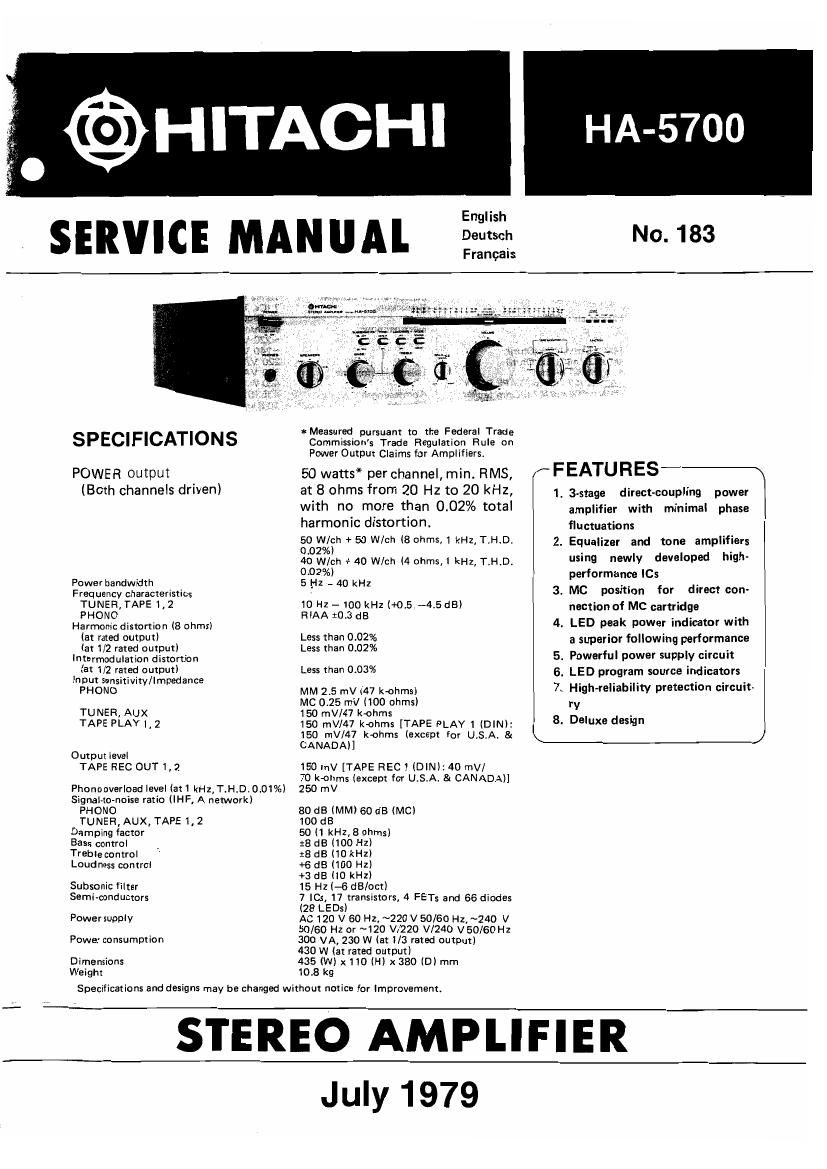

HA-5700
English
Deutsch
Francais
No. 183
SPECIFICATIONS
POWER output
(Both channels driven)
Power bandwidth
Frequency characteristics
TUNER, TAPE 1,2
PHONO
Harmonic distortion (8 ohms)
(at rated output)
Iat 1/2 rated output)
lntermodulation distortion
(at 1/2 rated output)
Input sensitivity/Impedance
PHONO
TUNER, AUX
TAPE PLAY 1, 2
Output level
TAPE REC OUT 1, 2
Phonooverload level Iatl kHz,TiH.D.D,01%)
SignaHo-noise ratio (IHF, A network)
PHONO
TUNER, AUX, TAPE 1, 2
Damping factor
Bass control
Treble control
Loudness control
Subsonic filter
Semi-conductors
Power supply
Power consumption
Dimensions
Weight
*Measured pursuant to the Federal Trade
Commissions Trade Regulation Rule on
Power Output Claims for Amplifiers.
50 watts* per channel, min. RMS,
at 8 ohms from 20 Hz to 20 kHz,
with no more than 0.02% total
harmonic distortion.
so W/ch + so W/ch (3 ohms, 1 kHz, T.H.Dl
0.02%)
40 chh + 40 W/ch (4 ohms,l kHz. T.H.D.
002%)
5 Hz , 40 kHz
10 Hz - 100 kHz («Li-4.5 dB)
RIAA 10.3118
Less than 0.02%
Less than 0.02%
Less than 0.03%
MM 25 mV (47 k-ohms)
MC 0.25 mV (100 ohms)
150 mVl47 kohms
15D mV/47 k-ohms [TAPE PLAY 1 (DIN):
150 mV/47 kohms (except for USA) 81
CANADA
150 mV [TAPE RECI (DIN): 40 mV/
70 k-ohms (except for U.S.A. 84 CANADA
250 mV
80 d8 (MM) 60 (15 (MC)
100 dB
50 (1 kHz, 8 ohms)
t8 dB (100 Hz)
:8 dB (10 kHz)
+6 dB (100 Hz)
+3 dB (10 kHz)
15 Hz (-6 dB/oct)
7 I65, 17 transistors, 4 FETs and 66 diodes
(28 LEDs)
AC12O V 60 Hz, ~220 VSO/SO HZ, ~240 V
50/60 Hz or ~120 V/220 V/240 V50/60 Hz
300 VA, 230 W (at 1/3 rated output)
430 W lat rated output)
435 (W) x 110 (H) x380 in) mm
10.8 kg
Specifications and designs may be changed without notice for Improvement.
FFEATURES
1. 3vsta9e direct-coupling power
amplifier with minimal phase
fluctuations
2. Equalizer and tone amplifiers
using newly developed high-
performance l6:
3. MC position for direct con-
nection of MC cartridge
4. LED peak power indicator with
a superior following performance
. Powerful power supply circuit
. LED program source indicators
7. High-reliability pretection circuit
rY
601
8. Deluxe design
STEREO AMPLIFIER
July 1979
