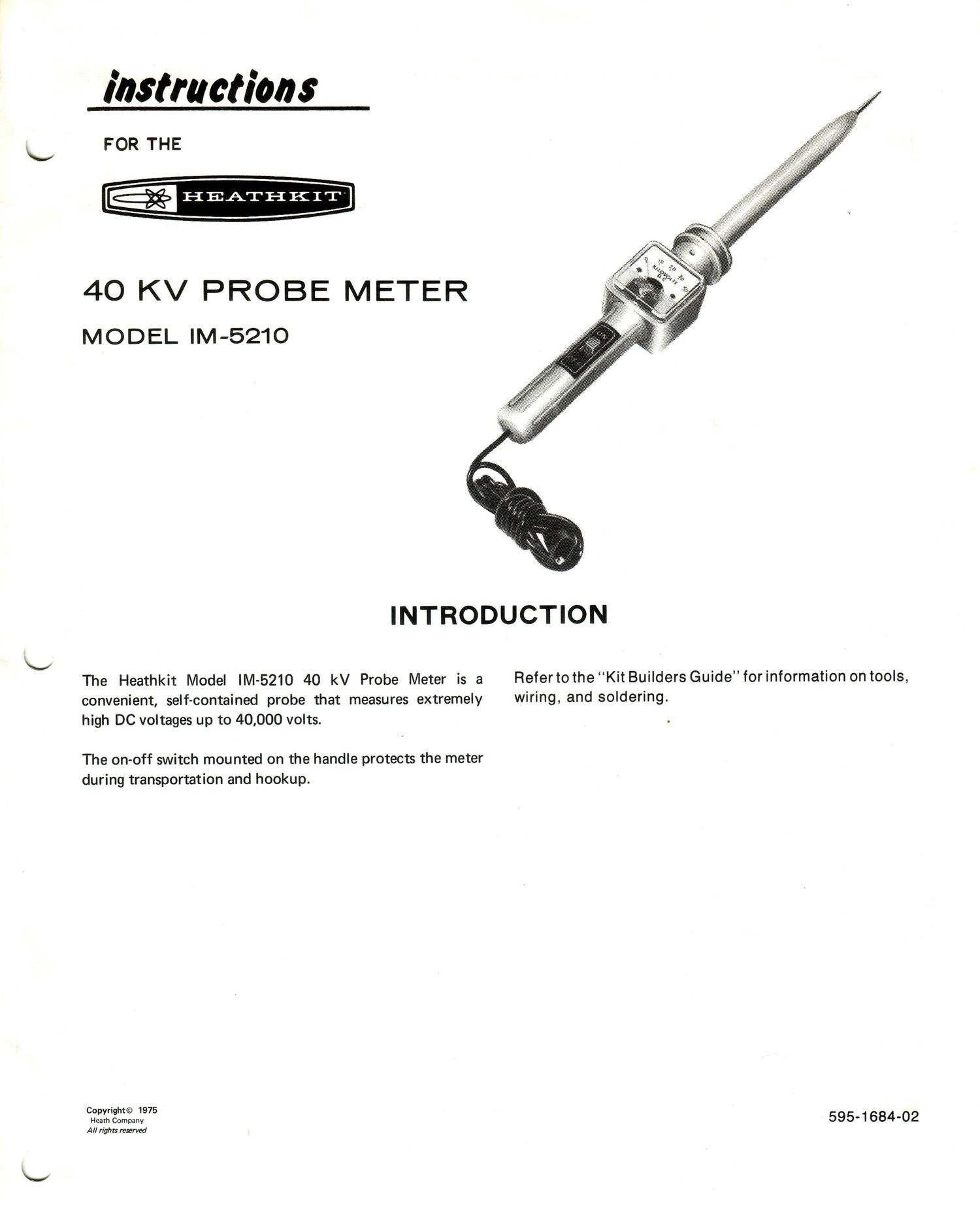

insml ctions
FOR THE
HEATHKIT
4O KV PROBE METER
MODEL IM-521O
INTRODUCTION
The Heathkit Model lM-5210 40 kV Probe Meter is a RefertotheKitBuildersGuideforinformation ontools,
convenient, self-contained probe that measures extremely wiring. and soldering.
high DC voltages up to 40,000 volts.
The on-off switch mounted on the handle protects the meter
during transportation and hookup.
Copyright© 1975 595-1684-02
Heath Company
All rights reserved
Page 3
- HEATHKIT®
@
- -- \k\\\\
T
\/
l /
l
I
l u
RED
SMALL WIR\E/
I IBLACK WIRE//
I A /-. \ \
SLIDE ////
SWITCH 02
10
x,
e\ l
M a
#6 x5/8
SELF-TAPPING
SCREW
\@
I
- - --¢-\\.\.\
STEP-BY-STEP ASSEMBLY
HEATHKIT
NAMEPLATE
SMALL
lBLACK WIRE
SWITCH ~
LABEL
Refer to Pictorial 1 for the following steps.
( I
NOTE: The Heath Company has provided a plastic nut
\I starter with this kit. Use the nut starter to hold and start the
nuts in the next step.
SPADE
LUG
#6
' Q 'LOCKWASHER
HANDLE
BOTTOM
6*.
R! /
é
/
HANDLE
TOP K
#2 X 1/4
SCREW
LARGE
BLACK WIRE
Mount the slide switch in the handle top with two
6-32 x 5/ 16" screws. Position the switch as shown.
SELFTAPPING
INSET
WRAPAND
SOLDER
BOOMQ
RESISTOR
/t
RUBBER
INSULATOR
#6
LOCKWASHER
\\\E3/
.Iv,
ALLIGATOR
CLIP
PICTORIAL 1
PROBE
TIP
%
/
///
_)
TIP
( ) Mount the meter in the handle top with the hardware
supplied with the meter. Position the meter so that the
meter scale is away from the switch. CAUTION: Do
not overtighten the meter hardware. This can damage
the meter case.
NOTE: As you prepare lengths of wire, as in the following
step, first cut the wire to the indicated length and remove
amount of solder on these bare wire ends.
1/4" of insulation from each end. Then twist together the
small strands of wire at each wire end and melt a small
