Page 1

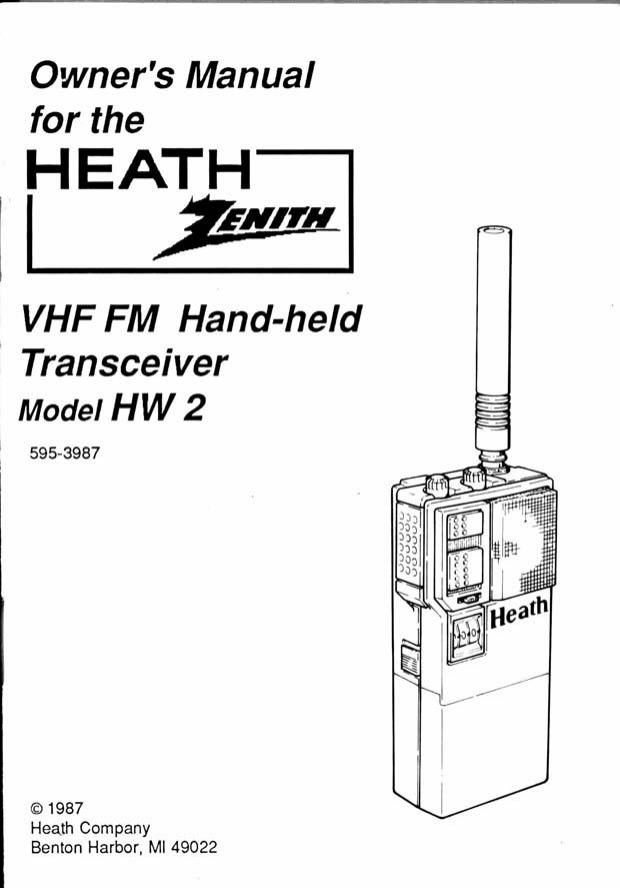

Owner's Manual
for the

HEATH

l ZINII'II
i

VHF FM Hand-held
Transceiver
Model H W 2

595- 3987

© 1987
Heath Company
Benlon Harbor, MI 49022

Page 2

Check that the lollowing are included in the transceiver package:

1. Owner's Manual and Warranty Card
2. Whip Antenna

3. Belt Clip

4. Handstrap (attached to transceivei)
5. Dust/Water Cap Assembly

.2.

Page 9

3 - LOW/HIGH - Selects transmitter power, LO - .4 W and High -2.0
W.

4 - Push to Talk - Pushing the PTl button stans transmission.
Releasing enables the receiver.

5 - OFFNOL - Combination power and receiver volume control.

6 -SOL- Squelch control. Clockwise direction increasesthe squelch
level.

7 - Flt/SIRZ - Repeater offset switch. In the 5 position the transmitter
and receiver frequencies are the same. In the R1 position. the
repeater offset (600 kHz) is subtracted from the thumb wheel (re-
ceive) frequency to obtain the transmit frequency. In the R2 position,
the repeater offset is added to the thumb wheel frequency to obtain
the transmit frequency.

- Switch on the power and turn the volume knob to about mid-scale.

- Slowly turn the squelch knob clockwise until no white noise is heard
from the internal speaker.

- To transmit, press the Pll' (Push To Talk) button. Release to
receive.
