Heathkit HG 10B Manual

This is the 45 pages manual for Heathkit HG 10B Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 45
left right
Heathkit HG 10B Manual

Extracted text from Heathkit HG 10B Manual (Ocr-read)

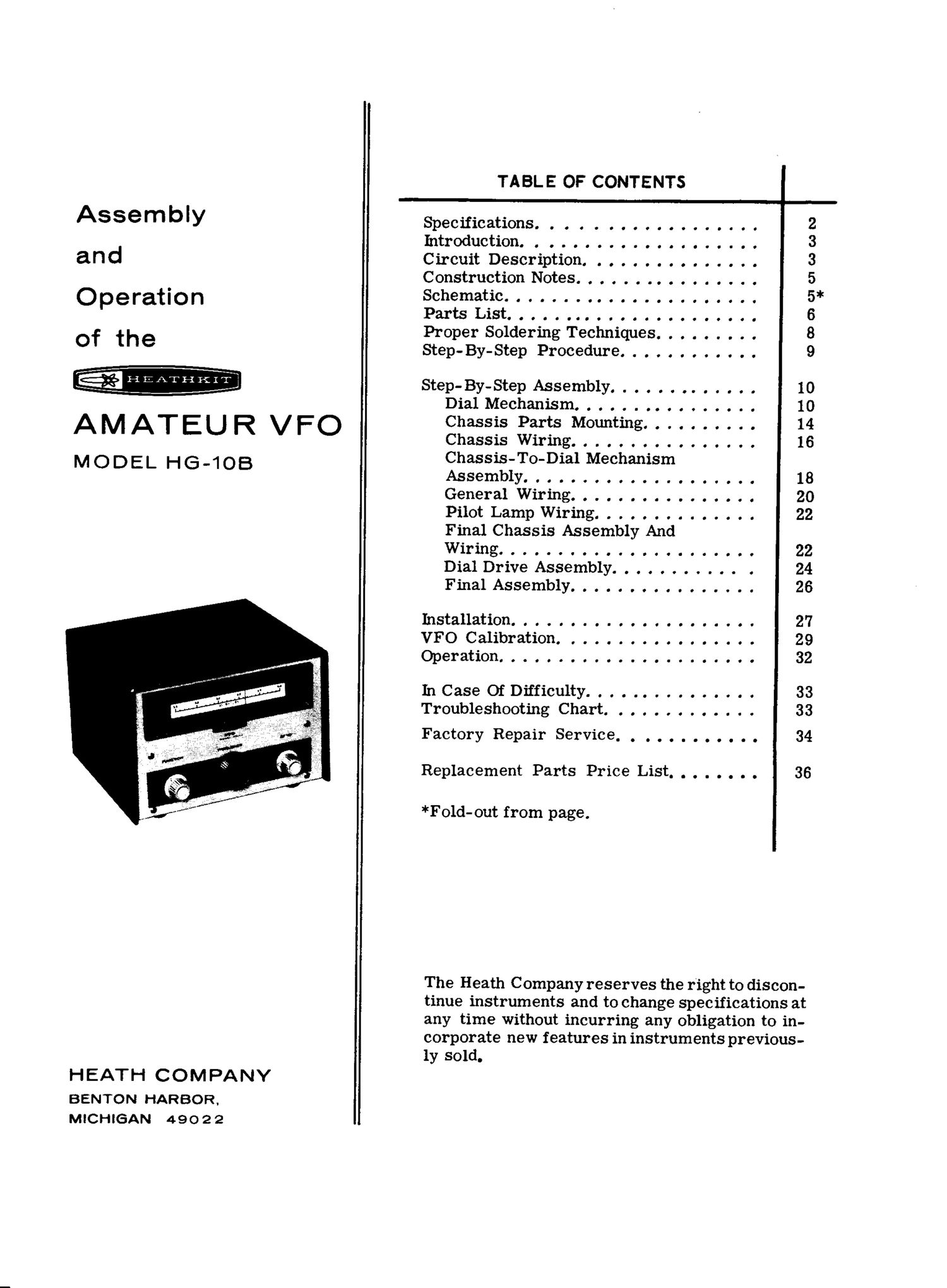

Page 1

TA BL E OF CONTENTS

Assembly Specifications ..... . ............ 2
Introduction. . ............ . ..... 3
and Circuit Description. . . . . . . . . ...... 3
Construction Notes ................ 5
O eration Schematic ................. . . . . . 5*
p Parts List ..... . . . ...... . ...... . 6
Proper Soldering Techniques ......... 8
Of the Step-By-Step Procedure ............ 9
@ Step- By-Step Assembly. ............ 10
Dial Mechanism. ............... 10
AM ATEU R VFO Chassis Parts Mounting .......... 14
Chassis Wiring ................ 16
M O D EL H G _1 08 ChaSSiS-TO-Dial MeChanism
Assembly .................... 18
General Wiring. . ............. . 20
Pilot Lamp Wiring .............. 22
Final Chassis Assembly And
Wiring ...................... 22
Dial Drive Assembly ........... . 24
Final Assembly ...... . ......... 26
Installation ..... . ............. . . 27
VFO Calibration. ................ 29
Operation ...................... 32
In Case Of Difficulty ............... 33
Troubleshooting Chart. ....... . . . . . 33
Factory Repair Service. . . . . . . . . . . . 34
Replacement Parts Price List, _ , , . . . . 36

*Fold- out from page.

The Heath Company reserves the right to discon-
tinue instruments and to change Specifications at
any time without incurring any obligation to in-
corporate new features in instruments previous-
ly sold.

HEATH COMPANY

BENTON HARBOR.
MICHIGAN 490 2 2

Page 2

Page 2

Band Coverage. . . . .

SPECIFICATIONS

0000000000000000

Load Impedance. . . . . . . .

Output Voltage.
Output Connector.

C ontrols .

Tube C omplement.

...............

IIIIIIIIII

Power Requirements. . . . . . . . . . .

Dimensions.

0000000000000

Net Weight...................

-I-IEATHKIT"
Band Dial Output
(Meters) Calibration gmc) Fre uenc mc

80 3.5 to 4 3.5 to 4
4O 7 to 7.4 7 to 7.425
20 14 to 14.8 7 to 7.425
15 21 to 22.2 7 to 7.425
10 28 to 29.7 7 to 7.425

6 50 to 54 8.333 to 9

2 144 to 148 8 to 8.222

50,000 8'2 or more.
5 volts rms, Open. circuit.

Phono-type socket.

FUNCTION switch (STBY-OPR-SPOT).
FREQUENCY (variable capacitor).
BAND switch.

1 - 6CH8, Oscillator-Cathode follower.
1 - 0B2, Voltage regulator.

108 volts DC at 25 milliamperes and 6.3
volts AC or DC at 0.75 ampere. (These voltages
are provided directly from the accessory sock-
et of the Heathkit DX-60A, the DX-BOB, and the
DX-40 Transmitters, or the HW-16 Transceiver;
a minor circuit change in the VFO is required
for the DX-40.

9-3/8 wide x 8-1/2" high x 9-1/8" deep

9-1/2 lbs.
