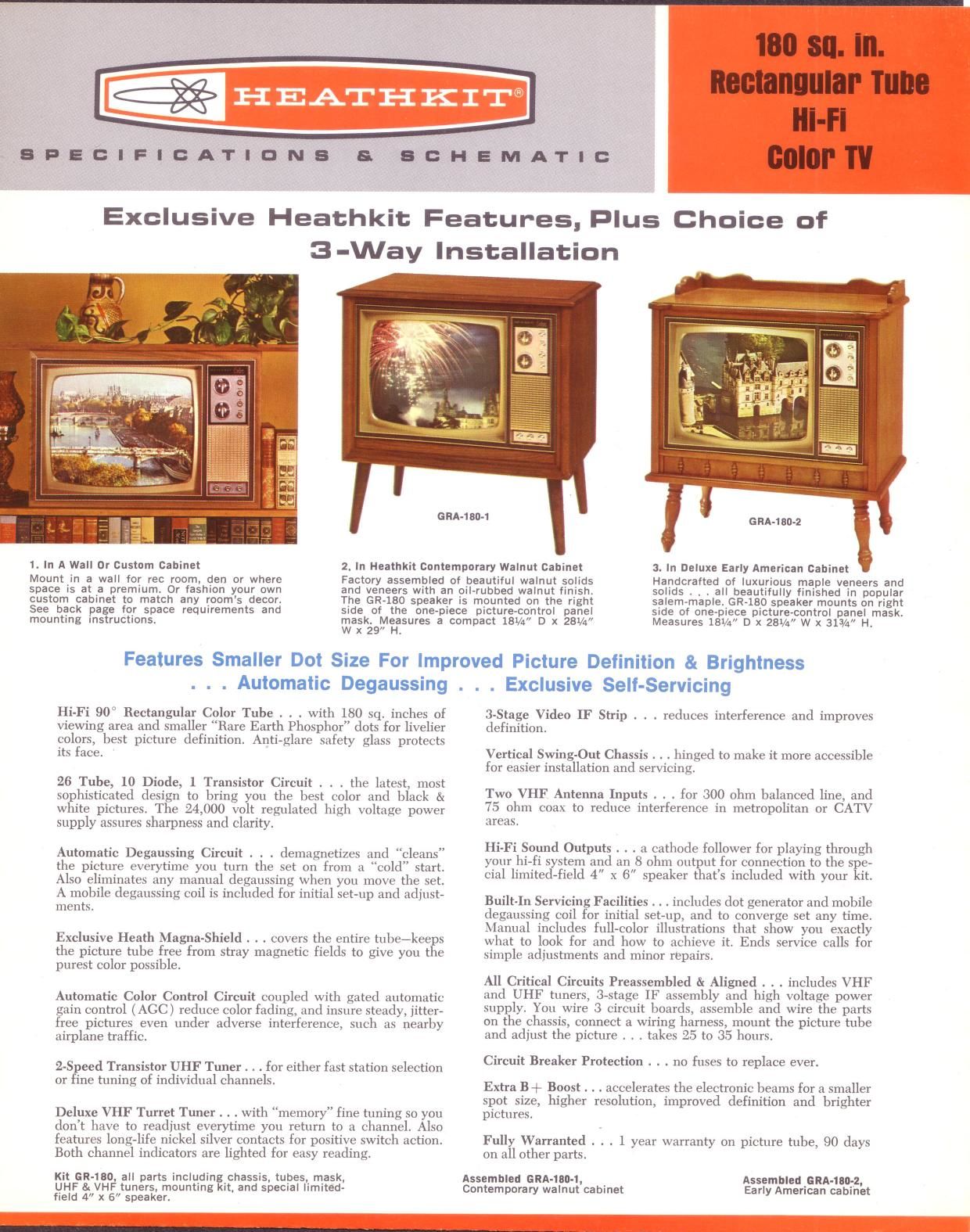

180 80. In.
Rectangular Tillie
Ill Fl
color TV
Exclusive Heachkit: Features, Plus Choice of
3-Way Installation
ERA-1804
:I. In Deluxe Early American Cabinet '
Handcrafted of luxurious maple veneers and
solids . , . all beautifully finished in popular
Salem-maple. GR-lao speaker mounts on right
side of one-piece picture-control panel mask.
Measures 181/4 D x 281/4 W X 313/4 H.
2. In Heathkit contemporary Walnut Cabinet
Factory assembled of beautiful walnut solids
and veneers with an oil-rubbed walnut finish.
The GR-lao speaker is mounted on the right
side of the one-piece picture-control panel
maskégMeasures a compact 181/4 D x 281/4
W x .
I. In A Wall 0r custom cabinet
Mount in a wall for rec room, den or where
space is at a premium. 0r tashion your own
custom cabinet to match any room's decor.
See back page for space requirements and
mounting instructions.
Features Smaller Dot Size For Improved Picture Definition & Brightness
. . . Automatic Degaussing . . . Exclusive Sell-Servicing
Hi-Fi 90 Rectangular Color Tube . . . with 180 sq. inches of 3-Stage Video IF Strip . . . reduces interference and improves
viewing area and smaller Rare Earth Phosphor" dots for livelier
colors, best picture definition. Anti-glare safety glass protects
its face,
26 Tube, 10 Diode, l Transistor Circuit . . . the latest, most
sophisticated design to bring you the best color and black &
white pictures The 24,000 volt regulated high voltage power
supply assures sharpness and clarity.
Automatic Degaussing Circuit . . . demagnetizes and cleans"
the picture everytime you turn the set on from a cold" start,
Also eliminates any manual degaussing when you move the set.
A mobile degaussing coil is included for initial set-up and adjust
ments.
Exclusive Heath Magna-Shield . . . covers the entire tubeekeeps
the picture tube free from stray magnetic fields to give you the
purest color possible.
Automatic Color Control Circuit coupled with gated automatic
gain control ( ACC) reduce color fading, and insure steady, jitterv
free pictures even under adverse interference, such as nearby
airplane traffic
2-Speed Transistor UHF Tuner . . . for either fast station selection
or fine timing of individual channels.
Deluxe VHF Turret Tuner . . . with memory" fine tuning so you
dont have to readjust everytime you return to a channel. Also
features long-life nickel silver contacts for positive switch action.
Both channel indicators are lighted for easy reading.
Kit (ER-180, all parts including chassis, tubes, mask,
UHF & VHF tuners, mounting kit, and special limitedv
field a" x 6 speaker.
definition.
Vertical Swing~0ut Chassis . hinged to make it more accessible
for easier installation and servrcmg,
Two VHF Antenna Inputs . . . for 300 ohm balanced line, and
75 ohm coax to reduce interference in metropolitan or CATV
areas.
Hi-Fi Sound Outputs . . . a cathode follower for playing through
your hi-fi system and an 8 ohm output for connection to the spe7
cial limited-field 4 x 6 speaker that's included with your kit.
Built-In Servicing Facilities . . includes dot generator and mobile
degaussing coil for initial se -up, and to converge set any time.
Manual includes full-color illustrations that show you exactly
What to look for and how to achieve it. Ends service calls for
simple adiustments and minor repairs
All Critical Circuits Preassembled 8i Aligned . . . includes VHF
and UHF tuners, 3-stagc IF assembly and high voltage power
supply You wire 3 circuit boards, assemble and wire the parts
on the chassis, connect a wiring harness, mount the picture tube
and adjust the picture . . . takes 25 to 85 hours
Circuit Breaker Protection . . . no fuses to replace ever.
Extra B+ Boost . . . accelerates the electronic beams for a smaller
spot size, higher resolution, improved definition and brighter
pictures.
Fully Warranted . . . 1 year warranty on picture tube, 90 days
on all other parts.
Assembled GRA-IBo-z,
Assembled GRA-lan-I.
Early American cabinet
Contemporary walnut cabinet
- ,
