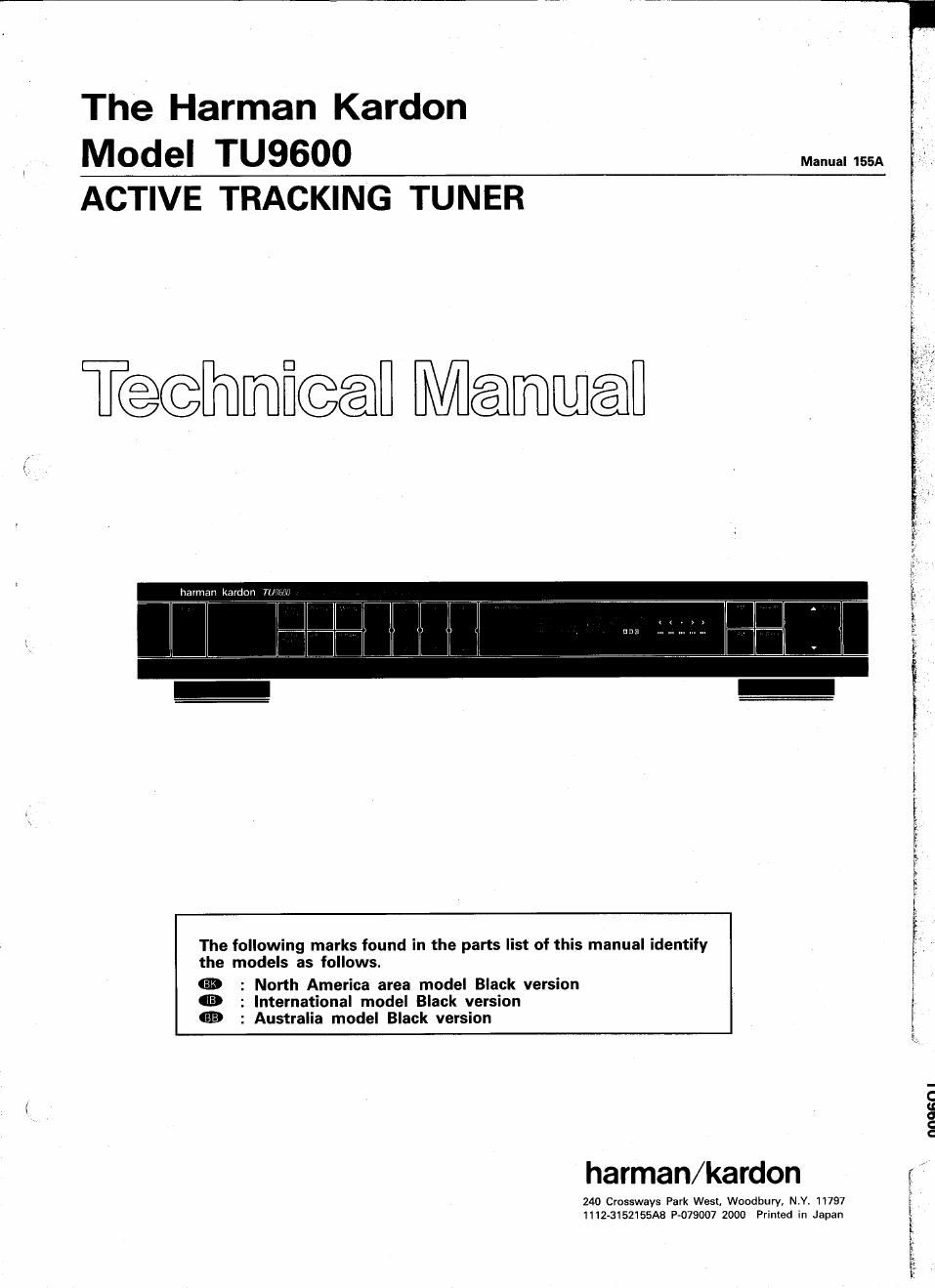

The Harman Kardon

Model TU9600 Mm. 155A
ACTIVE TRACKING TUNER

T@@mfi@@fl Mamafl

The following marks found in the parts list of this manual identify
the models as follows.
3 : North America area model Black version

3 : International model Black version
IE3 : Australia model Black version

V nnocn I

harman/kardon

240 Crossways Park West, Woodbury, N.Y. 11797
1112-3152155A8 F»079007 2000 Printed in Japan

V5,? WWW

Page 2

9600

8
CD
at
D
I'-

CONTENTS

SPECIFICATIONS
LEAKAGE TEST
CONTROLS & DISPLAYS
DISASSEMBLY PROCEDURES
POWER CORD REPLACEMENT
ALIGNMENT PROCEDURES
CIRCUIT DESCRIPTION -----
BLOCK DIAGRAM .......................................................

\ImathN

\J

SPECIFICATIONS

.FM SECTION Nominal Limit
Tuning Range 87.5 ~ 108,0MHz
SOdB Quieting Sensitivity

Stereo 37.2dBf é 41(48ldBf
Usable Sensitivity
Mono 11.7dBf é 15(17IdBf
Mono for active tracking 13.2dBf
Image Ratio 47dB ; 40(90idB
IF Rejection 85dB ; 75(100)d8
Spurious Response Rejection 96dB
Capture Ratio at 65dBf 1.2dB é 2dB
Alternate Channel Selectivity 45dB ; 40dB
for active tracking 78dB g 70dB
AM Rejection GOdB g 45dB
Signal to Noise Ratio
Mono 83dB z 77(71)dB
Stereo 75dB é 69(63IdB
Total Harmonic Distortion
(65dBf 1kHz Input) .
Mono , _ 0.09% § 0.3%
Mono for active tracking 0.2% é 0.5%
Stereo 0.07% é 0.5%

- Stereo for active tracking
Stereo Separation at IkHz

0.1% é 0.6%
58113 a 40(35idB

This figures in parenthesis ( ) in the FM section are specifications for
the International modelt

. IC TERMINAL FUNCTIONS

GENERAL UNIT

(EXPLODED VIEW, PARTS LlST)-~' -------------------------------- s
WIRING DIAGRAM
P.C. BOARDS ------- .
ELECTRICAL PARTS LIST .
IC BLOCK DIAGRAM

SCHEMATIC DIAGRAM'

0AM SECTION Nominal Limit
Tuning Range
North America area model
International and Australia

520 ~ 1,620kHz
531 ~ 1,602kH2

models
Usable Sensitivity 17me
Selectivity 55dB
Signal to Noise Ratio 53dB g 48dB
Image Rejection 40dB ; 30dB
IF Rejection 66dB ; 50dB

ODIMENSIONS (W x H x D) 17-3/8" x 2~7/ " X 13-1/ "
(442 x 73 x 342 mm)
OWEIGHT 7.5 lbs. (3.4 kg)
.POWER SUPPLIES
North America area model ACIZOV, 60Hz
International and Australia AC220I240V, 50/60Hz
models
OPOWER CONSUMPTION
North America area model 12W
International and Australia 12W
models

These specifications are Service target specs.

Specifications and components subject to change without notice.
Overall performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.)

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between the
chassis and other metal parts in the

TO EACH EXPOSED
METAL SURFACE OF
unit UNIT UNDER TEST ma...

2. Replace all protective devices such
as nonmetallic control knobs, in-
sulating fishpapers, cabinet backs,
adjustment and compartment covers
or shields, isolation resistor-
capacitor networks, mechanical in-
sulators, etc.

3. Be sure that no shock hazard exists; check for leakage current
using Simpson Model 229 Leakage Tester, standard equipment
item No. 21641, RCA Model WT540A or use alternate method as

follows:

Plug the AC line cord directly into a 120-volt AC receptacle (do not
use an Isolation Transformer for this test). Using two clip leads,
connect a 1500 ohm, 10-watt resistor paralleled by a 0.15pF
capacitor, in series with all exposed metal cabinet parts and a
known earth ground, such as a water pipe or conduit. Use a VTVM
or VOM with 1000 ohms per volt, or higher sensitivity to measure

SIMPSON MODEL 229 ETC, FOR
LEAKAGE TEST

T0 AC GROUND SUCH

AS WATER 0R GAS we,
GROUND ax CABLECONDUITETC.
VOLTAGE LEAD
OR +LEAD

6

VTVM
.0 AC SCALE 0-

1,5KOHM
10W

TEST PROBE

TO EXPOSED

CONNECT TO KNOWN
METAL PARTS

EARTH GROUND
