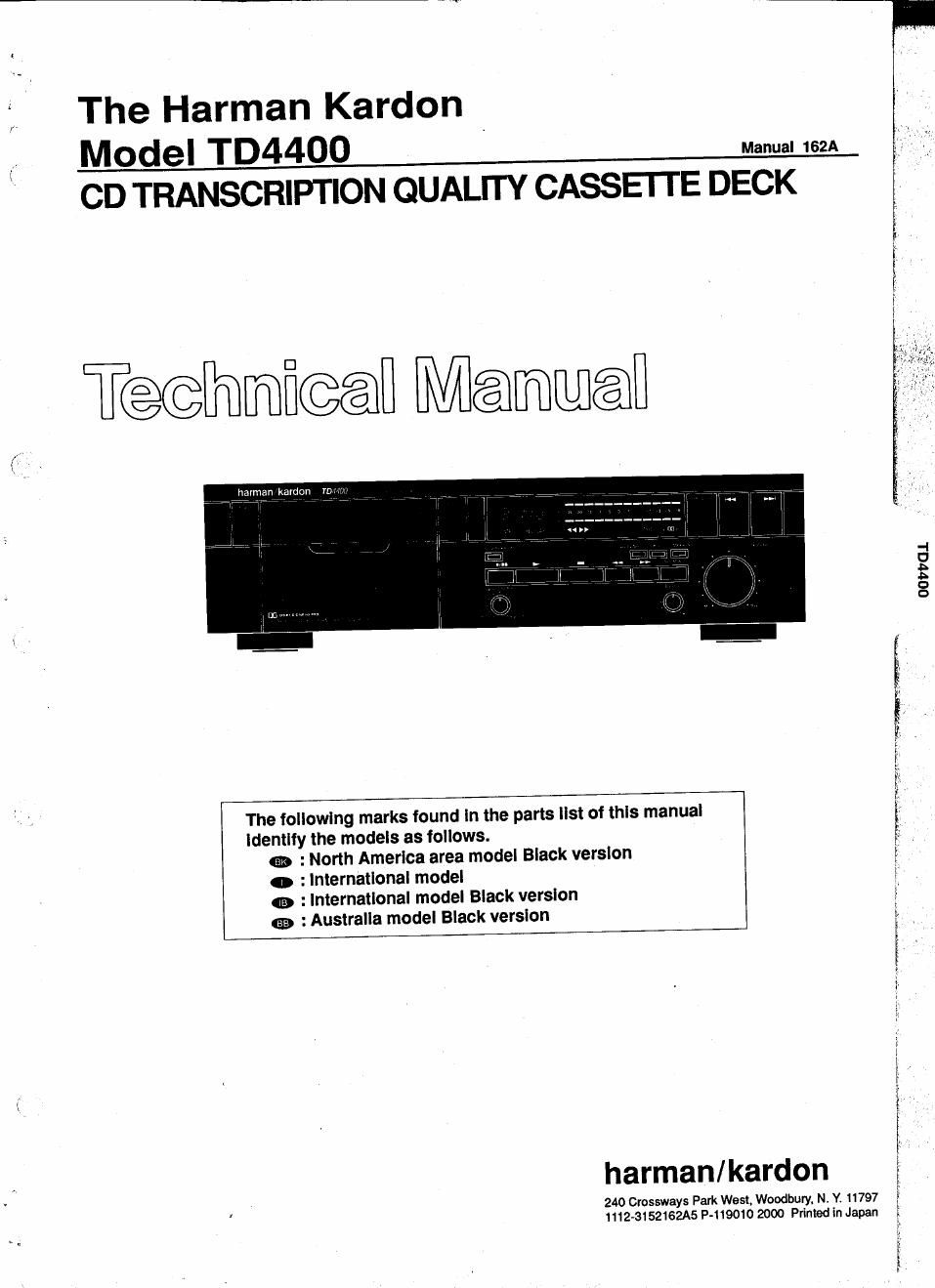

Page 1

The Harman Kardon
MOdeI TD4400 1 Manual 162A
CD TRANSCRIPTION QUALITY CASSETTE DECK

Tcedlmfiwl Mendel

halman kardon mum

-I
U
.5
A
O
D

The following marks found In the parts list of this manual
Identify the models as follows.

: North America area model Black verslon

: International model i
: Internatlonal model Black verslon 9
: Australla model Black verslon

@609

harman/kardon

240 Crossways Park West, Woodbury, N. Y. 11797
1112441521696: P419010 2000 Primed In Japan

Page 2

V T011400

TD4400

SPECIFICATIONS
Nominal leit
Track Configuration 4-track 2 Channel Stereo
Cassette Deck
- MECHANICAL SECTION
Record/Playback Tape Speed
Drift 4.75cmlsec. 0.2% i 2.0%
Wow and Flutter 0.045% (NAB) S 0.1%
0.07% (CCIR)
Take Up Torque 50gr.orn 35 - 709mm
Back Tension 49mm 2 - 69mm
F.FWD Torque 1009mm 70 ~ 150gr.cm
REW Torque tougwm 70 ~ 1509mm
F.FWD/REW Time 905cc. 5 toasec.
(0-50 Tape)
- AMPLIFIER SECTION
Bias Frequency 105kHz 1 5kHz
Playback Output 640mV 1 1.5da
Signal-In~Noise Ratio
at Line Input
(Input tkHz, tOOmV)
IHF»A WTD at Dolby Level
Dolby NR off
LN 5ldB
CrOz 54dB
Metal 54dB
Dolby B NR
LN 61dB
Cr02 W3 2 code
Metal 6MB 2 60dB
Dolby 0 NR
LN 66dB
CrOz 70d8 2 66dB
Metal 70dB 2 66dB

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE
Before reIUming the unit to the user, periorrn the following safety checks:
1. Inspect all lead dress to make certain

that leads are not pinched or that

hardware is not lodged between the

chassis and other metal parts in the TO EACH EXPOSED

. METAL SURFACE OF
unit. UNIT UNDER TEST

2. Replace all protective devices such as
nonmetallic control knobs, insulating
iishpapers, cabinet backs, or shields,
isolation resistor~capacitor networks.
mechanical insulators, etc.

3. Be sure that no shock hazard exists; check for leakage current using
Simpson Model 229 Leakage Tester. standard equipment item
No.2164t, FICA Model WT540A or use alternate method as follows:

Plug the AC line cord directly into a 120-volt AC receptacle (do not use an

lsolaticn Transformer for this test). Using two clip leads, connect a 1500

ohm, 10-watt resistor paralleled by a 0.15pF capacitor, in series with all

exposed metal cabinet parts and a known earth ground, such as a water
pipe or conduit. Use a VTVM or VOM with 1000 ohms per volt. or higher
sensitivity to measure the AC voltage drop across the resistor. (See

Diagram.) Move the resistor connection to each exposed metal part having

a return path to the chassis (antenna. metal, cabinet, screw heads, knobs

and control shafts, escutcheon, etc.) and measure the AC voltage drop

across the resistor. (This test should be performed with the power switch in
both the On and Off positions.)

Channel Separation
Crosstalk
Record/Playback Distortion
(Input 1kHz)
LN
CrOz
Metal
MPX Filter Attenuation
at t5kHz
at 19kHz
Erase Ratio (Input 80Hz)
LN
Metal
Input Sensitivity
(Input 1kHz) at Line Input
Input Impedance
(Input 1kHz) at Line Input
- DIMENSIONS (w x H x D)
- WEIGHT
- POWER SUPPLY

U.S.A. and Canada models

International and Australia models

- POWER CONSUMPTION
U.S.A. and Canada models

International and Australia models

Nominal leIt
45:15 2 35dB
70dB 2 W3
0.9% S 2.0%
1.5% S 3.0%
1.3% S 2.0%
0.3dB SltdB
35dB 2 30dB
70dB 2 GDdB
StdB 2 56:13
45mV40(rrit)~100(m)mV
m19(rrin) - ((rmx) to:

17-3/8 x 5" x 12-5/8'
(442 x 126 x 320 mm)

1|.9lbs (5.4kg)

AC 1 20V, GOHZ
A0220V/240V, 50/6on

1 SW
18W

These specifications are weMce target specs.
Specifications and components are subject to change without notice.
Overall performance will be maintained or improved.

U.S.A.)

SIMPSON MODEL 229 ETC. FOR

LEAKAGE TEST

HIGH C: : GROUND
VOLTAGE LEAD

OR +LEAD

T0 AC GROUND SUCH
AS WATER PIPE,BX CABLE,
CONDUIT, ETC.

é

VTVM
.0 AC sumo.

1.5K!)
10W

TEST PROBE

TO EXPOSED
METAL PARTS

M

H'-

0.15;.iF

CONNECT T0 KNOWN
EARTH GROUND

A reading of 035 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before returning the unit to the

owner.
