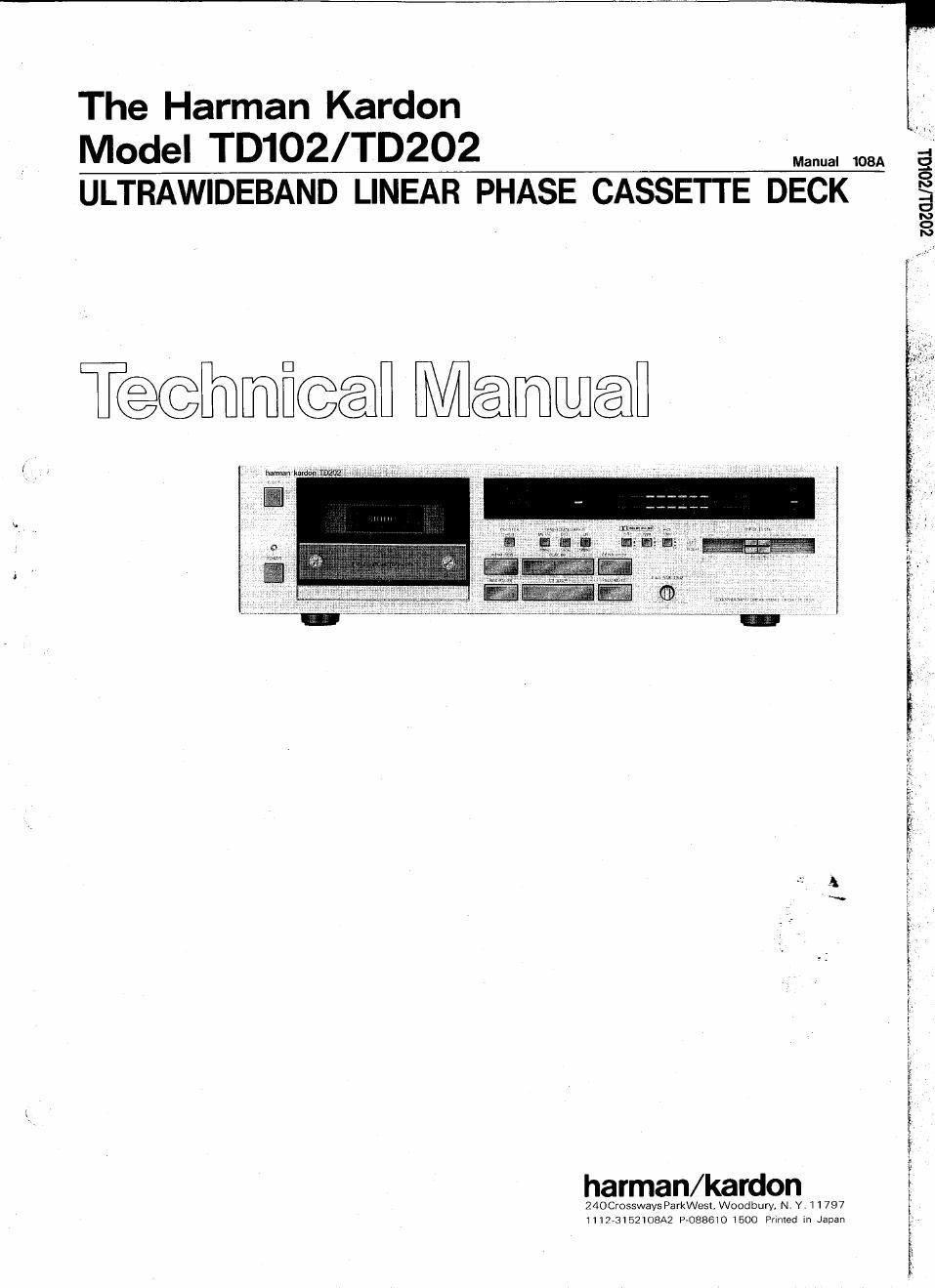

Harman kardon td 102 202 service manual

Page 2

~ /TD202

SPECIFICATIONS

Nominal

4-track 2 Channel Stereo
Cassette Deck

Limit
Track Configuration

Record/Playback Tape Speed
Deviation 4.75 cm/sec.
Drift 4.75 cm/sec.
Wow and Flutter

0.05% i 1.5%
0.2% 12.0%
0.05%(NABI50.1%
O.2%(CCIR)50.3%
509r.cm 35~70gr.cm
4gr.crn 2~6gr.cm
1009r.cm 70~1509r.cm

Take Up Torque
Back Tension
F. FWD Torque

N
o
N
r:
._
\
2
E

REW Torque 100gr,cm 7O~1509r.cm
F. FWD/REW Time 90 sec.5100 sec.

(060 Tape)
Motor Direct Drive motor

105kH2 i 5kHz
460mV :1.5dB

Bias Frequency

Playback Output

Signal-to-Noise Ratio
at Line Input (Input 1kHz,100mVI
IHF-A WTD at Dolby Level

Dolby NR Off
LN 51dB
CrOz 54dB
Metal 54dB
Dolby B NR
LN 61dB
CrOz 64dB aGOdB
Metal 64dB zGOdB
Dolby C NR (TD202 only)
LN 66dB
Cr02 70dB 266dB
Metal 70dB 266113

Nominal Limit
Channel Separation 45dB 235dB
Crosstalk 70dB 2 60dB
Record/Playback Distortion

(Input lkHzI
LN 1.0% 52.0%
Cr02 1.8% 53.0%
Metal 10% 52.0%
MPX Filter Attenuation
at 15kHz 0.3dB 51dB
at 19kHz 35dB 230dB
Erase Ratio (Input 80Hzl
LN 70dB ZGOdB
Metal 61dB 2 SGdB

Input Sensitivity 52mV 40(min)~100(max) mV
(Input 1kHz) at Line Input
Input Impedance

(Input 1kH2) at Line Input
DIMENSIONS (WxHxD)

23kfl 19(min) ~ 30(max) k9

17-1/2" x 4-7/8 x 10-1/2
(443 x 122 x 264 mml

WEIGHT 10lbs. (4.5kg)
POWER SUPPLY
U.S.A. model AC 120V, 60Hz

General model AC 220/24OV, 50/60H2

POWER CONSUMPTION

U.S.A. model
General model

20W
22W

Specifications and components subject to change without notice. Overall
performance will be maintained or improved.

This specification is the target of servicing. But. there is a case that the specifi-
cation is not applicable to the measurement condition and instrument.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.)

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between
the chassis and other metal parts
in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers, cabinet backs,
adjustment and compartment covers
or shields, isolation resistor-capacity
networks, mechanical insulators,
etc. which were removed for servic-
ing are properly reinstalled.

3. Be sure that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester.
standard equipment item No. 21641. RCA Model
WT540A or use alternate method as follows:

Plug the power cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 015/4F capacitor,
in series with all exposed metal cabinet parts and
a known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 Ohms per volt, or
higher, sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna. metal, cabinet.
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC. FOFI
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER PIPEBX CABLE,
CONDUIT, ETC.

HIGH
VOLTAGE
OR + LEAD

GROUND
LEAD

6

VTVM
.0 AC SCALEO_

1.5km
10W

WV

__|l_

0.15uF

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT T0 KNOWN
EARTH GROUND

resistor. (This test should be performed with the power switch in both the On and Off positins.)

A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before

returning the unit to the owner.
