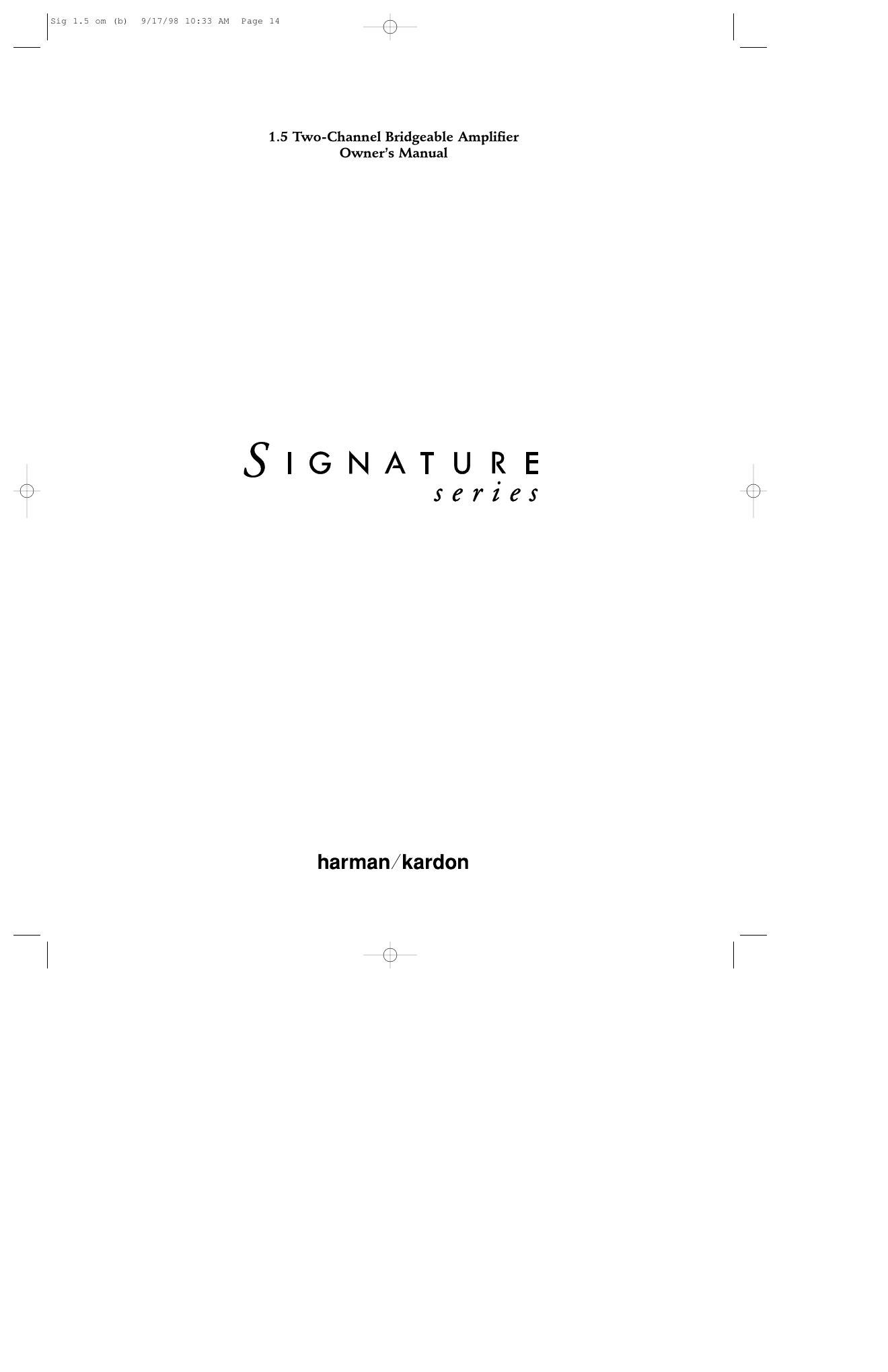

Signature 1.5 Two-Channel
Bridgeable Amplifier
OwnerÕs Manual
Table of Contents
Introduction . . . . . . . . . .. .. . . . ... ... . . . .... 1
Safety Information . . . .... . . . .... . . 2-3
Unpacking and Installation . .... . . . . .... . . ... 3
Front Panel Controls . . . . .... . . . . 4
Rear Panel Connections . .... . . . .... . . . . . .... . . . 5
Installation and Connections . . . . . . .... . 6-9
Operation . . .... . . .. .... . . .. . . . . . . 10
Service Information . . . . . . . .... . . . 11
Troubleshooting Chart . . . .... . . ... .... . . ... . . 11
Technical Specifications . . . . . . . . . 12
©1997 Harman Kardon, Incorporated
80 Crossways Park West
Woodbury, NY 11797
www.harmankardon.com
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INRODUIRE LA
LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQU'AU FOND.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated dangerous voltage
within the products enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION RISK OF ELECTRIC SHOCK
DO NOT OPEN
