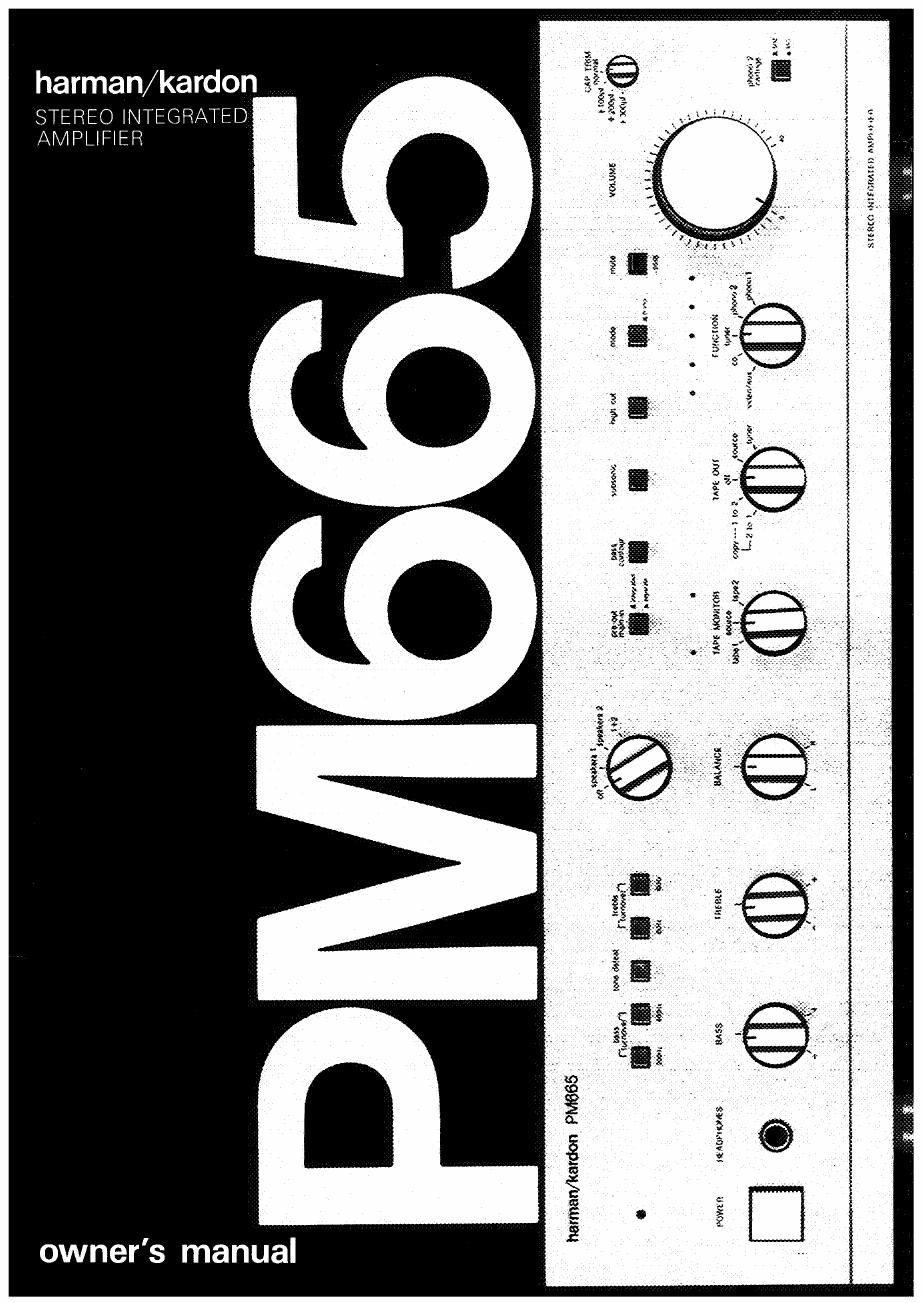

Harman kardon pm 665 owners manual

Page 2

Congratulations on your purchase of the
Harman Kardon PM665 Stereo Integrated
Amplifier.

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owner's manual and use your integrated amplifier
only in accordance with its instructions. Keep it in
a safe place for future reference.

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

A A

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER~
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an
equilateral mangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage within the
product's enclosure that may be of Sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is in»
tended to alert the user to the presence of important open
ating and maintenance (servicing) instructions in the
literature accompanying the appliance.

ee

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE

Power Output, RMS
(both channels driven into
8 Ohms, 20~20.000Hz)

l-(CC (high instantaneous
current capability)

Power Bandwidth (at half
rated output into 8 Ohms)

Frequency Response
(+0, #BdB)

Damping Factor

Signal-toaNolse Ratio,
IHF-A WTD (reference IW
output)
Phone (MM)
Phono (MC)
Tuner, CD.
Video/AUX, Tape
Main-in

Input Sensitivny/Impedance
Phono (MM)
Phone (MC)
Tuner, CD,

Video/AUX, Tape

Main-in

Phono Overload
MM
MC

Tone Control Characteristics
Bass Turnover Frequency

Treble Turnover Frequency:

Filters
Subsonic
High Cut

Bass Contour
Boost (at 5OHz)
Phase Shift
(300 7720.000Hz)

Dimenswns (W x H x D)

Weight
Power Supply

Power Consumption

: 100 watts per channel
@ less than 0.08% THD

: 60A

: 10Hz to iO0.000Hz

: 0.2Hz lo 150,000HZ

:>65

:77dB
:75dB
:78dB

: 92dB

. 2.2mV/47k Ohms and 125pF
: 120/zV/56 Ohms
: 135mV/22k Ohms

:O.8V/22l< Ohms

: 220mV
ernV

: 200l-(z/4OOH2
2kHz/6kHz

: lez, 6dB/Octave
BkHz, GdB/Omave

:-l-lOdB
:<5°

:1771/2><675/16x15rl l/16"
(443 x l34 x 398 mm)

1 29lbs.1202. (13.5kg)
: AC I20V, GOHZ
: 550W

All specifications and features sumac! to Change without notice.
