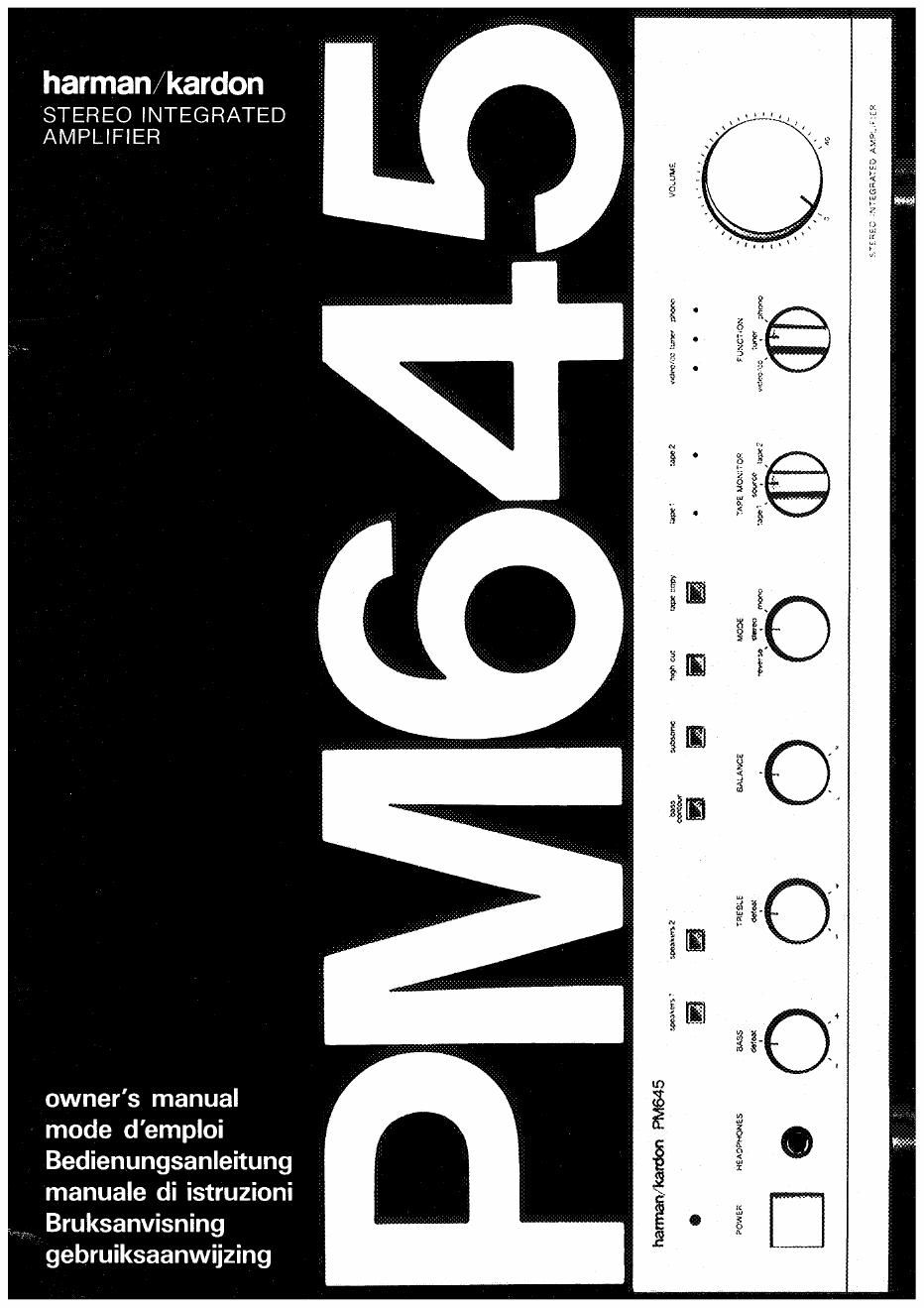

Harman kardon pm 645 owners manual

Page 2

SPECIFIC ONS

Congratulations on your purchase of the

Harman Kardon

Amplifier.

PM645 Stereo

Integrated

In order to appreciate the full performance of
this sophisticated unit, please be sure to read this
owner's manual and use your integrated amplifier
only in accordance with its instructions. Keep it in
a safe place for future reference.

Power Output, RMS
(both channels driven into
8 Ohms, 20»-20,000HZ)
(DlN, 4 Ohms, Ikl-IZI

HCC (high instantaneous
current capabilityl

Power BanOWIdth (at half
rated output into 8 Ohms)

Frequency Response
(+0, iSdBl

Damping Factor

Signal-to-NOise Ratio,
lHF-A WTD (reference 1W
output)
Phono
Video/CD, Tuner.
Tape

Input Sensitiyity/lmpedance
Phono

Video/CD, Tuner,
Tape

Phono Overload MM

Tone Control Characteristics
Bass Boost/Cut (at 5OHz)
Treble Boost/Cut (at iOkHz).

Filters
Subsonic
High Cut

Bass Contour
Boost (at EOHZI
Phase Shift
(300-20,OOOH2)

DimenSions (W X H x D)

Weight

Power Supply
General model
Canada model

Power Consumption
General model
Canada model

All Specifications and ieatures Subject to

: 40 watts per channel

@ less than 0 09% Tl-lD

: 70 watts per channel

35A

. lOHz to IO0,000HZ

: 0,5l-lz to 150,000Hz

1>65

:80dB
:81dB

: 2.2mV/47k Ohms and

l25pF

: l35mV/22k Ohms

. i30mV

+1 OdB/-I OdB
+1 OdB/ii OdB

: iSHZ, 6dB/Octave
: 6kHz, SOB/Octave

'+1.OdB
,<5°

I7-i/2>< 4~7/I6 >< i3r7/8

(443 x103 x 35I mm)

' l4|bst501 (66kg)

AC 220/24OV, 50/60Hz

. AC 120V, 60Hz

. 160W
: 220W (27OVA)

change Without notice

FOR CUSTOMERS IN THE UK

Your unit is supplied with the flex which will have either tWO or three
wires, so thefollowing items should be observed to guarantee safety,

THREE CORE FLEX
WARNING: THIS APPARATUS MUST BE EARTHED,
IMPORTANT The Wires in this mains lead are coloured in accordance
with the following code:

Green-and-yellow : Earth

Blue ' Neutral

Brown : Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals
in your plug, proceed as follows:

The wire which is coloured greenrandeyellow must be connected to
the terminal in the plug which is marked by the letter E or by the safer
ty earth symbol a- or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal
which is marked With the letter N or coloured black,

The wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.

TWO CORE FLEX

IMPORTANT. The wires in this mains lead are coloured in accordance
with the following code:

Blue Neutral

Brown . Live

As the colours of the wires in the mains lead of this apparatus may
not correspond With the coloured markings identifying the terminals
in your plug. proceed as follows:

The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal
which is marked With the letter L or coloured red.

FOR CUSTOMERS IN CANADA

The AC plug is a polarized plug, so the lolloWing item should be taken
into consideration

CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
(POLARlZEDl PLUG WITH AN EXTENSION coao, RECEPTACLE on
OTHER OUTLET UNLEss THE BLADES CAN BE FULLY lNSERTED To
PREVENT BLADE EXPOSURE

&

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER~
SERVICEABLE PARTS INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

A
&

CAUHON

RISK OF ELECTRIC SHOCK
DO NOT OPEN

The lightning flash with arrowhead symbol, Within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated dangerous vortage within the
product's enclosure that may be Of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is in
tended to alert the user to the presence of important oper-
ating and maintenance lservicingl instructions in the
literature accompanying the appliance

WARNING: TO REDUCE THE RISK OF FlRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

This manual applies to champagne gold and black versions
with this model PM645.
