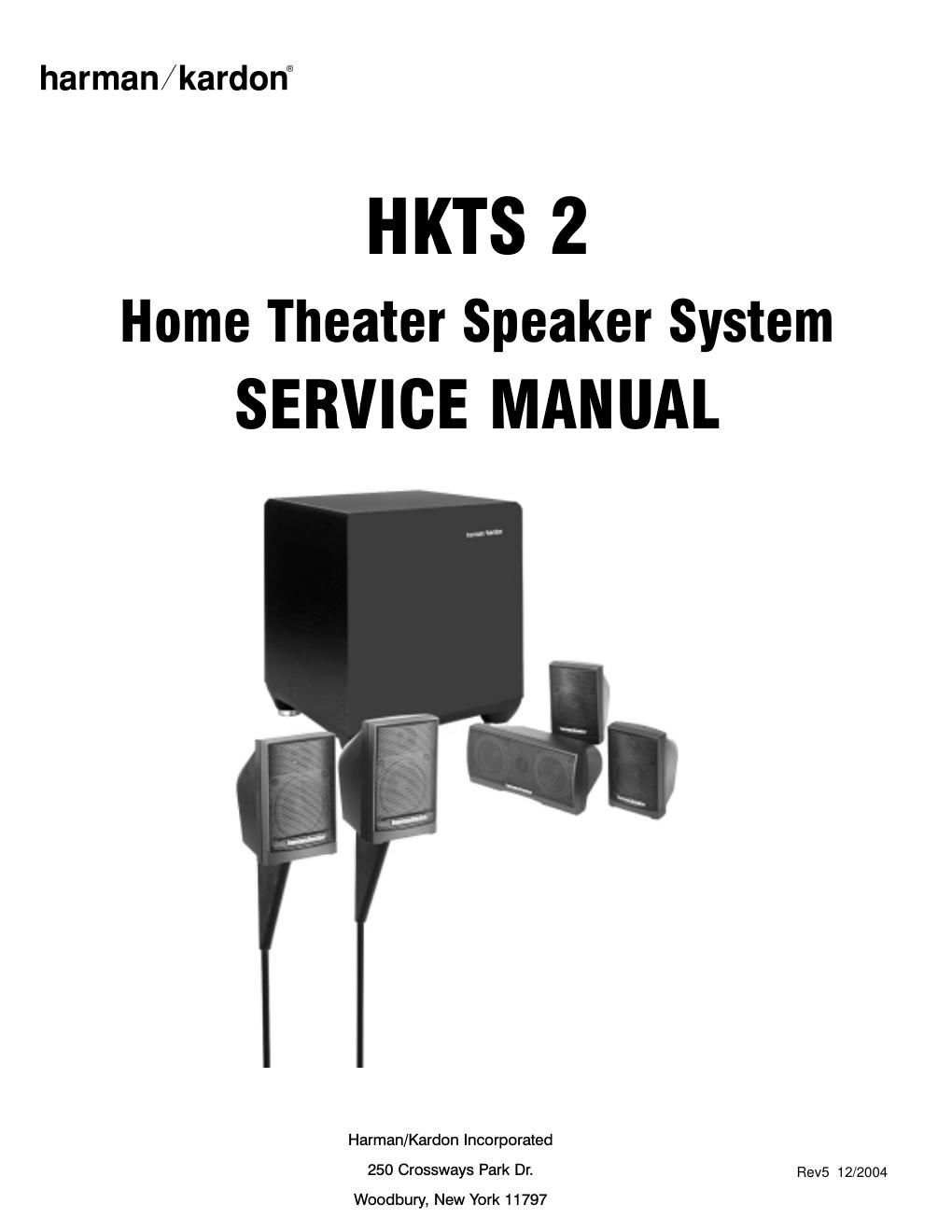

Page: 1 / 23
left right
harman kardon hkts 2 service manual

Extracted text from harman kardon hkts 2 service manual (Ocr-read)

Page 1

TABLE OF CONTENTS BASIC SYSTEM SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . .3 DETAILED HKTS 2 SPECIFICATIONS . . . -¦-¦-¦-¦-¦-¦-¦-¦. . . .4 CONNECTIONS . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . .5 OPERATION . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . .8 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .9 MECHANICAL/PACKAGING PARTS LIST . . . . . . . . . . . . . . . . . .10 EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 TEST SET UP and PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . .12 PACKAGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 INTEGRATED CIRCUIT DIAGRAMS . . ................................. . . . .17 PRINTED CIRCUIT BOARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 SCHEMATIC . . . . . . . . . -¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦. . . .22 HKTS 2 2

Page 2

HKTS 2 3 HKTS 2 SYSTEM Frequency Response 35Hz - 20kHz (-6dB) Satellites Recommended Power10 - 50 watts Impedance 8 ohms nominal Sensitivity 86dB @ 1 watt/1 meter Tweeter One 1/2" titanium-laminate dome, video-shielded Midrange One 3" driver, video-shielded Dimensions (H x W x D) 4-5/8" x 3-1/8" x 3-3/4" 117mm x 79mm x 93mm Weight 1.1lb/0.5kg Center Channel Recommended Power10 - 50 watts Impedance 8 ohms nominal Sensitivity 86dB @ 1 watt/1 meter Tweeter One 1/2" titanium-laminate dome, video-shielded Midrange Dual 3" drivers, video-shielded Dimensions (H x W x D) 3-1/2" x 7-5/8" x 3-3/4" 89mm x 194mm x 95mm Weight 1.89 lb/0.86kg SUB-TS 2 Subwoofer 100 watts RMS 10" woofer, bass-reflex enclosure Dimensions (H x W x D) 18 1/4" x 15 3/4" x 16 3/4" 464mm x 400mm x 425mm Weight 35.8 lb/16.2kg Refinements may be made on occasion to existing products without notice, but will always meet or exceed original specifications unless otherwise stated. S\fecifications
