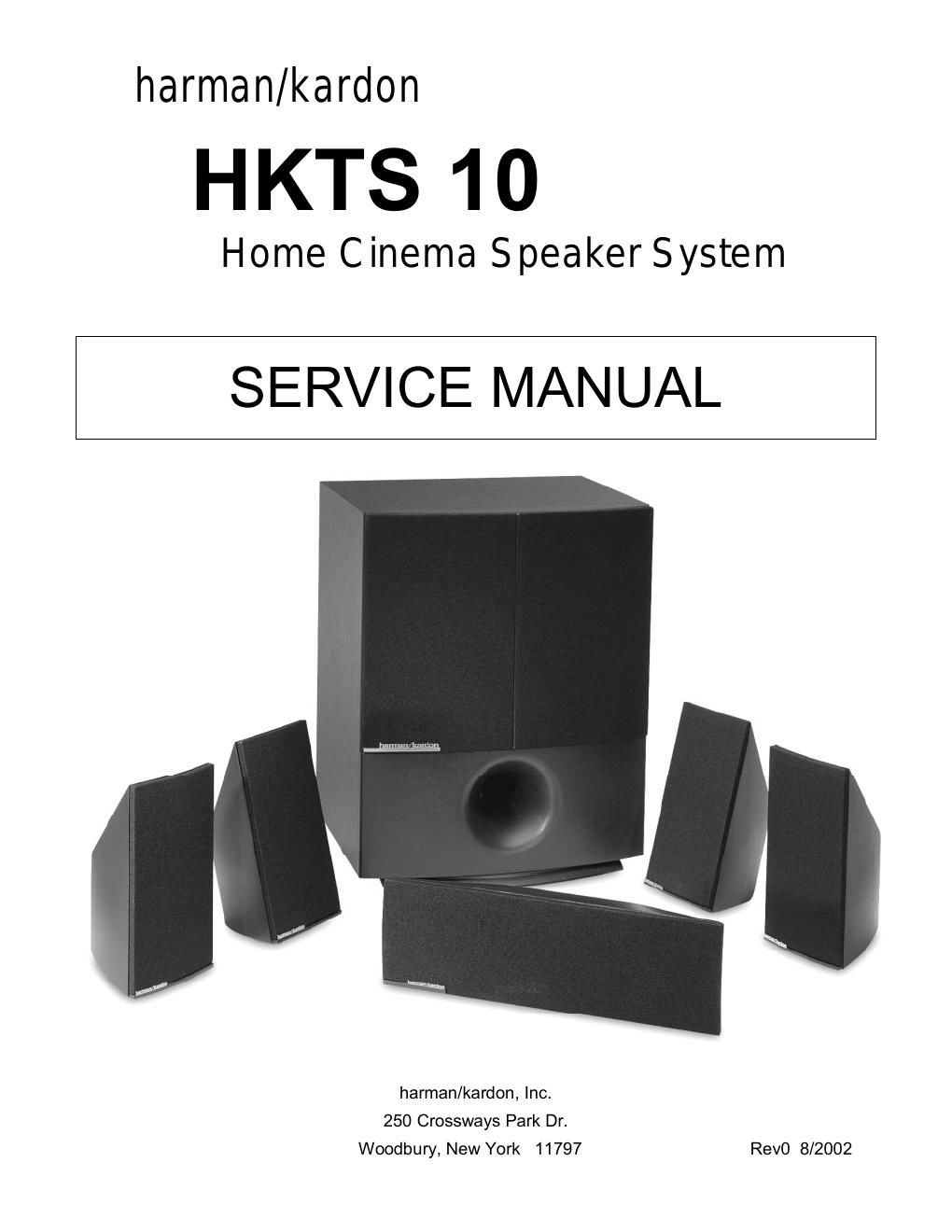

Harman kardon hkts 10 service manual

This is the 23 pages manual for harman kardon hkts 10 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 23
left right
harman kardon hkts 10 service manual

Extracted text from harman kardon hkts 10 service manual (Ocr-read)


Page 1

CONTENTS SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . . . . . .. .. . .. . . . . .. .. . . . . . . . 1 DETAILED SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . -¦-¦-¦-¦.. . . . . .. . . . . .. . . . . . . . . . . 2 CONTROLS & CONNECTIONS . . . . . . . . . . . . . .. . . . . . . . . . . . . . .. . . . . . . . . . .. . . . . . . . . . 3 OPERATION & ADJUSTMENTS. . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . .. . . . . . . . . . 8 BASIC TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . ... . . . . . . . . . . 9 SUB-TS10 TEST PROCEDURE. . . . . . . . . . . . . .. . . . . . . . . . . . . . . .. . . . . . . . . .. . . . . . . . . . 10 SUB-TS10 BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .. . .. .. . . . . . . . 11 MECHANICAL/PACKING PARTS LIST -¦-¦. . . . . .. . . . . . . . .. .. . . . .. .. . . . . . . . . .. . .. . . . . . . 12 SUB-TS10 EXPLODED VIEW. . . . . . . . . . . . . . . . . . . . .. . . . . . . . .. . . . .. . . . .. . .. .. . . . . . -¦ . 13 SUB-TS10 PCB DRAWINGS. .. . . . . . . . . . . . . . . -¦ . . . .. . . . . . . -¦ . . . . . . . . .. . .. .. . . . . . . . 14 SUB-TS10 IC -“ TRANSISTOR PINOUTS . -¦ . . . .. . . . . . . . -¦-¦..-¦. . . . . . . . .. . .. .. . . . . . . . 16 SUB-TS10 ELECTRICAL PARTS LIST -¦-¦-¦-¦. ... . . . . . . . . . .. . . .. . . . . . . . . . . .. . .. . . . . . . 17 SUB-TS10 SCHEMATIC DIAGRAMS . . . . . . . . . . . . . . . . . . . . .. . .. .. .. . . . .. . .. . . . . . . . . . . . .20 SPECIFICATIONS HKTS 10 System Frequency Response 35Hz -“ 20kHz (-“6dB) SAT-TS10 Satellites Recommended Power 10 -“ 110 watts Impedance 8 ohms nominal Sensitivity 86dB @ 1 watt/1 meter Tweeter One 1" dome, video- shielded Midrange One 4" driver, video- shielded Dimensions (H x W x D) 10-1/8" x 5-1/4" x 5-3/8" 257mm x 133mm x 137mm Weight 6.6 lb/3.0kg CEN-TS10 Center Recommended Power 10 -“ 110 watts Impedance 8 ohms nominal Sensitivity 86dB @ 1 watt/1 meter Tweeter One 1" dome, video-shielded Midrange Dual 4" drivers, video- shielded Dimensions (H x W x D) 5-1/16" x 16-1/2" x 5-3/16" 128mm x 418mm x 131mm Weight 10 lb/4.5kg SUB-TS10 Subwoofer Amplifier 150 watts RMS Bass Driver 12" woofer, bass-reflex enclosure Dimensions (H x W x D) 20-5/16" x 16-3/8" x 15-1/16" 515mm x 416mm x 382mm Weight 40 lb/18.0kg Occasional refinements may be made to existing products without notice but will always meet or exceed original specifications unless otherwise stated.

Page 2

SUB-TS10 150W Powered Amplifier LINE VOLTAGE Yes/No Hi/Lo Line UnitNotes US 120vac/60Hz Yes 108-132 Vrms Normal Operatio n Parameter Specification Unit QA Test Limits Conditions Notes Amp Section Type (Class AB, D, other) D D n/a Load Impedance (speaker) 4 Ohms n/a Nominal Rated Output Power 150 Watts 150 1 input driven THD@ Rated Power 0.08 % 1 22k filte r THD @ 1 Watt 0.15 %0.5 22k filte r DC Offset 5 mV-DC 30 @ Speaker Output s Damping factor >100 DF30Measured at speaker terminals, Output powe r 140 Watts THD 0.1 % Input Sensitivity Input Frequency 50 Hz N A Nominal Freq. 1 input driven Line Input (L&R) 220 mVrms ±2dB To Rated Powe r 1 input driven LFE Input 220 mVrms ±2dB To Rated Powe r LFE input driven only Speaker/Hi Level Input 2.2 Vrms ±2dB To Rated Powe r (-20 dB below Line In)...1 input drive n Signal to Noise SNR-A-Weighted 100 dBA 85 rel. to rated powe r A-Weighting filter SNR-unweighted 90 dBr 80 rel. to rated powe r 22k filte r SNR @ 1W-unweighted 65 dBr60 rel. to 1W Outpu t 22k filte r Residual Noise Floor 1.2 mVrms3.0Volume @max, using RMS reading DMM/VOM (or A/P) Residual Noise Floor 0.8 mVrms(max) 2.0 Volume @max, w/ A/P Swept Bandpass Measurement (Line freq.+ harmonics) Input Impedance Line input L&R , LFE 10 K ohms n/a Nominal Speaker/Hi Level Input 4.7 K ohms n/a Nominal Filters Left & Right Low Pass fixed 130 Hz -- ±2dB @ -3dB ref. 100H z LFE Low Pass fixed 220 Hz --±2dB @ -3dB ref. 100H z Subsonic filter (HPF) 22 Hz --±2dB @ -3dB ref. 100H z Limiter YES --n/a Features LFE Input YES functional BW Limited to 220 Hz Volume pot Taper (lin/log) log -- functional ATO YES functional Signal Sensing (ATO) ATO test Frequency 50 Hz n/a ATO Line Level 4.0 mV 2.0 - 8.0 2mV@50Hz into Line Input w/ 1 ch. driven ATO Speaker level input 40 mV 20 - 80 50mV@50Hz into Line Input w/ 1 ch. driven ATO Turn-on time 5 ms functional Amp connected and AC on, then input signal applied Auto Mute/ Turn-OFF Time 15 minutes 10 - 25 T before muting, after signal is remove d Power on Delay time 3 sec.functional AC Power Applie d Transients/Pops ATO Transient 5 mV-peak 10 @ Speaker Output s Turn-on Transient 50 mV-peak100 @ Speaker Output s AC Line cycled from OFF to O N Turn-off Transient 50 mV-peak100 @ Speaker Output s AC Line cycled from ON to OF F Efficiency Stand-by Input Power 10 Watts 12 @ nom. line voltageMaximum allowable input power under nominal Input voltage and frequency, HOT or COLD operation. Power Cons.@rated power 230 Watts 250 @ nom. line voltag e 150 Watts @ 4 Ohms nominal line voltage Protection Short Circuit Protection YES -- functional Direct short at outpu t Thermal Protection 65 deg. C --functional @1/8 max unclipped Power Temperature rise should not exceed 35K rise DC Offset Protection YES -- functional DC present at Speaker Out lead s Relay or crowbar (for driver/fire protection ) Line Fuse Rating US Version 3.15 Amps Type-T or Slo Bl o External fuse with UL/SEMKO rated holde r HKTS 10 harman/kardon
