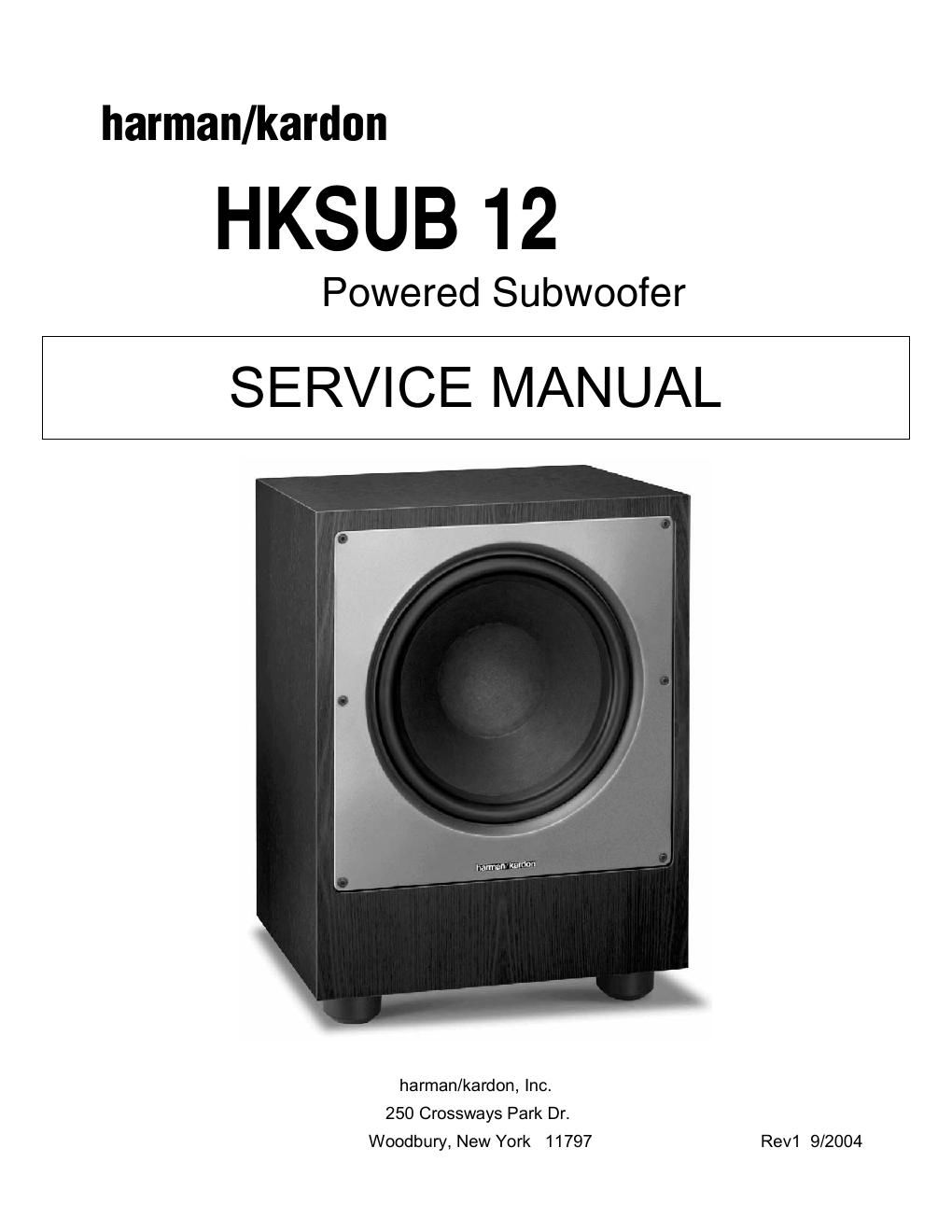

Harman kardon hksub 12 service manual
This is the 26 pages manual for harman kardon hksub 12 service manual. Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com .
Download PDF
Extracted text from harman kardon hksub 12 service manual (Ocr-read)
Page 1
CONTENTS
BASIC SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . ... . ... . . .. .. . .. . .. .. .. . . . . . 1
DETAILED SPECIFICATIONS . . . . . -¦-¦-¦-¦-¦-¦... -¦-¦-¦-¦-¦. .. -¦-¦-¦... . . .. . . . . .. . -¦ . .2
CONTROLS & CONNECTIONS . . . . . . . . . . . . . .. . . . . . . . . -¦ . . . . .. . . . . . . . . . .. . . .. . . . . 3
CONNECTION GUIDE-¦-¦-¦... . . . . . . . . . . . . .. . . . . . . . . -¦... . . . . . .. . . . . . . . . .. . . . . . . . . 5
CONFIGURING RECEIVER/PROCESSOR -¦-¦-¦-¦-¦-¦-¦..-¦-¦-¦-¦-¦..-¦-¦. . . . .. . .. . . . . . . 8
OPERATION-¦-¦. . . . . .. . . . . . . . .. .. . . . .. .. . . . . -¦-¦-¦-¦-¦-¦-¦-¦.-¦-¦-¦.. . . . .. . .. . . . . . . 9
BASIC TROUBLESHOOTING GUID E-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦-¦.. . . . .10
HKSUB 12 EXPLODED VIEW. . . . -¦-¦-¦-¦-¦-¦... -¦-¦-¦-¦-¦. .. -¦-¦-¦... . . .. . .. .. . . .. . -¦ . 11
HKSUB 12 AMPLIFIER EXPLODED VIEW. . . . -¦-¦-¦-¦-¦-¦... . .. -¦-¦-¦... . . .. . .. .. . . .. . -¦ . 12
HKSUB 12 BLOCK DIAGRAM . . . . . . . . . . . . . .. . . . . . . -¦-¦-¦-¦-¦-¦ . . . . . . .. . .. .. . . . . . . 13
HKSUB 12 TEST PROCEDURE. .. . . . . . . . . . . . . . .. . . . . -¦-¦-¦ -¦-¦-¦-¦.... . . . .. . .. .. . . . . . 14
HKSUB 12 PCB DRAWINGS. .. . . . . . . . . . . . . . .. . . . . -¦-¦-¦ . -¦-¦-¦-¦. . . . . . . .. . .. .. . . . . . 15
HKSUB 12 ELECTRICAL PARTS LIST -¦-¦-¦-¦. .... . .. . . . . -¦-¦-¦-¦.-¦-¦.. . . . . . .. . .. .. . . . . 17
HKSUB 12 MECHANICAL/PACKING PARTS LIST -¦-¦-¦-¦. .... . .. . . . . -¦... . . . . . .. . .. .. . . . . 20
HKSUB 12 IC -“ TRANSISTOR PINOUTS . -¦ . . .. . . . . . . -¦-¦-¦-¦-¦-¦-¦.-¦-¦-¦... . .. .. . . . . . 21
HKSUB 12 SCHEMATIC DIAGRAMS . . . . . . . . .. .. .. .. . . . .. . -¦-¦-¦-¦-¦-¦.-¦-¦... . . . . . . . . . .22
HKSUB 12 PACKAGE-¦-¦-¦... . . . . . . . . . . . . .. . . . . . . . . -¦... . . . . . .. . . . . . . . . .. . . -¦ . . . . .25
SPECIFICATIONS
Amplifier Power (RMS) 150 Watts
Driver 12" Polymer-coated-cone woofer
Inputs Stereo Line Level, dedicated Subwoofer (LFE)
and Speaker Level with gold-plated 5-way binding posts
Outputs Speaker Level with gold-plated 5-way binding posts
Low-Pass Frequency Continuously variable from 50Hz -“ 150Hz
Frequency Response 25Hz -“ low-pass crossover setting
Dimensions (H x W x D) 20-1/2" x 16" x 13-3/4" (520mm x 401mm x 350mm)
Weight 40 lb/18kg
Occasional refinements may be made to exis ting products without notice but will always meet or exceed original specifications
unless otherwise stated.
1
HKSUB12 harman/kardon
