Page 1

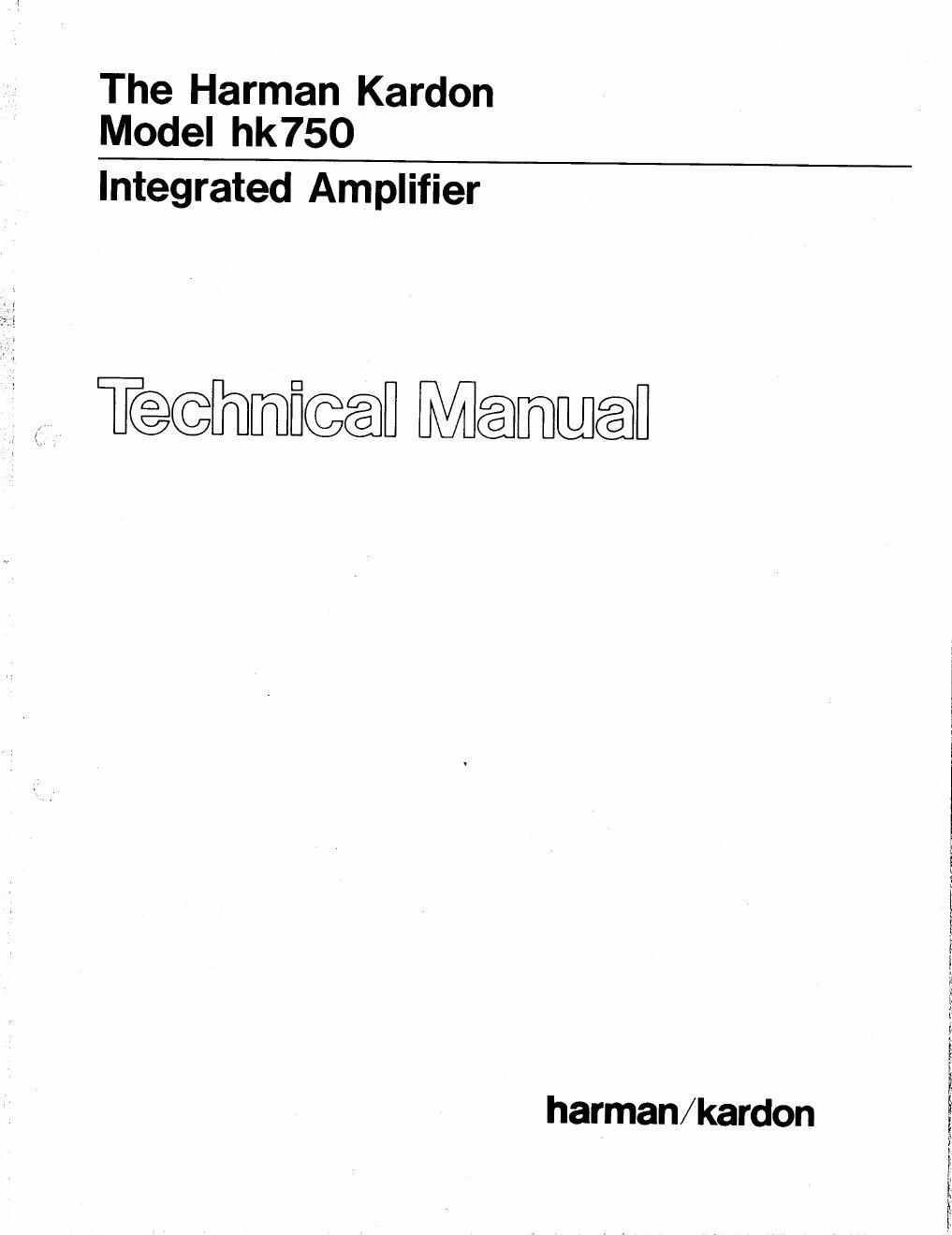

The Harman Kardon
Model hk750

Integrated Amplifier

Teemfieefi Memefl

harman/kardon

Page 2

PRECAUTIONS

1. Always disconnect the chassis from power line when soldering. Turning the power switch OFF is not enough. Power
line leakage passing through the heating element may destroy the transistors.

2. Never attempt to do any work on the transistor amplifiers without first disconnecting the AC line cord and waiting
until the power supply filter capacitors have discharged.

3. Replacement for output and driver transistors, if necessary, must be made from the same beta group as the original
type.

4. If one output transistor burns out (open or short) always remove all the output transistors in that channel and check
the bias adjustment, the control and other parts in the network with an ohmmeter before inserting a new transistor.
All transistors in one channel will be destroyed if the base biasing circuit is open on the emitter end.

5. When mounting a replacement power transistor, be sure that the bottom of the flange, the mica insulators and the
surface of the heat sink are free of foreign matter, for they may cause transistor failure.

6. Silicon grease must be applied between the transistor and the mica insulator, and between the mica insulator and the
heat sink for better heat conduction.

7. Fuses must be replaced with size and type indicated. Use of other types can expose components to destructive
current levels.

ALIGNMENT PROCEDURES

DC VOLTAGE BALANCE ADJUSTMENT

Equipment Required: DC VTVM QM

Notes: 1. Set function selector switch to AUX position.
2. Set volume control to minimum position.
3. Press in speaker 1 push button to ON (button in) position.

Step Connect Output Meter To Adjust Adjust For
DC VTVM to Lch terminal

1 of speaker system 1 VR408 0V iiOmV

2 DC VTVM to Rch terminal VR407 0V t10mV

of speaker system 1
