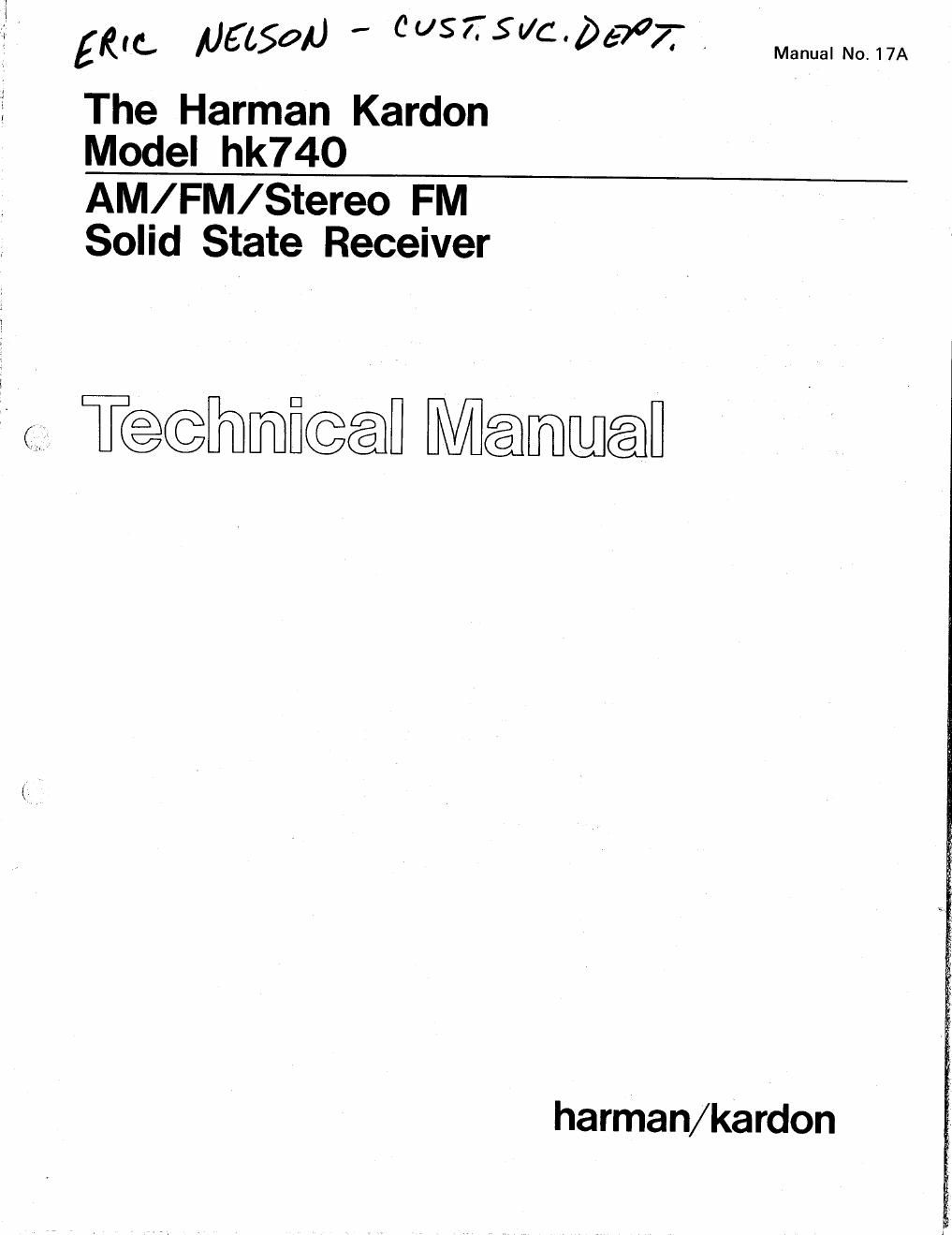

Harman kardon hk 740 service manual

This is the 32 pages manual for harman kardon hk 740 service manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 32
left right
harman kardon hk 740 service manual

Extracted text from harman kardon hk 740 service manual (Ocr-read)


Page 2

PRECAUTIONS

1. Always disconnect the chassis from power line when soldering Turning the power switch OFF is not enoud-I. '
Power line leakage passing through the heating element may destroy the transistors.

.2. Never attempt to do any work on the transistor amplifiers without first disconnecting the AC line cord and waiting
until the power supply filter capacitors have discharged.

3. Replacement for output and driver transistors, if necessary, must be made from the same beta group as the original
type.

. 4. If one output transistor burns out (open or short) always remove all the output transistors in that channel and
; check the bias adjustment, the control and other parts in the network with an ohmmeter before inserting a new
.f transistor. All transistors in one channel will be destroyed if the base biasing circuit is open on the emitter end.

5. When mounting a replacement power transistor, be sure that the bottom of the flange, the mica insulators and the
surface of the heat sink are free of foreign matter, for they may cause transistor failure.

6. Silicon grease must be applied between the transistor and the mica insulator, and between the mica insulator and
the heat sink for better heat conduction.

,5 7. Fuses must be replaced with size and type indicated. Use of other types can expose components to destructive
i 7 current levels.

i

g ALIGNMENT PROCEDURES

..
rm TP: _nnl
a A 'r
1 um um
5,2,:6 mm

Linstctoa

[gun

mm mm rmswcm

O

,Ll ,|_| Ll

Fig. 1 -A|ignment Points Location

LI

2

LJLJ
