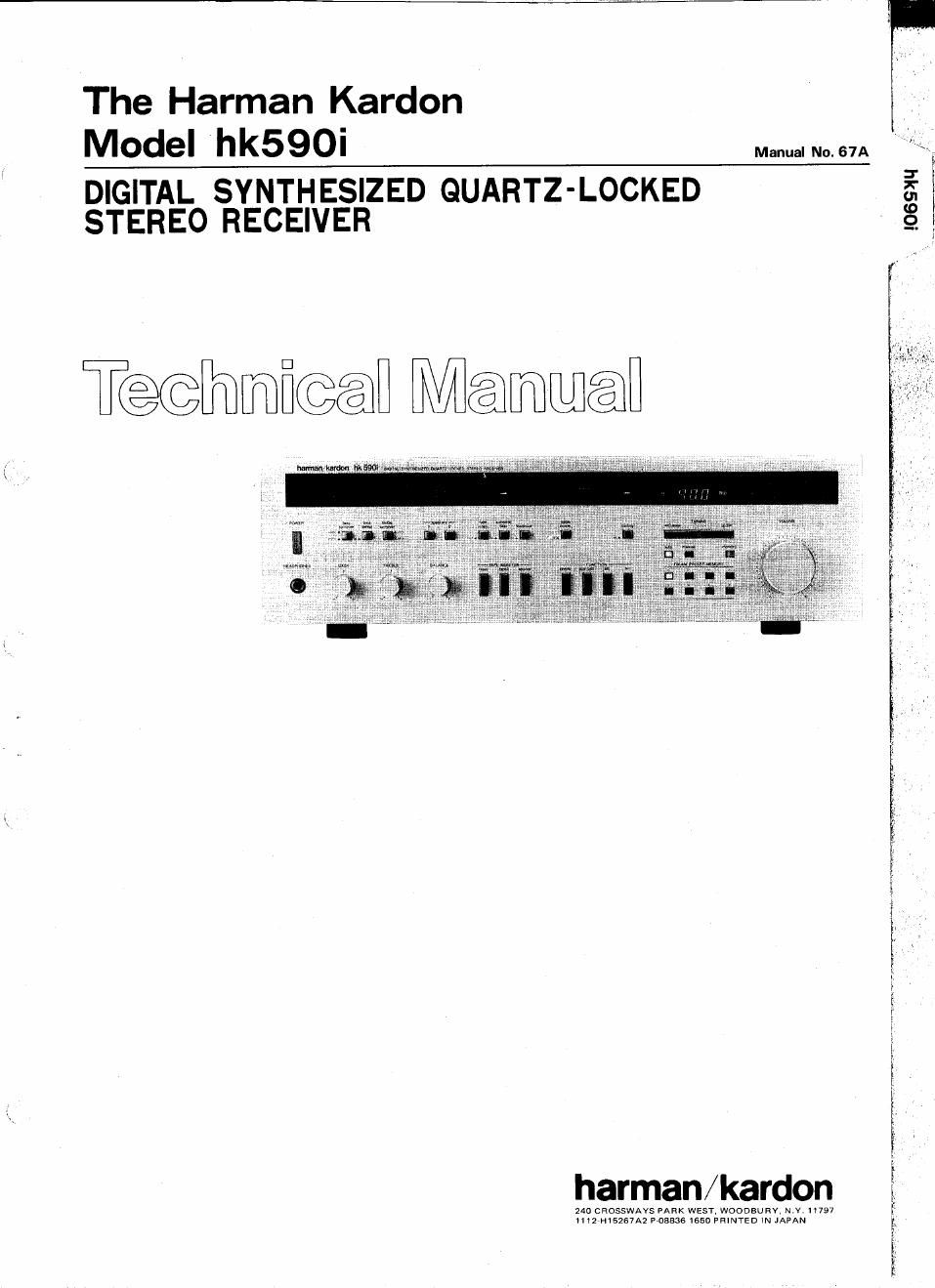

Page 1

The Harman Kardon
Model hk590l Manumm

DIGITAL SYNTHESIZED QUARTZ-LOCKED
STEREO RECEIVER

!O69)IL|

T@@Emmfi@@ Mammy

harman/kardon

240 CROSSWAVS PARK w251,woouauav,m v 11797
1112 H15267A2 P708836 165D PRINTED N JAPAN

Page 2

SPECIFICATIONS

0 FM SECTION
Tuning Range .
50dB Ouieting Sensitivity

Nominal Limit

87.5 ~ 103.0MHZ

5 Mono 14.9dBfS17dBf
0) Stereo 36.9d Bf S 38dBf
g Usable Sensitivity 10.5d Bi 5 12.5dBf
; Image Ratio 76.5dB 2 60dB
IF Rejection 76dB 2 70dB
Spurious Response Rejection 10MB 2 80dB
Capture Ratio 1.5dB S 2.5dB
Alternate Channel Selectivity 78138 2 50dB
AM Rejection 54.5dB Z 45cc
Signal to Noise Ratio
Mono 82dB 2 78dB
Stereo 74sec 2 72dB
Total Harmonic Distortion (65dBf 1kHz Input]
Mono 0.09%So.2%
Stereo 0.12% S 0.3%
Stereo Separation at 1kHz 52.9dB Z 45dB

0 AM SECTION
Tuning Range

520 N 1,710kHz

Usable Sensitivity 14uVm S zoiiVm
Selectivity 30dB Z 22cc
Signal to Noise Ratio 53cc 2 50:13
Image Rejection 34dB Z 28dB
lF Rejection 61dB Z 50dB

0 AUDIO SECTION
Usable Sensitivity

AUX/DAD 135mV i 25mV

Phono 2.2mV 1 0.2mV
Signal to Noise Ratio

AUX/DAD 80.6dB 2 78dB

Phono 79.5dB 2 77:13
Channel Separation at 10kHz

AUX/DAD 66dB 2 45oz;

Phono 57.5th 2 45cc

LEAKAGE TEST

Nominal Limit
IM Distortion Ratio 0.13% S 0.25%
RMS Output Power
89, 1kHz, THD 0.08% 50.9w 2 45w
452, 1kHz, TH D 0.08% 76.5w 2 60W
Damping Factor at 1kHz 44 2 40
Tone Control Characteristics
Bass Turnover Frequency 400Hz/200Hz
Treble Turnover Frequency 2kHz/6kHz
Bass at 50Hz
Boost 10dB t 2dB
Cut -10dB t 2dB
Treble at 10kHz
Boost lOdB t 2dB
Cut -10dB t 2dB
Loudness Control
at 'lOkHz 3dB i IdB
at 50Hz lodB t 3dB
Subsonic Control
at 15HZ 3dB i ldB
DC Output Voltage
L channel. 5.6mV i 60mV
R channel 6.2mV 1: 60mV

RIAA Equalization at Tape Out (20Hz/20kHz)
0.15dB i 0.5dB/0.15dB i 0.5dB
DIMENTIONS (W x H x D) 17-3/8" x 5-1/ " x 14-3/8"
(443 x 134 x 365 mm)

0 WEIGHT 17 lbs. 10 oz. (8.0 kg)
0 POWER SUPPLY AC120V, 60Hz
0 POWER CONSUMPTION 310W (330VA)

This specification is the target of servicing. But, there is a case
that the specification is not applicable to the measurement
condition and instrument.

Specifications and components subject to change without notice.
Overall pexfotmance will be maintained or improved.

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that hard-
ware is not lodged between the chassis
and other metal parts in the unit.

2. Be sure that any protective devices such
as nonmetallic control knobs, insulating
fishpapers, cabinet backs, adjustment
and compartment covers or shields,
isolation resistor-capacity networks, me-

chanical insulators, etc. which were
removed for servicing are properly
reinstalled.

3. Be sure that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT540A or use alternate method as follows:

Plug the AC line cord directly into a 120-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500 ohm,
10-watt resistor paralleled by a 0.15mi capacitor, in
series with all exposed metal cabinet parts and a
known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 ohms per volt, or
higher, sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the
resistor. (This test should be performed with the
power switch in both the On and Off positions.)

A reading of 0.35 volt RMS or more is excessive and
indicates a potential shock hazard which must be
corrected before returning the unit to the owner.

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER OR GAS PIPE,
BX CABLE, CONDUIT, ETC.

GROUND
LEAD

HIGH
VOLTAGE
OR + LEAD

é

VTVM
-OAC SCALE 0-

1.5KOHM
10W

VVV

__II_

0.15 MF

TEST PROBE

T0 EXPOSED
METAL PARTS

CONNECT TO KNOWN
EARTH GROUND
