harman kardon hk 3500 service manual

Extracted text from harman kardon hk 3500 service manual (Ocr-read)


Page 1

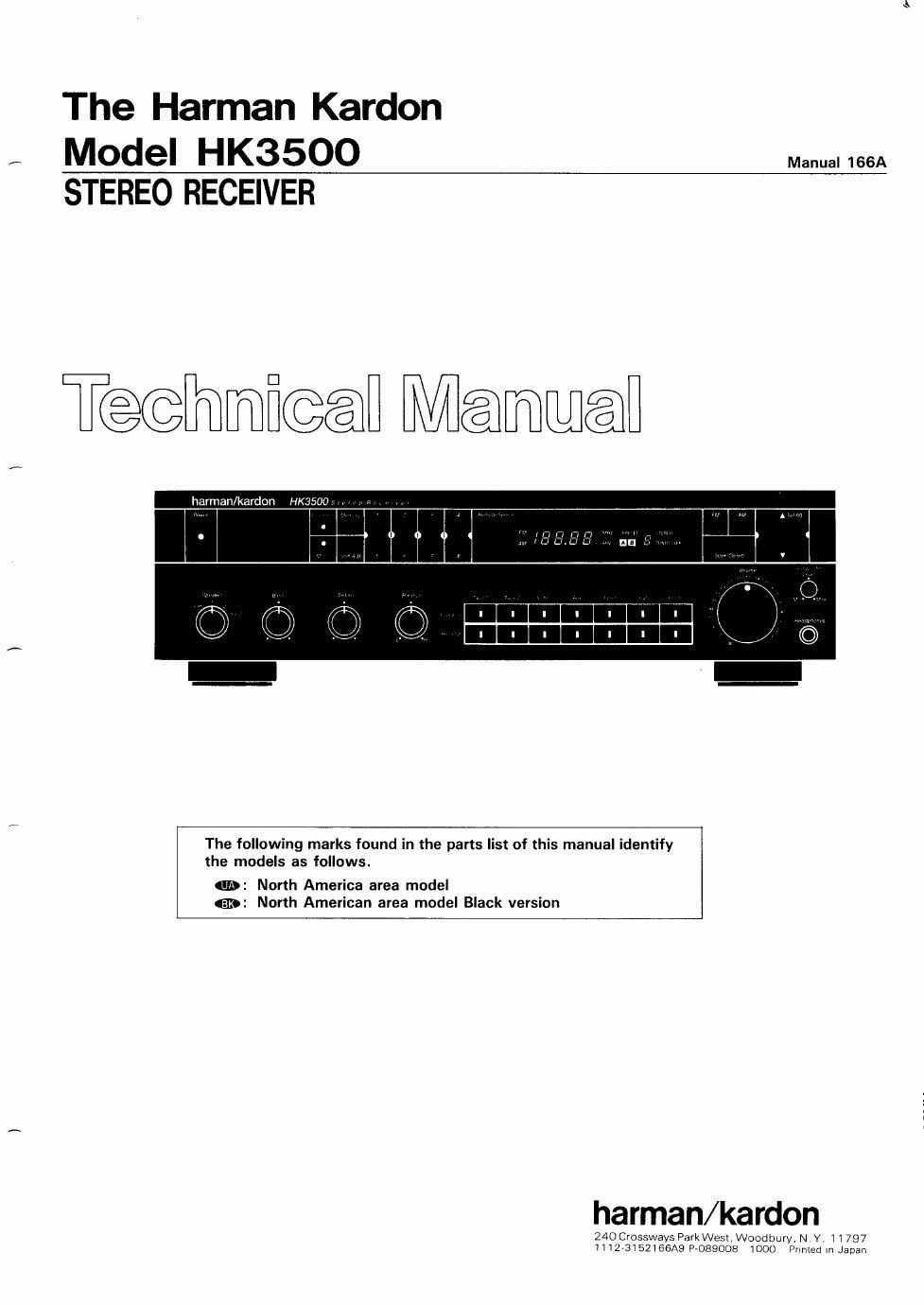

The Harman Kardon

, MOdel HK3500 Manual 166A
STEREO RECEIVER

T@@lmmfi@@l Mama

harman/kardon HKssao r ,

The following marks found in the parts list of this manual identify
the models as follows.

1m: North America area model
(3:0: North American area model Black version

harman/kardon

240 Crossways Park W651, Woodbury, N Y 7 l 7537
111273152166A9 91089008 1000 Primed in Japan

Page 2

HK3500

SPECIFICATIONS

0 FM SECTION
Tuning Range

Nominal Limit

87.5--108.0MH2

50dB Quietlng Sensitivity (at 98MH2)

Mono
Stereo

Usable Sensitivity (at 98MHz)

Image Ratio
IF Rejection

Capture Ratio (at 65dBf)
Alternate Channel Selectivity
AM Rejection (at 45dBf)

Signal to Noise Ratio (at 65dBf)

Mono
Stereo

15.2dBf§19.0dBf
38.0dBfg41.0dBf
11.2dBfg15.0dBf
45.0ng40.0dB
105.0dB;B0.0dB
1.4dB
77ng60dB
55dB

80.5dB;76.0dB
73.0dB;68.0dB

Total Harmonic Distortion (at 65dBf, IkHz)

Mono

Stereo
Stereo Separation
lat 65dBf, 1kHz)

0 AM SECTION

Tuning Range

Usable Sensitivity
External Antenna

Selectivity

Signal to Noise Ratio

Image Rejection

IF Rejection

oAUDIO SECTION

Usable Sensitivity
Video/CD/Tape
Phono (MM)

Signal to Noise Ratio
Video/CD/Tape
Phono (MM)

0.09% §O.3%
0.12% §O.4%
54.0dB;45.0dB

530kHz-1710kHz

15/1V

700ng 50dB
52.0dB;47.0dB
3&0ng 30.0113
630ng 50dB

135mV/22k9
2.2mV/47kfl

98dB
78dB

Nominal Limit
Channel Separation
Video/CD/Tape
Phono (MM)
IM Distortion Ratio
RMS Output Power

54.0ng45dB
71 .3dB g 45dB
0.047% §O.1%

8i), 1kHz, THD 0.1% 61.1W250W
Damping Factor at 1kHz 92.0260
Tone Control Characteristics
Bass at 50Hz .
Boost 10dB: 2dB
Cut - 10dB: 2dB
Treble at 10kHz
Boost IOdBI 2dB
Cut - IOdB: 2dB
Loudness Control
at 50Hz IOdB: 2dB
DC Output Voltage
L channel OmV: SOmV
R channel OmV i60mV
RIAA Equalization at
Tape Out 0dB:0.5dB
l20Hz/20kHzl
O DIMENSIONS 17»3/8" x 5x13-3/4"
(WxHxD) (443x126x349 mm)
OWEIGHT 16.5 lbs/7.5 kg

9 POWER SUPPLY
0 POWER CONSUMPTION

AC120V, 60H:
255W l295VAl

These specifications are service target specs.

Specifications and components subject to change without notice. Overall
performance will be maintained or improved.

LEAKAGE TEST (FOR SERVICE ENGINEERS IN THE U.S.A.)

Before returning the unit to the user, perform the following safety checks:

1. Inspect all lead dress to make certain
that leads are not pinched or that
hardware is not lodged between
the chassis and other metal parts
in the unit.

2. Be sure that any protective devices
such as nonmetallic control knobs,
insulating fishpapers, cabinet backs,
adjustment and compartment covers
or shields, isolation resistor-capacity
networks, mechanical insulators,
etc. which were removed for servic-
ing are properly reinstalled.

3. Be sure that no shock hazard exists; check for leakage
current using Simpson Model 229 Leakage Tester,
standard equipment item No. 21641, RCA Model
WT540A or use alternate method as follows:

Plug the power cord directly into a lZO-volt AC
receptacle (do not use an Isolation Transformer for
this test). Using two clip leads, connect a 1500
Ohm, 10-watt resistor paralleled by a 0.15 F capacitor,
in series with all exposed metal cabinet parts and
a known earth ground, such as a water pipe or conduit.
Use a VTVM or VOM with 1000 Ohms per volt, or
higher sensitivity to measure the AC voltage drop
across the resistor. (See Diagram.) Move the resistor
connection to each exposed metal part having a
return path to the chassis (antenna, metal, cabinet,
screw heads, knobs and control shafts, escutcheon,
etc.) and measure the AC voltage drop across the

TO EACH EXPOSED
METAL SURFACE OF
UNIT UNDER TEST

SIMPSON MODEL 229 ETC. FOR
LEAKAGE TEST

TO AC GROUND SUCH
AS WATER PIPEBX CABLE,
CONDUIT, ETC.

HIGH

GROUND

VOLTAGE LEAD
OR+LEAD
VTVM
43ACSCALEcy

1.5kfl
10W

NNN

_l|__

0.15AF

TEST PROBE

CONNECT TO KNOWN
EARTH GROUND

TO EXPOSED
METAL PARTS

resistor. (This test should be performed with the power switch in both the On and Off positions.)
A reading of 0.35 volt RMS or more is excessive and indicates a potential shock hazard which must be corrected before

returning the unit to the owner.
