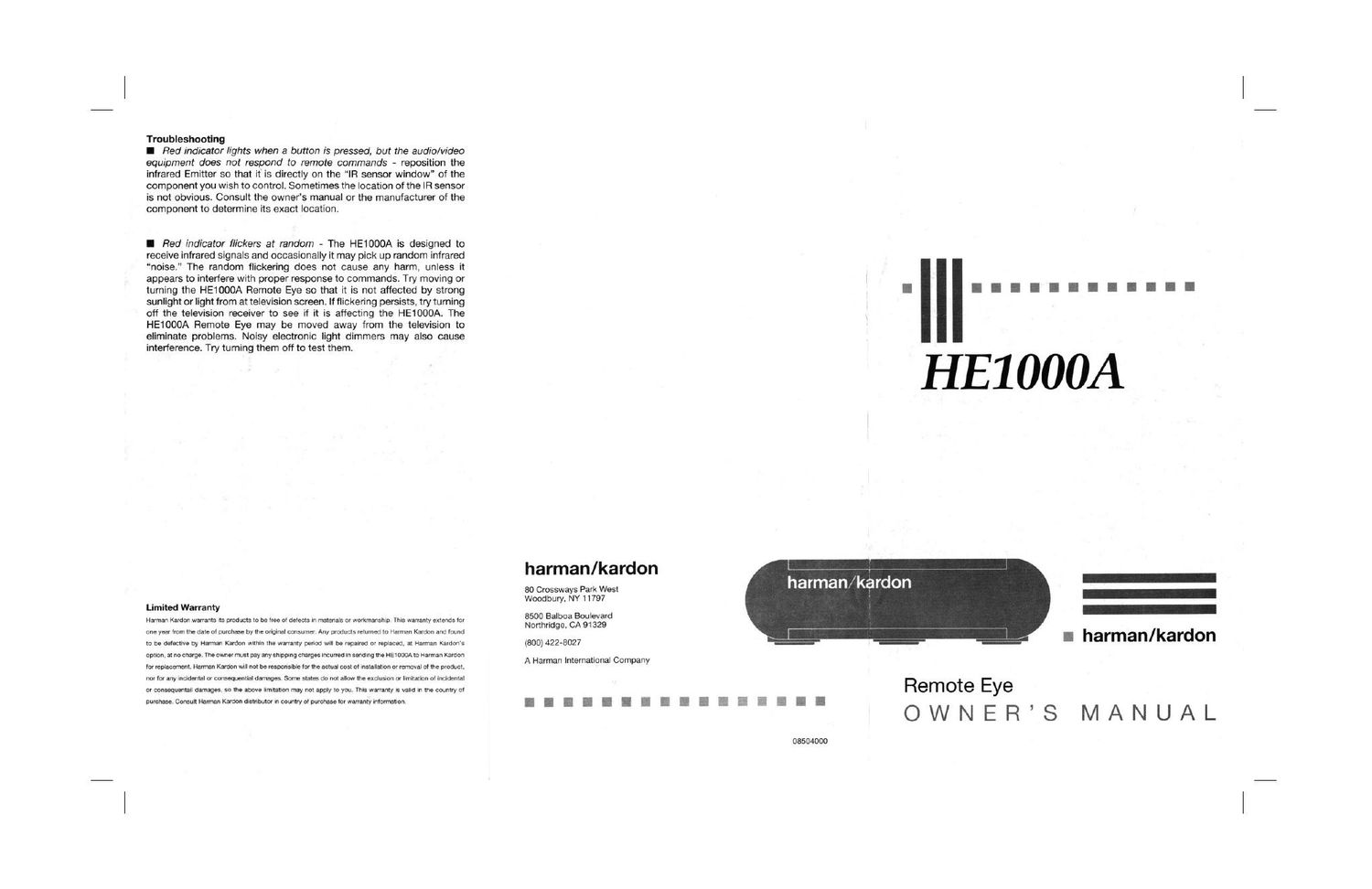

Page 1

Troubleshooting

I Red indicator lights when a button is pressed, but the audio/video
equipment does not respond to remote commands - reposition the
infrared Emitter so that it is directly on the IF! sensor window" of the
component you wish to control. Sometimes the location of the IR sensor
is not obvious. Consult the owners manual or the manufacturer of the
component to determine its exact location.

I Fied indicator flickers at random - The HE1000A is designed to
receive infrared signals and occasionally it may pick up random infrared
noise." The random flickering does not cause any harm, unless it
appears to interfere with proper response to commands. Try moving or
turning the HE1000A Flemote Eye so that it is not affected by strong
sunlight or light from at television screen. If flickering persists, try turning
off the television receiver to see if it is affecting the HE1000A. The
HE1000A Remote Eye may be moved away from the television to
eliminate problems. Noisy electronic light dimmers may also cause
interference. Try turning them off to test them.

Limited Warranty

Harman Kaldon warrants its products to be free of caveats ln materials or wmmahshlp This warranty extends ior
one year from in. date oi purchase by the original consumer Any producis returned to Harman Kardori and round
la be defective by Harman Kudon within the warranty period wull ha repaired or replaced. al Harman Kardons
option. at no Charga.1'lle nwno! must any any shlppmfi chargns Inclined In sanding m. HEVDwA lo Halman Kaldorl
to! meme! Harman Kadon will not be responsible lot the actual cos! A71 Installation or removal 0' the product.
nor [or any lncidonul o! conmumlhl damages Some SIIIBI do not allow the exclusion or limttelion of incidental
or cannqumuli dnmages. so the [have limitation may not ugpry to you, This wmunry l! valid in ihe counl'ly oi
purchase. Omsuix Harman Kaidon dlmbulm in country of purchase lor warranty mlormaucn

harman/kardon

80 Crossways Park West
Woodbury, NY 11797

8500 Balboa Boulevard
Northridge, CA 91329

(800) 422-8027

A Harman lntemational Company

Lw-fiA.
harman,« kardon

IIIIIIIIIIEEESII

08504000

HE1000A

I harman/kardon

RemoteEye
OWNERS MANUAL

Page 2

HARMAN KARDON HE1000A REMOTE EYE

Thank you for choosing a Harman Kardon Remote Eye.
And congratulations. You new unit is an exceptionally well-engineered
product that will give you years of superb performance.

GENERAL INSTRUCTIONS

Use the Correct AC Voltage.
Connecting the unit to an supplying a higher voltage may create a fire
hazard.

Handle the Power Cord Gently

I To disconnect the power supply from the AC outlet, pull on the
power supply itself, not on the cord.

I Disconnect the power supply from the AC outlet whenever the unit
is to be left unused for an extended period of time.

I Do not place furniture or other heavy objects on the cord, and avoid
dropping heavy objects on it. Also do not make a knot irrthe cord.

Place the unit on a firm and level surface or fasten it securely in place.

Avoid lnstalllng It:
I In moist or humid places:
I Close to heating equipment or in places exposed to direct sunlight.

Moving the Unit.
Before moving the unit. be sure to unplug the power supply from the AC
outlet and disconnect all wires.

Do Not Open Case.

Do not attempt to service this unit.

Tampering with internal components can cause fire or shock, and may
void your warranty.

If water or small objects enter the unit. unplug the power cord
immediately. Contact Harman Kardon. The unit is not field serviceable.
Using the unit under such conditions may cause a fire or shock hazard.

Cleaning.

Remove dust by wiping the unit with a soft. dry cloth. If necessary, use
a soft cloth lightly dampened with mild soapy water; then wipe with a
dry cloth. Never use benzene, thinner. alcohol or other volataile agents,
and avoid spraying insecticides near the unit.

INSTALLATION

Packaging

The HE1000A consists of five parts. the Remote Eye, a Power Supply.
a Connecting Block, an Infrared Emitter and a One-Foot Cable
assembly. Save all packing material and the bill of sale. The packing is
essential for shipping should you move. They are both required should
the unit ever need warranty repair.

Placement
The Remote Eye may be placed on any flat. level surface or it may be

adhered to other surfaces with double-stick foam tape or with a bracket
fashioned for this purpose. It may be placed on top of television
receivers or monitors in most cases. See "How to Avoid Problems.

Connecting the Remote Eye

1. Connect the cable coming from the back of the Remote Eye to the
IR jack on the Connecting Block. Connect the One-Foot Cable from
one of the OUT jacks on the Connecting Block to the REMOTE lN
jack on the rear of any Harman Kardon product (except the Citation
22. 24 and 25) having such a iack. See figure 1.


HK-Receiver

HE1 000A
Remote Eye

Power
Supply

Patch Cord

k I g :E B: - One-Foot
Cable

Connecting Block

Figure 1

2. Harman Kardon products can be connected together so that one
Remote Eye will operate all of them. To do this. connect a patch cord
fron the REMOTE OUT jack on the unit connected to the Remote Eye
to the REMOTE IN iack on the next unit. Continue this process to
include additional components (if they are compatible).

3. If the additional units are not directly compatible with the REMOTE
OUT jack, or do not have REMOTE IN jacks, plug the cable on the
infrared Emitter into the other OUT jack on the Connecting B ock.

See Figure 2. HK-Receiver
Power HE1 000A
Supply Remote Eye

GEES.

Connecting Block

One-Foot Cable

Figure 2
Position the emitter over the remote control sensor window on any
of these additional components (audio or video unit). Peel off the
paper backing to expose the clear adjesive. The clear adhesive film
will hold it in place. Spare adhesive is enclosed for future use.

Patch Cord


I nfrared
Emitter

4. Plug the Power Supply into the PWR jack on the Connecting Block.
Plug the Power Supply into an unswitched AC outlet.

Operation

Use the Reomote Eye as you would use the remote sensor window on
any audio or video component. Simply point the handheld remote con-
trol at the Remote Eye and press the proper button. The Remote Eye
dose not change the way your remote controls work. The maximum
operating distance between the remote control and the Remote Eye will
be different for each remote control and will be different than the range
of the remote control when pointed directly at the audio or video
component.

HK-Cassettendeck

How to avoid Problems

In rare cases. the location of the HE1000A Remote Eye may have to be
changed if it is on top off or near a TV set and if TV set is causing enough
interference to prevent the HE1000A system from working. You can
confirm this by turning the TV set off and checking for operation.
Similarly. compact fluorescent lamps and other lighting may also cause
interference. Confirm this in the same way by turning them off. It may
then be necessary to change the location of the lamps or the HE1000A
Remote Eye.

HK-Cassette Deck
