Page 1
ENGLISH
1
H
a
r
m
a
n
K
a
r
d
o
n
F
L
8
3
0
0

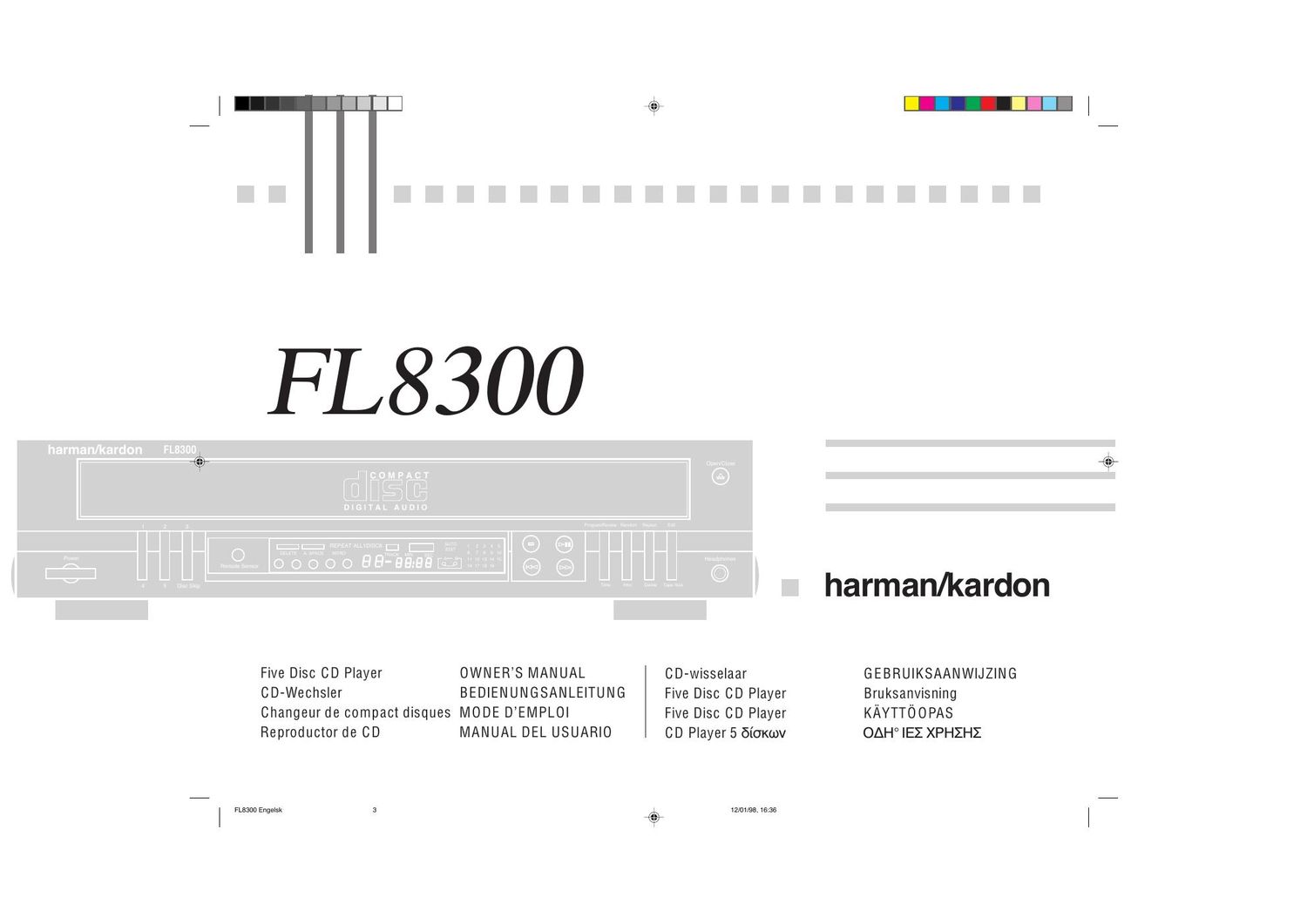

Harman Kardon FL8300 Date of purchase _________________________________ Purchased from __________________________________ Address of business purchased from __________________ _______________________________________________ Installed by ______________________________________ Date of installation ________________________________ Serial No. _______________________________________
C
A
U
T
I
O
N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated "dangerous voltage" within
the product's enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions
in
the
literature
accompanying the appliance.
C
A
U
T
IO
N
CLASS 1
LASER PRODUCT
CAUTION: TO PREVENT
ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO
WIDE SLOT, FULLY INSERT.
ATTENTION: POUR EVITER LES
CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER
JUSQU'AU FOND.
UNPACKING AND
INSTALLATION
Congratulations on Your Purchase!
Your new high-fidelity 5 Disc CD
Changer is designed to deliver
maximum enjoyment and years of
trouble-free service.
Please take a few moments to read
this manual thoroughly. It will
explain the features and operation of
your
5 Disc CD Changer and help to
ensure a trouble-free installation.
Please unpack your 5 Disc CD
Changer carefully. We recommend
that you save the carton and packing
material. They will be helpful if you
ever need to move your unit and
may be required if you ever need to
return it for service.
Your 5 Disc CD Changer is designed
to be placed in a horizontal position
and it is important to allow at least
two inches of space behind your unit
for adequate ventilation and cabling
convenience. To avoid early
damage, never place the unit near
radiators, in front of heating vents, in
direct sunlight, or in excessively
humid or dusty locations.
Connect your complementary
components as illustrated in the
following section.
CLASS 1 LASER PRODUCT
CAUTION: Invisible laser radiation
when the unit is open. Do not stare
into the beam.
CAUTION: USE OF ANY
CONTROLS, ADJUSTMENT OR
PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS
RADIATION EXPOSURE.
FL8300 Engelsk
12/01/98, 16:36
4
Page 2
ENGLISH
Labeled surface Recorded surface
2
O
p
e
r
a
t
in
g
I
n
s
t
r
u
c
t
io
n
s
F
L
8
3
0
0
F
iv
e
D
is
c
C
D
C
h
a
n
g
e
r
CONCERNING COMPACT DISCS
- Only Compact discs bearing this
mark can be reproduced. No other
discs can be reproduced.
You can also play an 8cm CD on the
inside circle of the tray. Do not put a
normal CD over it.
C O M P A C T
D I G I T A L A U D I O
TABLE OF CONTENTS
Operating Instructions............................................................................. 2
Rear Panel Connections.......................................................................... 4
Front Panel Controls................................................................................ 5
Operations............................................................................................... 7
Remote Controls.................................................................................... 13
Troubleshooting..................................................................................... 15
Specifications........................................................................................ 16
- Always place the compact disc in
the disc tray with the labelled side
up (compact discs can be played
only on one side).
- To remove a disc from its storage
case, press down on the center of
the case and lift the disc out of the
case, holding it carefully with the
edges.
- Fingermarks and dust should be
carefully wiped off the discs
recorded surface with a soft cloth.
Unlike conventional records, the
compact disc has no grooves to
collect dust and microscopic debris.
Gentle wiping with a soft cloth will
remove most particles completely.
Wipe straight from the inside to the
outside of the disc. Small dust
particles and light stains will have
absolutely no effect on sound
reproduction quality.
- Never use such chemicals as
record sprays, antistatic sprays or
fluid, benzine or thinner to clean
compact discs. Such chemicals
could damage the discs plastic
surface irreparably.
- Discs should be stored in their
cases after use to avoid serious
scratches that could cause the laser
pickup to skip.
- Dont expose the discs to direct
sunlight or high humidity or
temperature for extended periods.
Long exposure to high temperatures
can warp the disc.
- Dont stick paper or write anything
with a ball-point pen on the surface
of the labelled side.
Labelled surface
FL8300 Engelsk
12/01/98, 16:36
5
