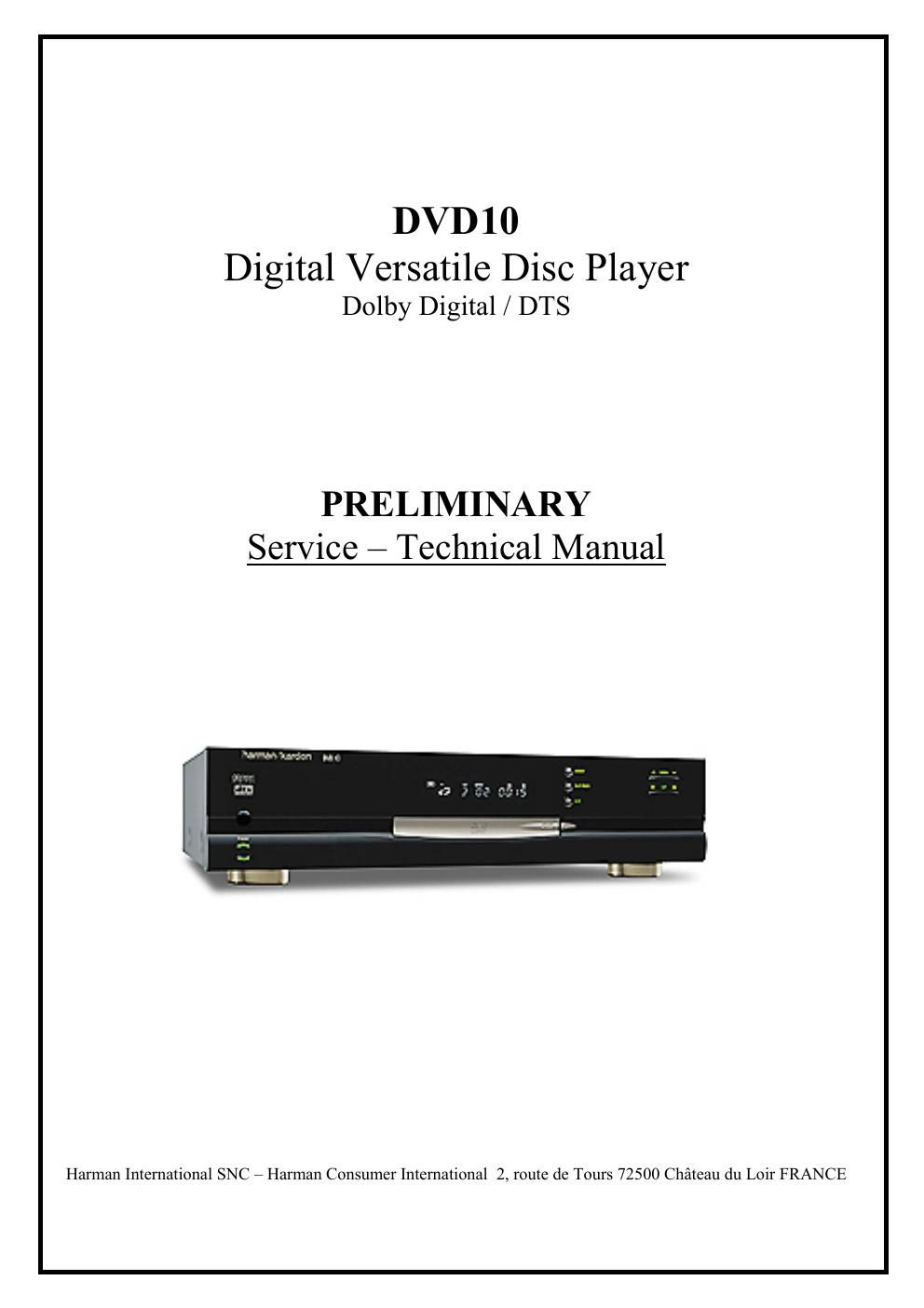

DVD10
Digital Versatile Disc Player
Dolby Digital / DTS
PRELIMINARY
Service - Technical Manual
Hartman International SNC 7 Harman Consumer International 2, route de Tours 72500 Chateau du Loir FRANCE
Features
DVD: a completely new dimension in video entertainment
' Subtitles may be displayed in one of a maximum of 32 languages*.
- The multi-angle function allows you to choose the viewing angle of
scenes which were shot from a number of different angles (Limited to
DVD recorded with multiple camera angles.)
0 Advanced sophisticated 10-bit MPEG-2 video decoding circuits.
' Direct RGB output via SCART for optimum video performance.
- Second SCART connector for throughput of VCR or other video source
to TVs with only one SCART input.
' Dual-layer compatibility for extended play DVD.
* The number of languages recorded depends on the
software.
High quality digital audio
- By connecting a DTS (Digital Theater Systems) or a Dolby Digital
decoder, you can enjoy high quality 5.1 digital surround sound from
DTS or Dolby Digital discs.
0 With linear PCM audio at 16-24 bits and 44-96 kHz (not on digital
output, see table page 13), audio quality exceeding that of CD
becomes possible.
Many convenient features
- On-Screen Menu icons for disc information or player information and
access to many major functions of this unit.
' Programming of up to 9 scenes in memory (markers)
0 Parental lock settings to prevent play of discs unsuitable for some
audiences [DVD only]
- Intuitive menu operating system.
0 Separate Buttons for convenient Fast Forward/Fast Reverse Search and
Track Skip.
Compatible with CD as well as DVD.
I The DVD10 will play any conventional Audio CD or erasable CD (CD-
RW), bearing the logos as shown below as well as any DVD with the
region code 0 or 2.
Disc formats supported by this player
The unit can play discs bearing any of the following marks:
@HC§@ COMPACT dlcogfi
%U DIEIIALAUDIO
DIGITAL AUDIO _"rlma- m
CD-RW
3" (8 cm) disc 3" (8 cm) disc 5" (12 cm) disc
5" (12 cm) disc 5" (12 cm) disc
Accessories
Remote control unit
Batteries for remote control unit (size "AA)
Video/Audio Cable
Optional Accessories
S-Video Cable
Optical Digital Audio Cable
Coaxial Digital Audio Cable
Declaration of Conformity
CE
We, Harman Consumer International
2, route de Tours
72500 Chateau-du-Loir,
FRANCE
declare in own responsibility, that the product described in
this owner's manual is in compliance with technical
standards:
EN 60 065:1993
EN 55 013/A12/8.1994
EN 55 020/12.1994
EN 61000-3-2/4.l995
EN 61000-3»3/l.1995
Wu
Carsten Olesen
Harman Kardon Europe
01/01
