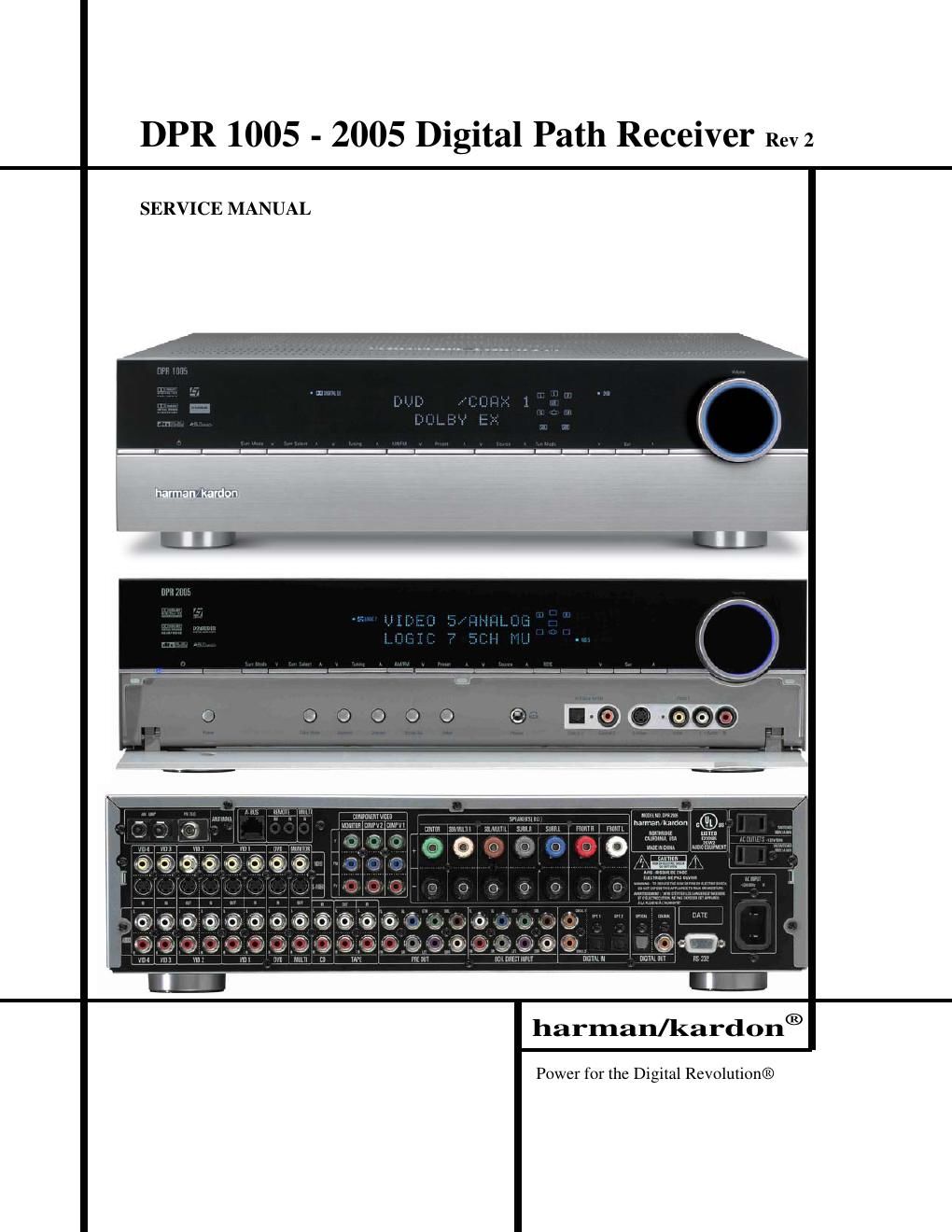

Page 1
DPR 1005 - 2005 Digital Path Receiver Rev2
SERVICE MANUAL
WMR-fi
harmamkardon
Power for the Digital Revolution®
Page 2
DPR2005/230
Technical Specifications
Audio Section
Stereo Mode
Continuous Average Power (FTC)
120 Watts per channel, ZOHz-ZOkHz,
@ < 0.15% THD, both channels driven into 8 ohms
5/7 Channel Surround Modes
Power Per Individual Channel
Front I.&R channels:
120 Watts per channel,
@ < 0.15% THD, 20Hz-20kHz into 8 ohms
Center channel:
120 Watts, @ < 0.15% THD, ZOHz-ZOkHz into 8 ohms
Surround (L & R Side, L & R Back) channels:
120 Watts per channel,
@ < 0.15% THD, 20Hz-20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signal-to-Noise Ratio (IHF-A) 97dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB
(Pro Logic, etc.)
Dolby Digital (AC-3) SSdB
DTS SSdB
FM Tuner Section
Frequency Range 87.5-108MH2
Usable Sensitivity IHF 1.3 pV/13.2dBf
Signal-to-Noise Ratio Mono/Stereo: 70/68dB (DIN)
Distortion Mono/Stereo: 0.2/0.3%
Stereo Separation 40dB @ IkHz
Selectivity :400kHz: 70dB
Image Rejection 80dB
IF Rejection 90dB
AM Tuner Section
Frequency Range 520-1710kHz
Signal-to-Noise Ratio 45dB
Usable Sensitivity Loop: 500 W
Distortion 1kHz, 50% Mod: 0.8%
Selectivity :IOkHz: 30dB
Video Section
Video Format PAL/NTSC
Input Level/Impedance 1Vp-p/75 ohms
Output Level/Impedance 1Vp-p/75 ohms
Video Frequency Response
(Composite and S-Video) 10Hz-8MHz (-3dB)
Video Frequency
Response (Component) 10Hz-50MHZ(-3dB)
General
Power Requirement AC 220-240V/50Hz
Power Consumption 59W idle, 1073W maximum
(7 channels driven)
Dimensions (Max)
Width 440mm
Height 1 14mm
Depth 476mm
Weight 10.5 kg
Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.
All features and specifications are subject to change without notice.
Harman Kardon and Power for the Digital Revolution are registered trademarks of
Harman International Industries, Incorporated.
llllEzSet is a trademark of Harman International Industries, Inc.
(Patent No. 5,386,478).
Manufactured under license from Dolby Laboratories.
"Dolby," Pro Logic," "Pro Logic II" and the DoublerD symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
Works. (9199271999 Dolby Laboratories, |nc.AlI rights reserved.
DTS and DTS Surround, DTSVES and DTS Neoz6 are trademarks of Digital Theater Systems, Inc.
VMAx is a trademark of Harman International Industries, Inc., and is an
implementation of Cooper Bauck Transaural Stereo under patent license.
Logic 7 is a registered trademark of Harman International Industries, Incorporated.
HDCD is a registered trademark of Pacific Microsonics, Inc.
AVBUS and ArBUS Ready are registered trademarks of Leisure Tech Electronics Pty Ltd Australia,
"Without input anti slewing and output isolation networks.
TiVo is a registered trademark of TiVo, Inc.
ReplayTV is a registered trademark of Digital Networks North America, Inc.
TECHNICAL SPECIFICATIONS
