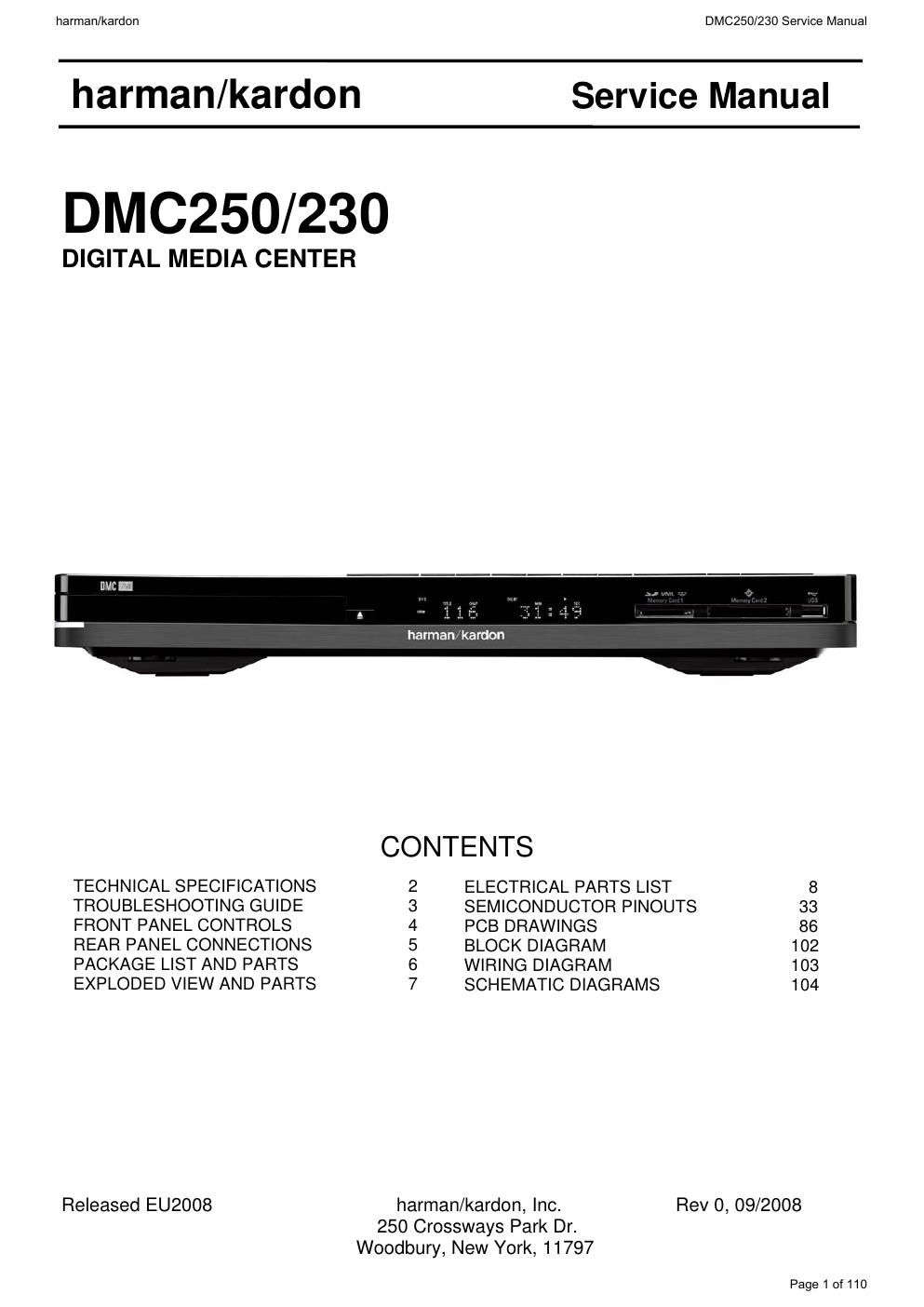

Page 1
harman/kardon DMCZSO/ZSO Service Manual
harman/kardon Service Manual
DMC250/23O
DIGITAL MEDIA CENTER
CONTE NTS
TECHNICAL SPECIFICATIONS 2 ELECTRICAL PARTS LIST 8
TROUBLESHOOTING GUIDE 3 SEMICONDUCTOR PINOUTS 33
FRONT PANEL CONTROLS 4 PCB DRAWINGS 86
REAR PANEL CONNECTIONS 5 BLOCK DIAGRAM 102
PACKAGE LIST AND PARTS 6 WIRING DIAGRAM 103
EXPLODED VIEW AND PARTS 7 SCHEMATIC DIAGRAMS 104
Released EU2008 harman/kardon, Inc. Rev 0, 09/2008
250 Crossways Park Dr.
Woodbury, New York, 11797
Page1of110
Page 2
harman/kardon
DMC250/230 Service ManuJ
Technical Specifications
Applicable Disc:
Memon/ cards
USB Port:
Video Signal System:
HDMI" Output:
Composite Video Output:
5 Video Output:
Component Video Output:
Analog Audio Output:
Frequency Response:
Signal/Noise Ratio (SNR):
Dynamic Range:
THD/1kHz:
Wow & Flutter:
AC Power:
Power Consumption:
Dimensions (WxHxD):
Weight:
Disc formats: 5 inch (1 2 cm) or 3 inch (8 cm) DVD Video, DVD-Audio, Standard conforming DVD+RW, DVD+R, DVD-R,
DVD-RW, DivX, VCD, CD, CD-R, MP3, WMA, JPEG or CD-RW discs,
Region code: DVD Movie disc with Code 2 or 0 only.
DVD»Layers: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Single Layer, Dual Side/Dual Layer
Audio formats: DVD-Audio MLP Iossless, Linear PCM, MPEG, Windows Media® 9,
Dolby Digital or DTS Audio discs
Still»image format: JPEG
Slot 1: Secure Digital (SD), Multimedia Card (MMC) and Memory Stick (compatible with Magic Gate) cards. Other card
types may be used with a compatible adapter, but are not guaranteed to be recognized by the DMC 250 Slot 2: Compact
Flash I (CF) cards, or cards using a Compact Flash I-compatible adapter Card Capacity: Up to 1 GB
Up to USB 2.0-compatible solid-state flash drives
PAL/NTSC
Video: 576p, 720p, 1080i, 1080p
HDMI Version 1.2a-compliant
HDCP Version 1.1-compliant
1 Vprp/75 Ohms, sync negative polarity
Y/Luminance: I Vim/75 Ohms, sync negative polarity
C/Chrominance: 0.286 Vprp
Y: 1 Vprp/75 Ohms, sync negative polarity
Cr: 0.7 Vprp/75 Ohms
Cb: 0.7 Vprp/75 Ohms
ZVrms max
DVD (Linear PCM): 2Hz - ZZkHz (48kHz sampling)
2Hz - 44kHz (96kHz sampling)
CD: 2Hz - ZOkHz
105 dB (A-weighted)
DVD: IOOdB (18 Bit)/ IOSdB (20 Bit)
CD/DVD: 96dB (16 Bit)
DVD/CD: 0.0025 %
Below Measurable Limits
100 - 240 V/50 ~ 60 Hz
1 Watts (Standby)/13 Watts (Max)
440 x 50 x 385 mm
4.0 kg
Depth measurement includes knobs and connectors.
Height measurement includes feet and chassis.
All specifications subject to change without notice.
Harman Kardon and Logic 7 are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries.
Designed to Entertain and Guide+Play are trademark of Harman international Industries, Incorporated.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Digital, ProLogic and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under license under US. Patent #1: 5,451,942 84 other US. and worldwide patents issued & pending. DTS and DTS Digital Out are registered
trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
Microsoft, Windows and WMA are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Kodak is a registered trademark, and Photo CD is a trademark, of Eastman Kodak Company.
DivX, DivX Certified, and associated logos are trademarks of DivX Networks, Inc and are used under license.
Memon/ Stick, MagicGate, Memory Stick Duo and SACD are trademarks or registered trademarks of Sony Corporation.
CompactFlash is a trademark of the CompactFlash Association.
Guide + Play is a trademark of Harman International Industries, Incorporated.
The SD logo is a trademark. This product incorporates copyright protection technology that is protected by method claims of certain US. patents and other
intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
ENGLISH
TECHNICAL SPECIFICATIONS 35
Page20f110
