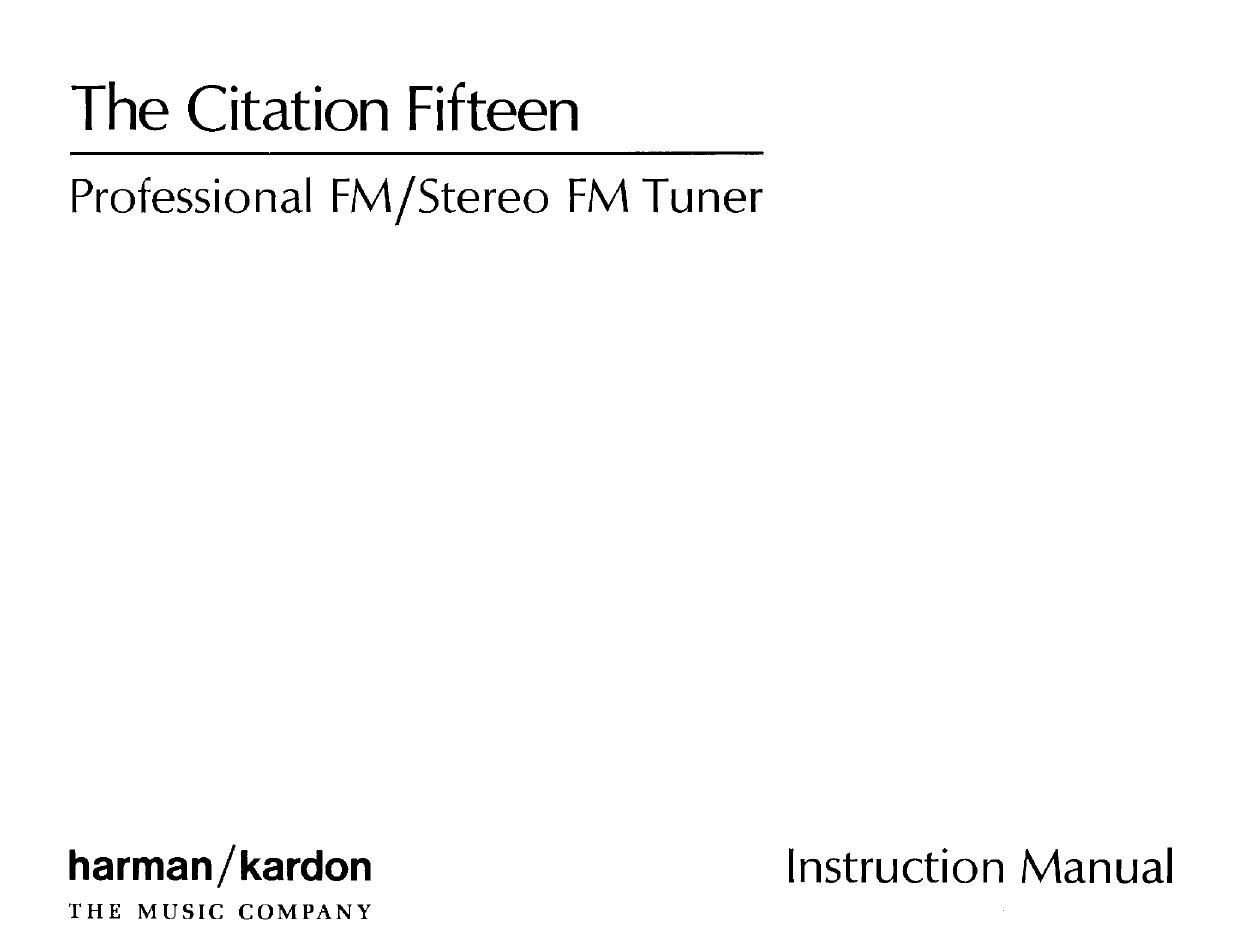

The Citation Fifteen
Professional FM /Stereo FM Tuner
harman/kardon Instruction Manual
THE MUSIC COMPANY
Page 2
TABLE OF CONTENTS
PACP
Introduction .............................................. 2
Outstanding Features ...................................... 2
Warranty Policy ........................................... 3
Unpacking .................................................. 3
Service ..................................................... 3
Installation .................................................. 4
Power Requirements .................................... 4
AC Convenience Receptacle .............................. 4
Fuse ................................................... 4
Antenna ............................................... 4
Choice of Transmission Line ............................. 5
Grounding the Antenna .................................. 5
Output Connections ......................................... 5
Variable Output [L & R] ................................. 5
Fixed Output ........................................... B
To Quad Decoder ....................................... 8
Tape Out ............................................... 8
Dolby NR .............................................. 8
PAGE
Description of Controls ....................................... 8
Power Switch ........................................... 8
Gain Controls [L & R] .................................... 8
Stereo Indicator ......................................... 8
Stereo Automatic/Monophonic Switch .................... 8
Stereo Threshold Control ................................ 8
Ext. Dolby NR Switch ................................. 9
Stereo Noise Filter Switch ................................ 9
Mute Switch ............................................ 9
Muting Threshold Control ................................ 9
Level Set Tone Switch ................................... 9
Dial Scale . . J ............................................... 9
Tuning Meter ............................................... 10
Quieting Meter .............................................. 10
Antenna Orientation ......................................... 10
Multipath ................................................... 10
Tuning Weak Stations ..............
Tuning Mechanism ........................................... 11
LIST OF ILLUSTRATIONS
Rear Panel ....................
Front Panel ....................
Quieting Meter .................
............................ 10
