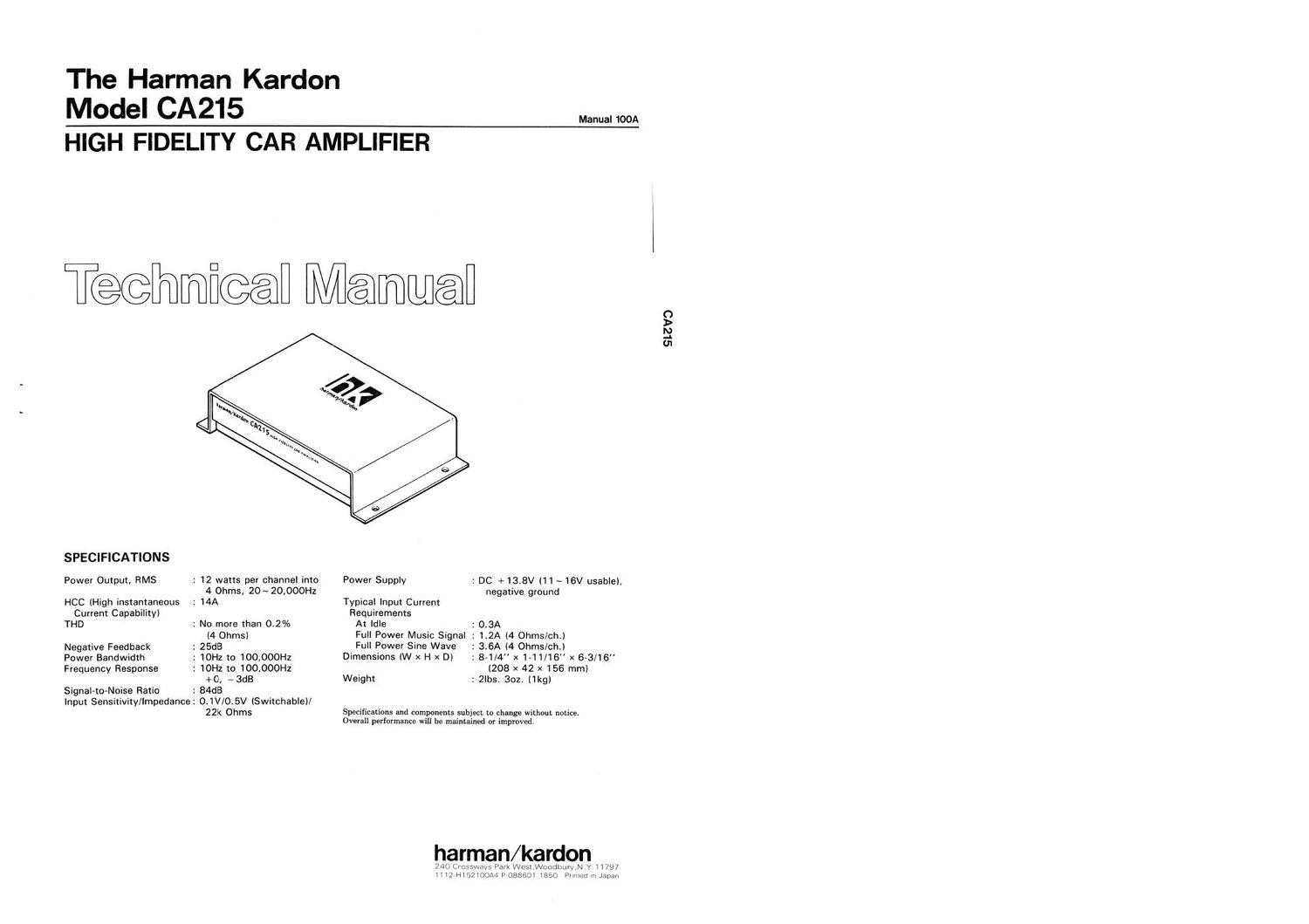

The Harman Kardon
Madel CA215 Manual 100A
HIGH FIDELITY CAR AMPLIFIER

T

SPECIFICATIONS
Power Output, RMS : 12 watts per channel into Power Supply : DC +13.8V (11 ~ 16V usable),
4 Ohms, 20~20,000Hz negative ground
HCC (High instantaneous : 14A Typical Input Current
Current Capability) Requirements
THD : No more than 0.2% At Idle : 0.3A
(4 Ohms) Full Power Music Signal : 1.2A (4 Ohms/ch.)
Negative Feedback : 25dB Full Power Sine Wave : 3.6A (4 Ohms/ch.)
Power Bandwidth : 10Hz to 100,000Hz Dimensions (W x H x D) 2 8-1/4" x 1-11/16" x 6-3/16
Frequency Response : 10Hz to 100,000Hz (208 x 42 x 156 mm)
+0, -3dB Weight : 2|bs. 302. (1kg)
Signa|»to»Noise Ratio : 84dB
Input Sensitivity/Impedance: O.1V/O.5V (Switchablel/
22k Ohms Specifications and components subject to change without, notice.

Overall performance will be maintained or improved.

harman/kardon

240 Crossways Park WeSI.WOOdbuiy.N Y 11797
I l l? H152l00A4 P 088601 TSEO Primed in Japan

QLZVO

Page 2

CA215

CA215

DISASSEMBLY PROCEDURES (REFER TO THE FOLLOWING FIGURE)

m CABINET (131) REMOVAL
Remove 5 screws 9 and then remove the Cabinet
(131).

E MAIN P. 0. BOARD (PCB-1) REMOVAL

1. Remove the Cabinet (131), referring to the previous

E! INPUT JACK P. C. BOARD (PCB-2) REMOVAL

1. Remove the Main P. C. Board (PCB-1), referring to
the previous step E].

2. Remove 3 screws 0 and then remove the Input Jack
P. C. Board (PCB-2). If necessary, unsolder the lead

wires.
step I.
2. Remove 4 screws 13 and then remove the Main P. C.
Board (PCB-1i with the Heat Sinks (137i. If necessary,
unsolder the lead wires.
GENERAL UNIT EXPLODED VIEW
A l a | c D
'l
2
3
4
PARTS LIST
Ref. No. Part No. Description Ref. No. Part No. Description
131 1414-06001 Cabinei 23107034 Mounting Screws and Washers
132 1424-17001 Cabinei Bouom (1 Se!) iAccessoryi
137 2222-7191 Heat Sink 12217717182 Packing Box
139 2240-7224 Holder 1222-7285 Packing Cushion, Len
140 2240-7225 Holder 1222-7286 Packing Cushion, Right
141 22407120 Holder
143 2132-7141 Spacer
144 2132-7119 Spacer
147 234773006K7 Screw 13 x 6mm]
149 234773010 Screw 13 x 10mm]
151 23407003 Special Screw 13 x 8mm! 0v USA. model
153 2327-2605K9 Screw (2.6 x 5mml @ General modei
1i11-J30227 Owner Guide 0 1 The pan With the above mark IS used only in rhe model made
1111430228 owner Guide GB for the particular market the mark indicates.
