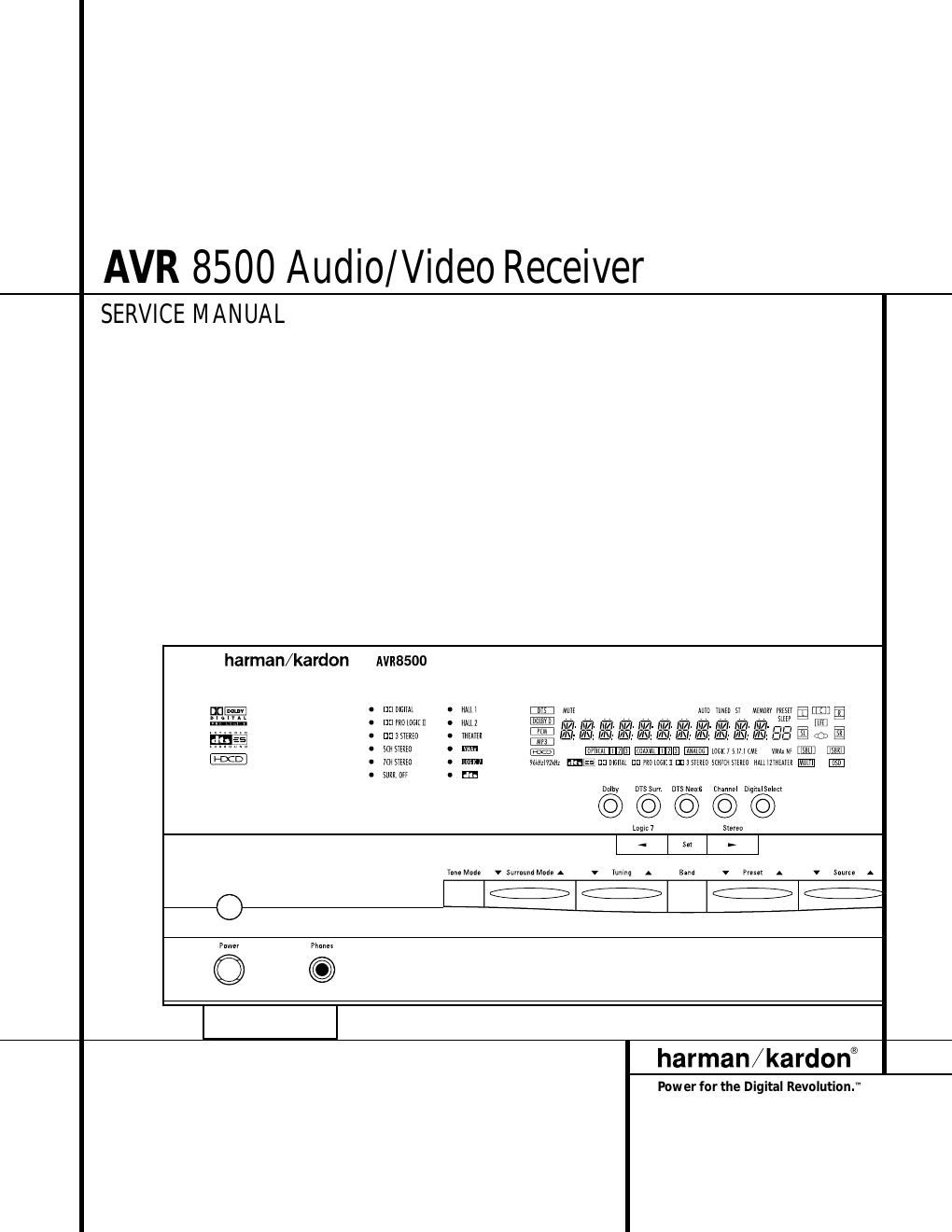

Harman kardon avr 8500 rds service manual

Page 2

Technical Specifications

Audio Section
Stereo Mode
Continuous Average Power (FTC)

125 Watts per channel, 20Hz-20kI-Iz,
@ < 0.07% THD, both channels driven into 8 ohms

Five-Channel Surround Modes
Power Per Individual Channel

Front L&R channels:
110Watts per channel,
@ < 0.07% THD, 20Hz-20kHz into 8 ohms

Center channel:
110Watts, @ < 0.07% THD, 20Hz-20kHz into 8 ohms

Surround channels:

110 Watts per channel,

@ < 0.07% THD, 20Hz-20kHz Into 8 ohms
Input Sensitivity/Impedance

Linear (High Level) 200mV/47k0hms
Signal-to-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation

Analog Decoding 40dB

(Pro Logic, etc.)

Dolby Digital (AC-3) SSdB

DTS SSdB

Frequency Response
@ 1W (+0dB, -3dB) 10Hz-100kHz

High Instantaneous

CurrentCapability(HCC) :85 Amps
Transient Intermodulation

Distortion (TIM) Unmeasurable
Rise Time 16 usec

Slew Rate 40V/psec

FM Tuner Section

Frequency Range 87.5-108MH2

Usable Sensitivity IHF 1.3 pV/13.2dBf
Signal-to-Noise Ratio Mono/Stereo: 70/65dB (DIN)
Distortion Mono/Stereo: 0.15/0.3%
Stereo Separation 35dB @ IkHz

Selectivity :300kHz: 65dB

Image Rejection 80dB

IF Rejection 90dB

AM Tuner Section

Frequency Range 522-1611kI-Iz
Signal»to-Noise Ratio 45dB

Usable Sensitivity Loop: 500 W
Distortion IkHz, 50% Mod: 0.8%
Selectivity :9kHz: 30dB

Video Section
Video Format PAL/NTSC
Input Level/Impedance 1Vp»p/75 ohms
Output Level/Impedance 1Vp-p/75 ohms
Video Frequency Response
(Composite and S»Video) 10Hz-8MHz (-3dB)
Video Frequency
Response (Component) 10Hz-35MHZ (-3dB)

General
Power Requirement
Power Consumption

AC 220-240V/50Hz
119W Idle, 694W maximum
(Z-channel driven)

Trigger Output 6V DC @ SOOmA
Dimensions (Max)

Width 440mm

Height 196mm

Depth 519mm

Weight 24.1 kg

Depth measurement includes knobs, buttons and terminal connections.
Height measurement includes feet and chassis.

All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the digital revolution is a
trademark, of Harman International Industries, Inc.

IIIIEISet is a trademark of Harman International Industries, Inc.
(Patent No. 5,386,478).

*Manufactured under license from Dolby Laboratories.

Dolby," Pro Logic," "Pro Logic II" and the Double-D symbol are
trademarks of Dolby Laboratories. Confidential Unpublished
Works. (9199271999 Dolby Laboratories, Inc. All rights reserved.

DTS and DTS Surround, DTS-ES and DTS Neo:6 are trademarks of Digital Theater
Systems, Inc.

THX and THX Ultra are manufactured under license from Lucasfilm Ltd., LucastiIm,
THX and THX Ultra are registered trademarks of Lucasfilm Ltd.

Surround EX is a jointly developed technology of THX and Dolby Laboratories, Inc., and
is a trademark of Dolby. Used under authorization.

VMAx is a trademark of Harman International Industries, Inc., and is an
implementation of Cooper Bauck Transaural Stereo under patent license.

Logic 7 is a registered trademark of Lexicon, Inc.

Crystal is a registered trademark of Cirrus Logic Corp.

HDCD is a registered trademark of Pacific Microsonics, Inc.
Without input anti slewing and output isolation networks.

TECHNICAL SPECIFICATIONS
